35tecsis Operating Instructions - Pressure sensor P3297
BD_BE_BF_BSP 708 c
GB

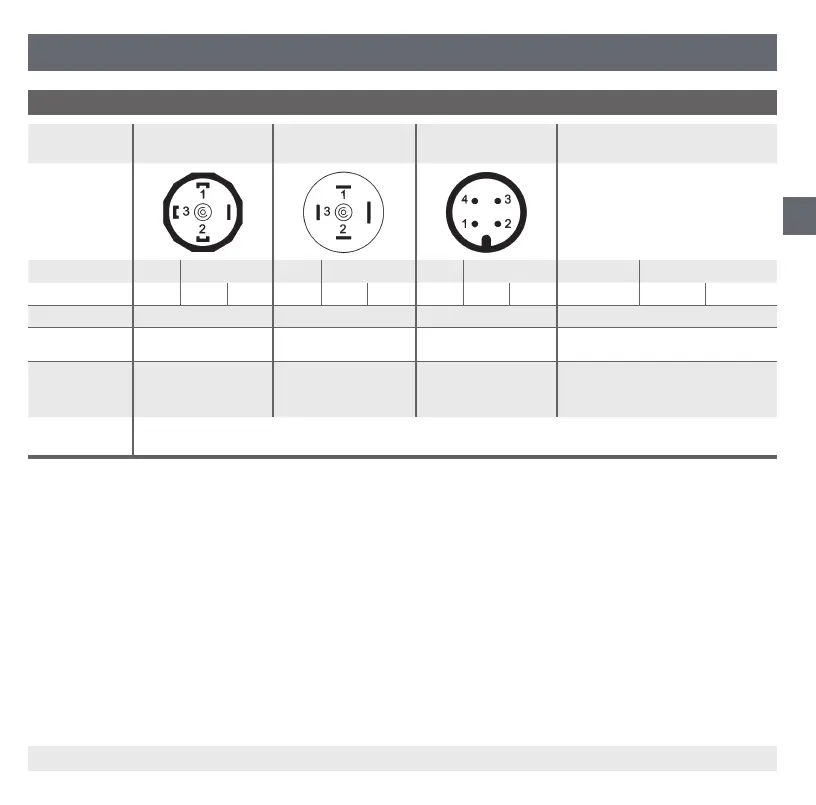

Electrical connections
Angular connector
DIN 175301-803 A
Angular connector
DIN 175301-803 C
Circular connector
M12x1, 4-pin
Cable outlet
(PUR, unshielded)
2-wire UB = 1 0V = 2 UB = 1 0V = 2 UB = 1 0V = 3 UB = brown 0V = blue
3-wire UB = 1 0V = 2 S+ = 3 UB = 1 0V = 2 S+ = 3 UB = 1 0V = 3 S+ = 4 UB = brown 0V = blue S+ = black
Wire gauge up to max. 1.5 mm
2
up to max. 0.75 mm
2
- 3 x 0.34 mm
2
Diameter of
cable
6-8 mm 4.5-6 mm - 4 mm
Ingress protec-
tion per
IEC 60 529
IP 65 IP 65 IP 67 IP 67
The stated ingress protection only applies when plugged in using mating
connectors that have the appropriate ingress protection.
