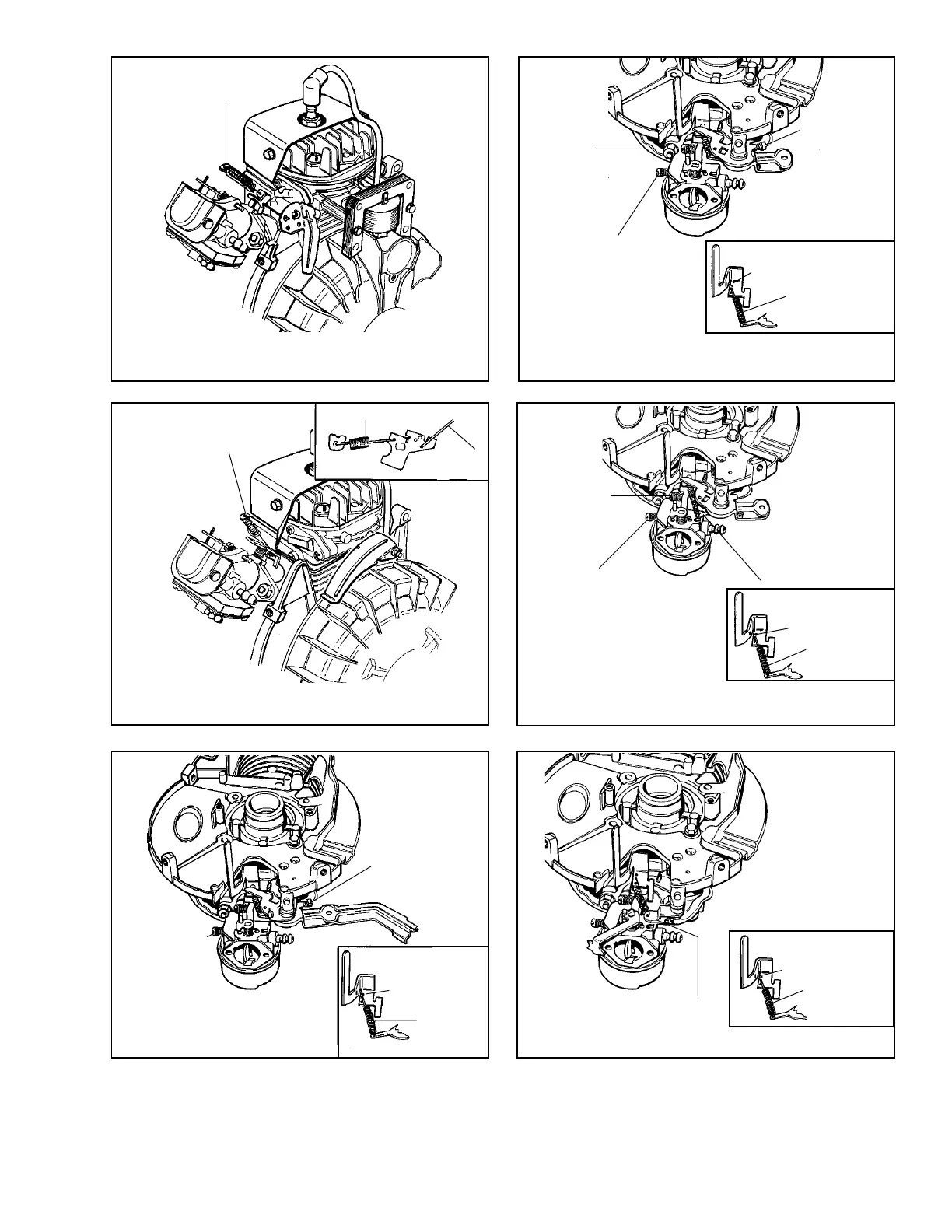

Tecumseh AH600 - ENGINE SPEED ADJUSTMENT; HORIZONTAL AND VERTICAL ENGINE ADJUSTMENTS

19
HORIZONTAL FIXED SPEED
VERTICAL ENGINE
FIXED SPEED-REMOTE CONTROL
VERTICAL ENGINE
VARIABLE SPEED-REMOTE CONTROL
HORIZONTAL FIXED SPEED
(ALUMINUM AIR VANE GOVERNOR)
ADJUST RPM BY
LOOSENING SCREW AND
SLIDING BRACKET
ADJUST RPM BY
LOOSENING SCREW AND
SLIDING BRACKET
SPRING
IDLE RPM
ADJUSTMENTS
HIGH SPEED RPM
ADJUSTMENT
THIS HOLE NOT
PRESENT ON
ALL MODELS
SPRING
VERTICAL ENGINE
VARIABLE SPEED
MANUAL CONTROL
IDLE RPM
ADJUSTMENT
THIS HOLE NOT
PRESENT ON ALL
MODELS
SPRING
GOVERNOR
LINK
RPM ADJUSTMENT
THIS HOLE NOT
PRESENT ON ALL
MODELS
SPRING
VERTICAL ENGINE FIXED SPEED
THIS HOLE NOT
PRESENT ON ALL
MODELS
HIGH SPEED
RPM
ADJUSTMENT
IDLE
MIXTURE
IDLE
MIXTURE
IDLE RPM
ADJUSTMENT
Ó INCREASE
È DECREASE
Ó INCREASE
È DECREASE
