17
DISASSEMBLY PROCEDURE
NOTE: Engines which are identified as compliant with CARB (California Air Resources Board) or EPA (US
Environmental Protection Agency) regulations can NOT be changed from the factory unless specifically authorized.
FLOAT STYLE CARBURETORS
LONG END
OF CLIP
CLIP
OPEN END
OF CLIP
THROTTLE
END
CHOKE
END
28
30
29

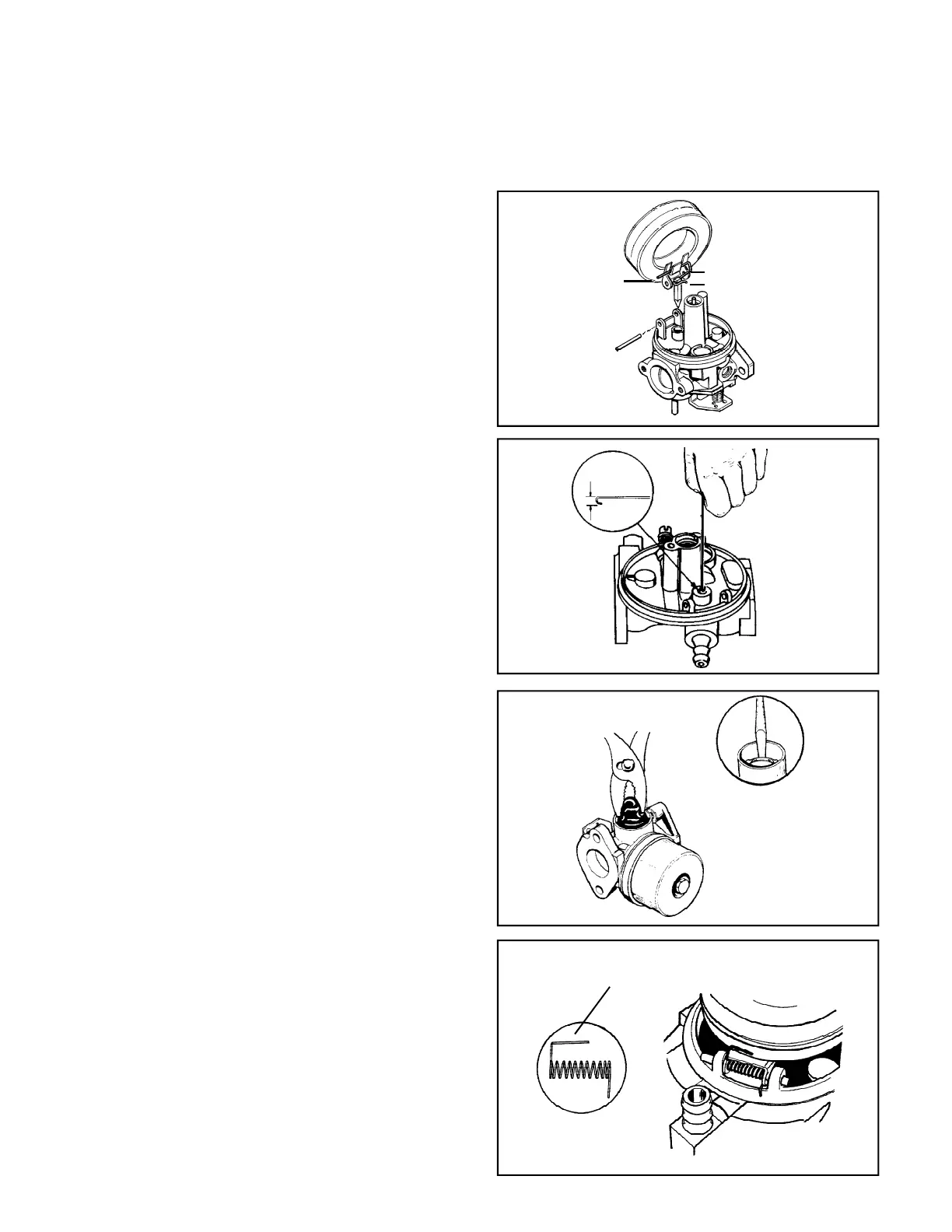

1. Note or mark the high and low mixture adjusting screws
to aid in reassembly (if applicable). Remove the high
speed adjusting screw, bowl nut, and float bowl.
Remove the idle mixture screw assembly.
2. Note the position of the spring clip on the inlet needle
and float, the long end of the clip must face toward the
choke end of the carburetor. Remove the float hinge
pin with a needlenose pliers. Some carburetors use a
float dampening spring to aid the inlet valve in
maintaining a steady position during rough service
applications. Note the position of the hooks before
removing the float hinge pin (diag. 28).
3. Remove the float, clip, and inlet needle.
4. Remove the inlet needle seat using a #4 crochet hook,
a wire or paper clip with a 3/32" (2.38 mm) hook end
as shown. Push the hook through the hole in the
center of the seat to remove it. (diag. 29).
5. Note or mark the action of the choke and throttle
shutters, and/or the hook points of the choke or throttle
return spring, or seal retainer springs located on the
top of the choke and/or throttle shaft. Remove the
throttle shutter, throttle shaft, choke shutter, springs
and choke shaft by removing the screw(s) that attach
the throttle or choke shutter to the shaft inside the air
horn.
6. Remove the primer bulb (if equipped) by grasping it
with a pliers and pulling and twisting out of the body.
Remove the retainer by prying and lifting it out with a
screwdriver. Do not re-use the old bulb or retainer (diag.
30).
7. Some Tecumseh float style carburetors have a damper
spring which is installed as shown. (diag. 31)
POINTS TOWARD
THE CHOKE END
31
3/32" (2.38 mm)
HOOK END
