18
TYPE II
TYPE II
4-4
4-5

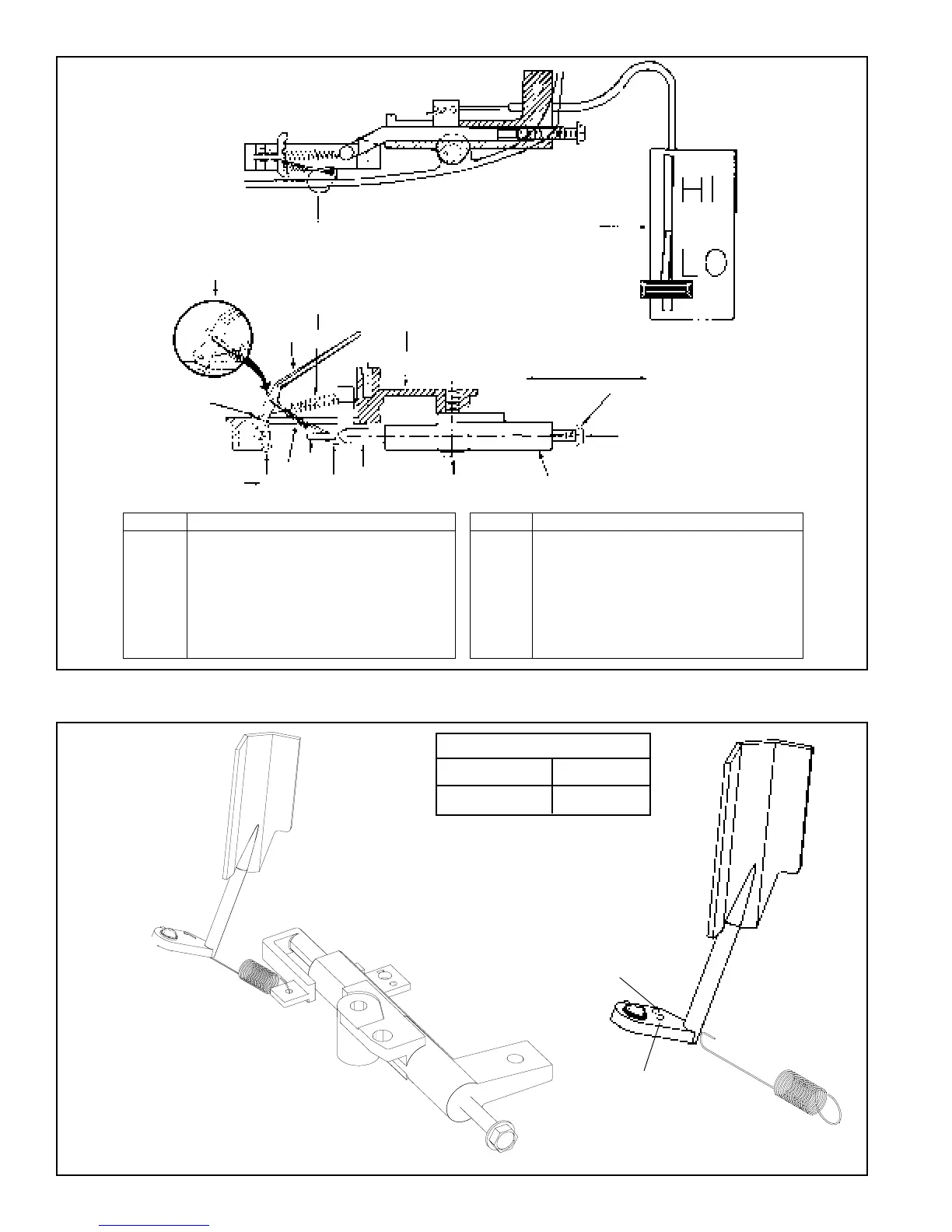

Adjust governed high speed with speed
control plunger pulled back against speed
adjustment screw
Decrease (IN)
Increase (OUT)
Speed Adjusting Screw
Spring Color Spring Position
Orange or Green 1
Pink, Red, or Black 2
Spring Position 1
Spring Position 2
ITEM DESCRIPTION
1 Base - Housing
2 Body Assy. - Speed Control
3 Screw
4 Throttle Plate
5 Air Vane
6 Spring - Backlash
7 Link - Governor
ITEM DESCRIPTION
8 Spring - Governor
9 Clip - Spring
10 Spring and Link Attachment
11 Speed Control Plunger
12 Speed Adjustment Screw
13 Notch in Air Vane for Governor
Spring Attachment
14 Speed Control lever
ADJUST GOVERNED HIGH SPEED WITH SPEED CONTROL PLUNGER
PULLED BACK AGAINST SPEED ADJUSTMENT SCREW
DECREASE
INCREASE
SPEED ADJUST SCREW
AIR VANE MUST ROTATE
FREELY AFTER CLIP
IS INSTALLED
2
6
1
3
5
4
8
7
10
9
14
13
12
11
4
