18

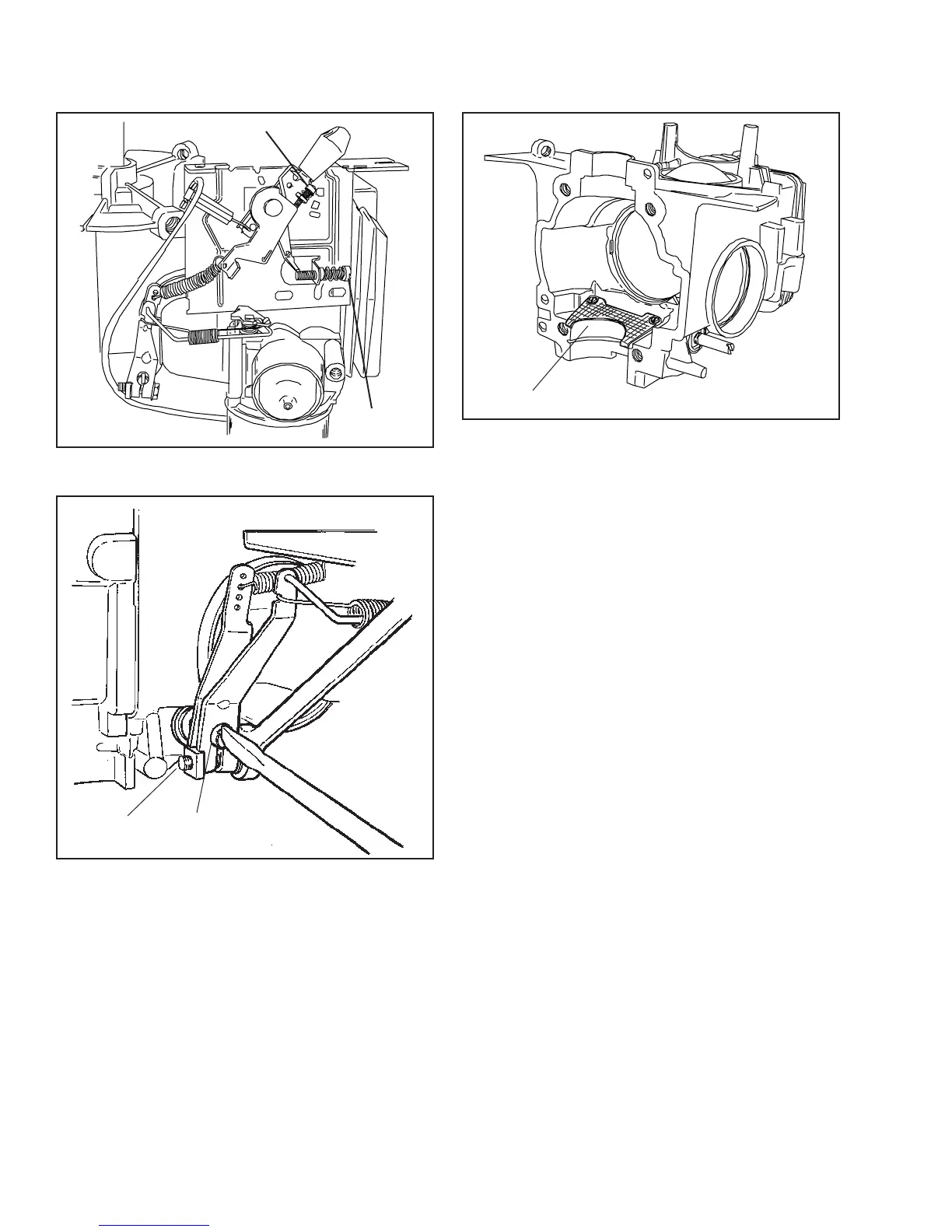

GOVERNOR LINKAGE, AND ADJUSTMENT
LINKAGE LOCATION. To aid in the proper reassembly
of the governor linkage, mark the linkage locations.
GOVERNOR FOLLOWER ARM AND SHAFT
ASSEMBLY. The governor following lever and governor
shaft can be serviced by removing the two screws in
the following lever and shaft. Reassemble the following
lever and governor shaft so that curved end of the
following lever points toward the P.T.O. end of the
engine.
New service screws should be used when the old screws
are removed. The new service screws have a dry
adhesive applied to them to prevent them from coming
loose. This is the same screw that is used on the choke
and throttle plates in the carburetor.
GOVERNOR SHAFT SEAL. The governor shaft seal
may be pressed in until it seats in the boss of the block.
Care should be used when this seal is replaced, forcing
the seal to far into the block will distort the seal and
cause it not to seal the governor shaft.
GOVERNOR FOLLOWER ARM
HOLDING
SCREW
GOVERNOR ADJUSTMENT. To adjust the governor,
move the throttle to the wide open position. Loosen the
holding screw, turn the slotted governor shaft clockwise
as far as it will go without forcing it. Then tighten the
holding screw.
HIGH SPEED
ADJUSTMENT
IDLE SPEED ADJUSTMENT
STATIC GOVERNOR
ADJUSTMENT SCREW
