MODEL XQ140/20 HYDRAULIC POWER TONG OPERATION MANUAL
YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD

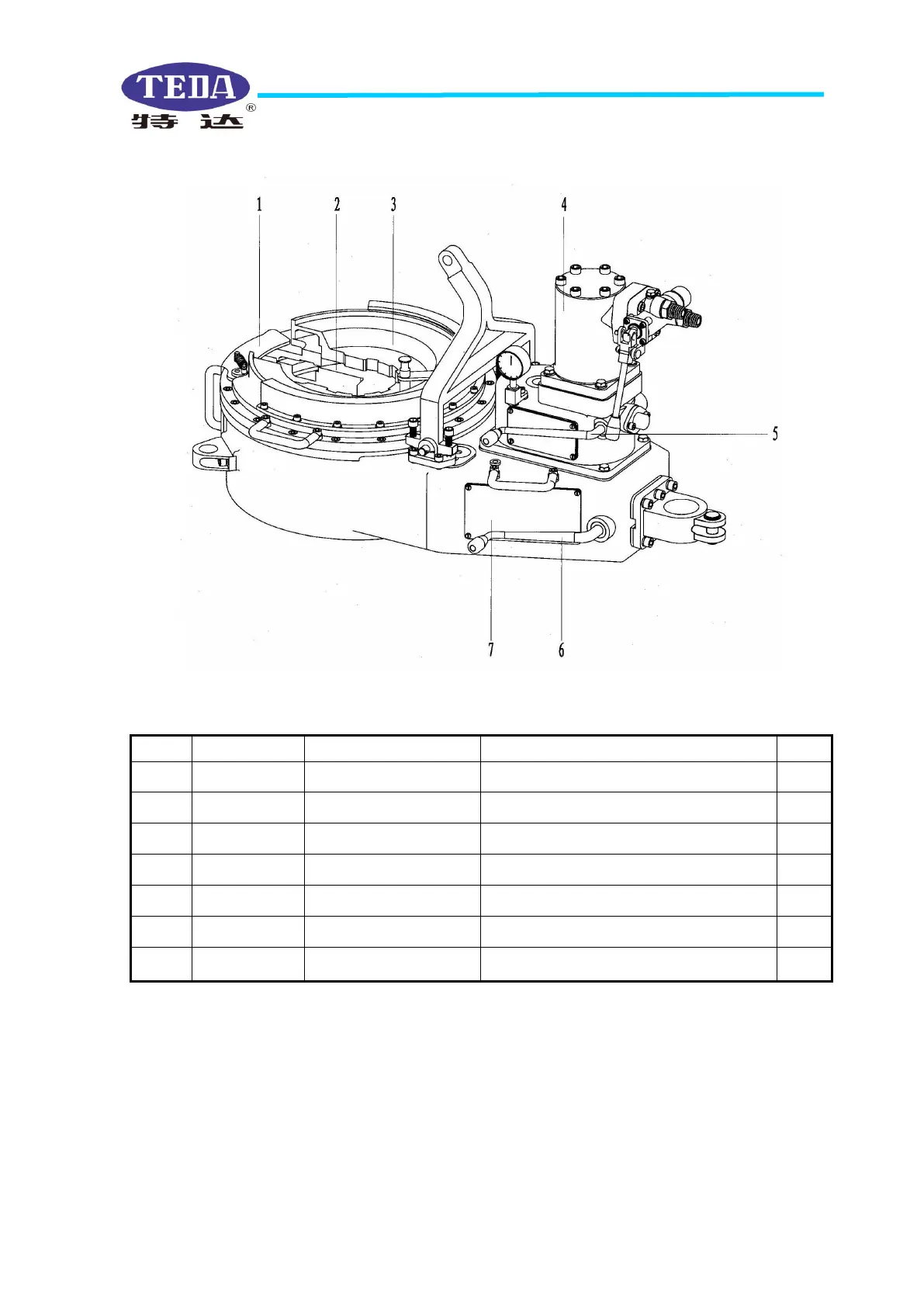

10.2 Master tong and parts list (Fig.10.2, Table 10.2)
Table 10.2 Master tong parts list
NO.
P/N
Parts number
Description
Qty.
1
XQ20-6
XQ20.1.50
Single safety
1
2
XQ20-7
XQ20.1.1
Tong head assembly
1
3
XQ20-8
Braking and centralizing mechanism
1
4
XQ20-9
Hydraulic motor 6K-625
1
5
XQ20-10
XQ20.1.7
Shifting gear assembly (upper)
1
6
XQ20-11
XQ20.1.6
Shifting gear assembly(lower)
1
7
XQ20-12
Transmission mechanism assembly
1
Fig.10.2
