TEDA XQ140 - Xq20-220; Xq20-221; Xq20-222; Xq20-223

MODEL XQ140/20 HYDRAULIC POWER TONG OPERATION MANUAL
YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD

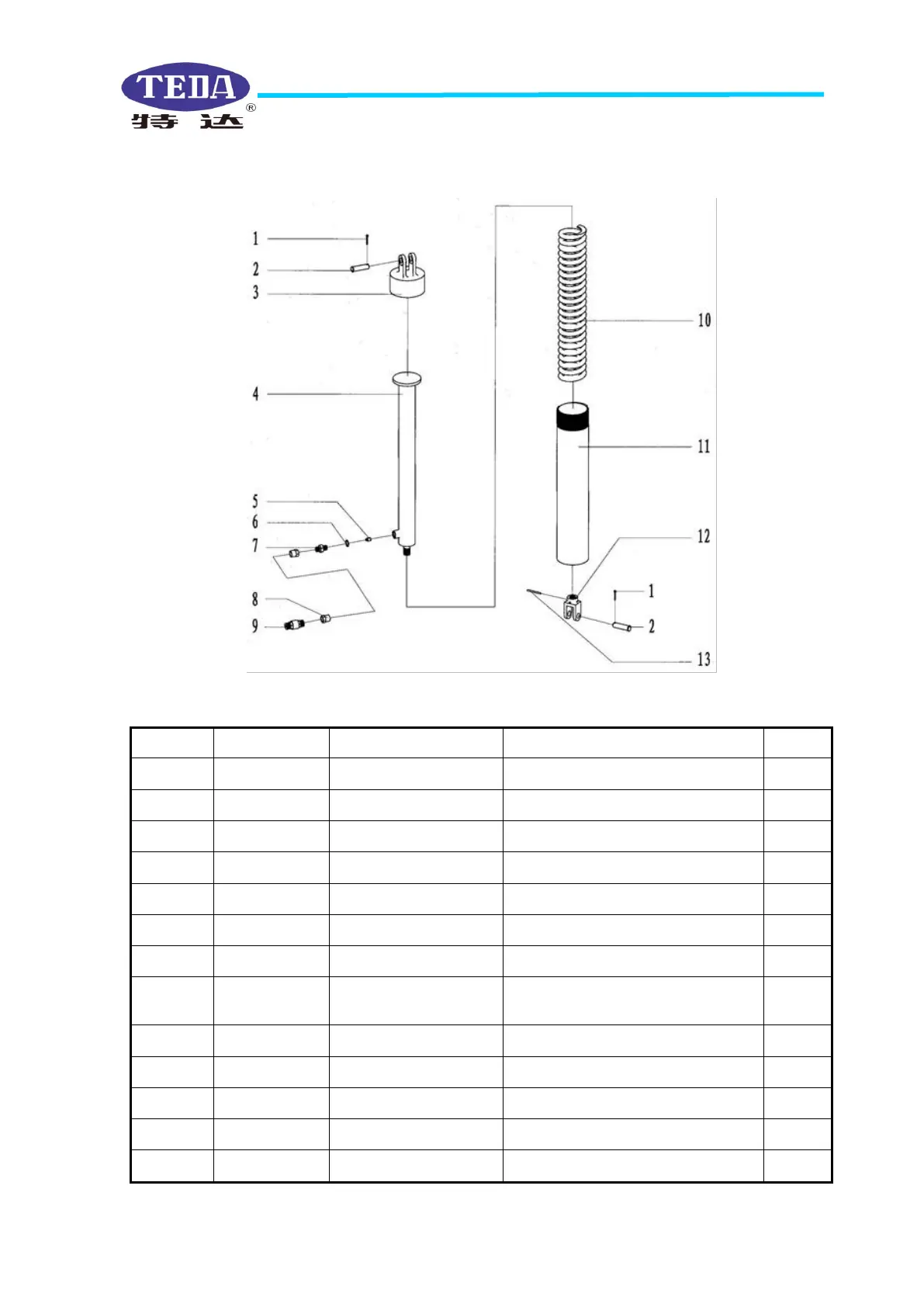

10.13 Hydraulic lifting bucket (customer option) and detail list (Fig.10.13, Table 10.13)
Table 10.13 Hydraulic lifting bucket parts list
Item
P/N
Part number
Description
Qty
1
XQ20-258
GB/T91
Cotter pin5
×
30
2
2
XQ20-259
GB/T882
Pin shaft 20
×
65
2
3
XQ20-260
YDT800-2
Lifting bucket end joint
1
4
XQ20-261
YDT800.1
Hydraulic cylinder assembly
1
5
XQ20-262
XYQ12.YD-01.3
Throttling valve core
1
6
XQ20-263
GB1235-76
O ring24×2.4
1
7
XQ20-264
XYQ12.YD-01.2
Adapter
1
8
XQ20-265
Hose10 Ⅱ -1300(one end M18
×1.5，one end M24×1.5）
1
9
XQ20-266
JB/ZQ4078
Quick adapter M24
×
1.5
3
10
XQ20-267
YDT800-1
Spring
1
11
XQ20-268
YDT800.2
Barrel body
3
12
XQ20-269
XYQ12.YD-01.1
Suspension head
1
13
XQ20-270
GB/T91
Cotter pin 5×50
1
Fig.10.13
