MODEL XQ140/20 HYDRAULIC POWER TONG OPERATION MANUAL
YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD

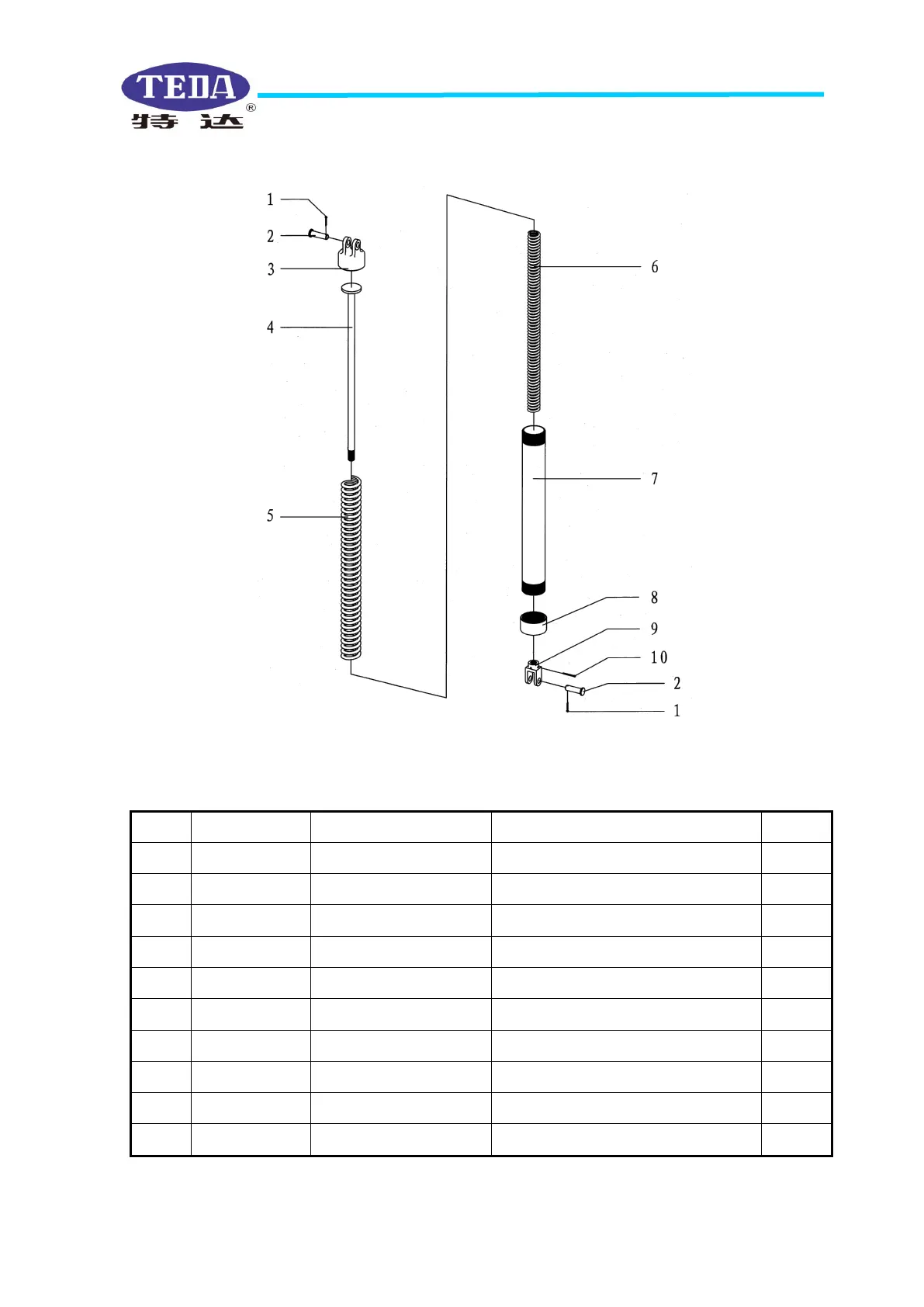

10.14 Spring lifting bucket (customer option) and parts list (Fig.10.14, Table 10.14)
Fig.10.14
Table 10.14 Spring lifting bucket parts list
Item
P/N
Part number
Description
Qty
1
XQ20-278
GB/T91
Cotter pin5
×
30
2
2
XQ20-279
GB/T882
Pin shaftB20×70
2
3
XQ20-280
XYQ12.TD-05
Connector
1
4
XQ20-281
XYQ12.TD.1
Center rod
1
5
XQ20-282
XYQ12.TD-03
Spring
1
6
XQ20-283
XYQ12.TD-06
Vice spring
1
7
XQ20-284
XYQ12.TD-04
Working bucket
1
8
XQ20-285
XYQ12.TD-02
End cover
1
9
XQ20-286
XYQ12.YD-01.1
Suspension head
1
10
XQ20-287
GB/T91
Cotter pin5
×
50
1
