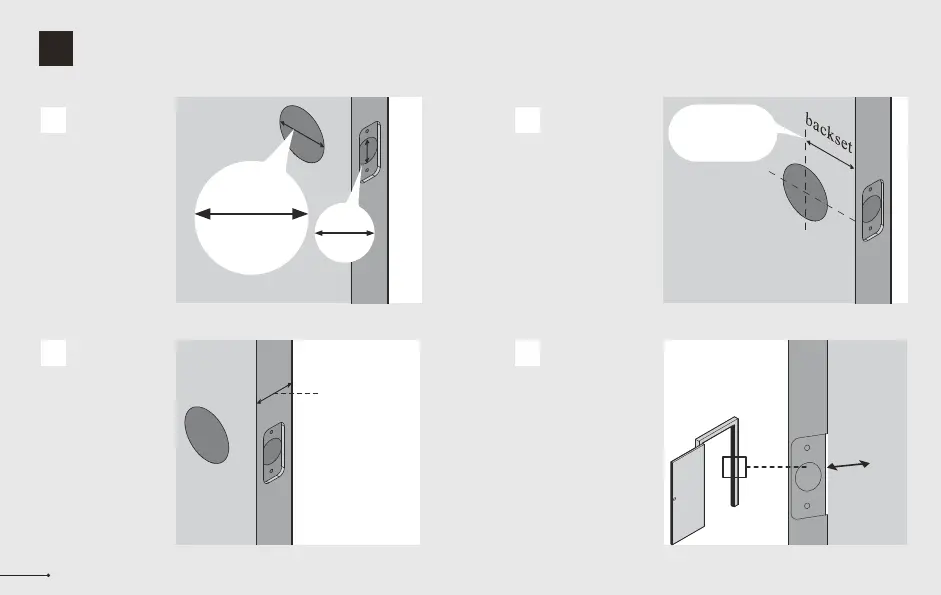

TEEHO TE009 - STEP 1: Prepare the door and check dimensions

Measure to confirm
that the hole in the
door edge is 1"
(25mm).
Measure to confirm
that the backset is
either 2-3/8" or
2-3/4" (60 or 70mm)
2-3/8" or 2-3/4"
(60 or 70mm)
Make sure the hole in
the door frame is
drilled a minimum of
1’’ (25mm) deep, to
leave enough space
for the latch to extend
into the door frame
when the door is
locked.
Measure to confirm
that the door is 1-3/8"
to 2" (35mm to
50mm) thick.
A
Measure to
confirm that the
hole in the door is
2-1/8" (54mm)
B
C
D
Prepare the door and check dimensions
1
STEP
3
1"
25mm
1-3/8" to 2"
(35mm to 50mm)
2-1/8"
(54mm)
1"
25mm
Make sure the door frame is aligned with the door.
There are no obstructions stuck in the door frame.
Notes:
