TEEHO TE009 - STEP 2: Install the latch and strike

2
4
3
chiseled
not chiseled

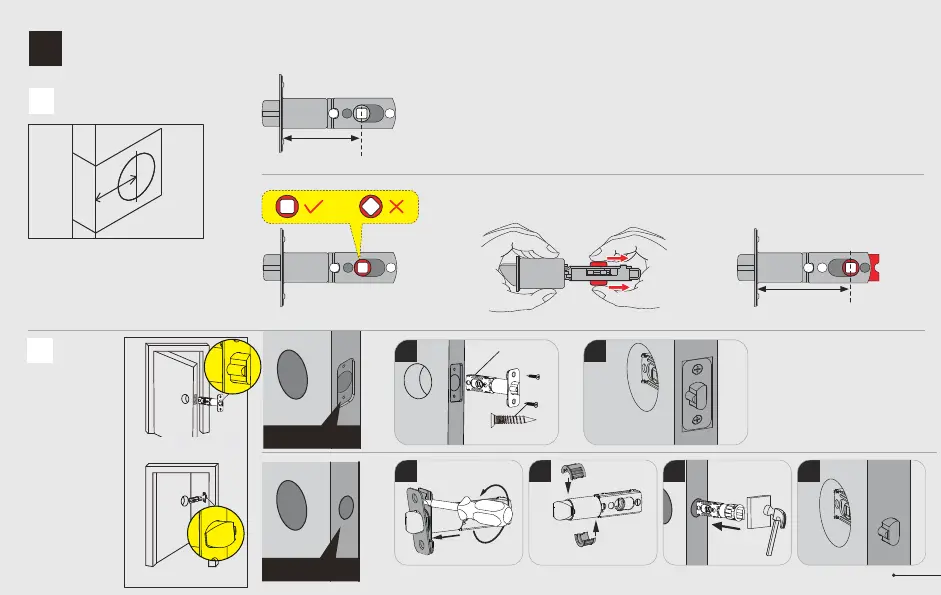

Install the latch and strike
2
STEP
Backset is the distance from the door
edge to the center of the hole in the door.
The latch is provided with adjustable
design which can fit either 2-3/8’’(60mm)
or 2-3/4’’(70mm) backset.
A
B
Latch backset adjustment
Install the latch
2-3/8"
(60mm)
2-3/4"
(70mm)
If the backset of your door is
2-3/8"(60mm), no need to adjust
the latch.
If the backset of your door is 2-3/4"(70mm), please adjust the latch.
2
Latch Screws (J)
C
1
1
4
Drive-In Collar(N)
Opening inwards
Opening outwards
