ASSEMBLE TABLE BED
6

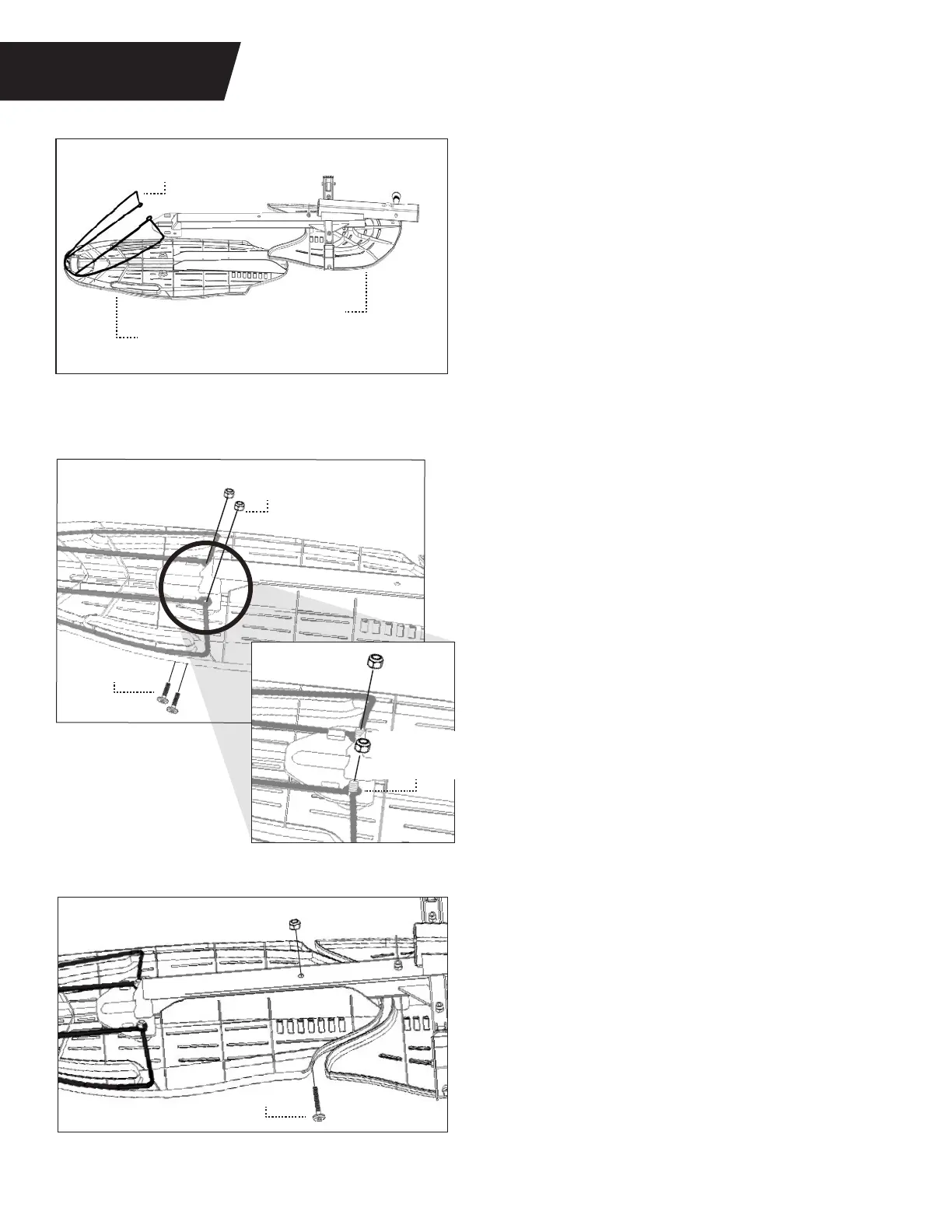

Figures 5 & 5a: Use the Table Bed Hardware Kit
to assemble the Table Bed.
Align the bolt holes of the upper part of the
frame (triangle-shaped area) to the bolt holes on
the Upper Table Bed.
From beneath the Upper Table Bed, insert the
2 × Short Bolts through the table bed, frame,
and the Bed Frame Extension Loops.
Hand tighten a Nut to the end of each Bolt.
Figure 6: From beneath the Upper Table Bed,
insert the Long Bolt through the lower bolt
hole of the Table Bed.
Hand tighten a Nut to the end of the
Long Bolt.
Proceed to tighten the 3 × Nuts using the
10/13mm Open-Ended Wrench and 5mm
Allen Wrench.
Figure 4
Figure 5
NOTE: Do not detach the Bed Frame Extension
from the clips as you proceed.
Figure 4: Lay the Upper and Lower Table Bed
parts face down on the floor. Lift the base of the
Bed Frame Extension to fit the Lower Table Bed
into the plastic track of the Upper Table Bed.
Figure 6
Figure 5a
Bed Frame Extension
Lower Table
Bed
Upper Table Bed
Nut
Short Bolt
Bed Frame
Extension Loop
Long Bolt
STEP 2
