Teka LI5 - Hydraulic Connections and Setting



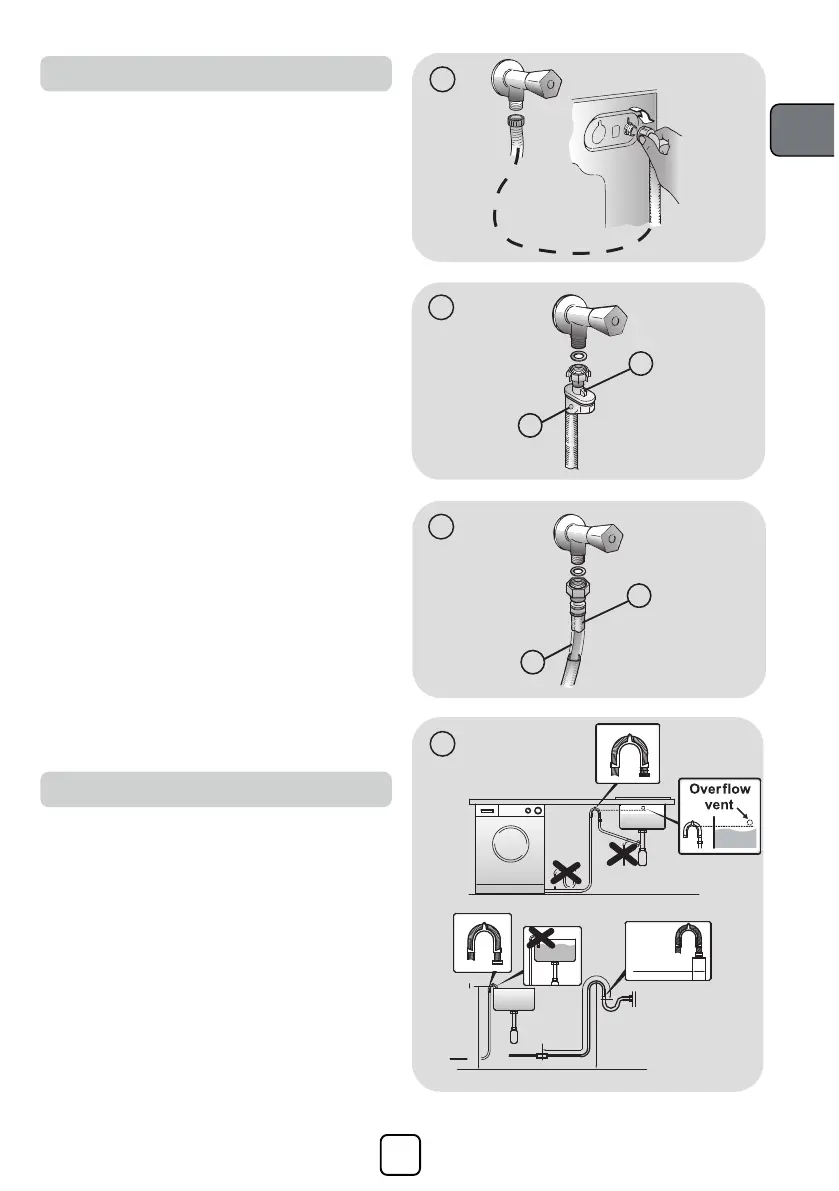

Connect the water hose to the wate
r
supply tap (fig. 3) only using the hose
supplied with the appliance (do no
t
reuse old hose-sets).

SOME MODELS may include one o
r
more of the following features:

AQUASTOP (fig. 4):
a device located on the supply tube tha
t
stops water flow if the tube deteriorates;
in this case, a red mark will appear in the
window “A” and the tube must be
replaced. To unscrew the nut, press the
one-way lock device "B".

AQUAPROTECT – SUPPLY TUBE WITH
GUARD (fig. 5):
Should water leak from the primary
internal tube "A", the transparen
t
containment sheath "B" will contain wate
r
to permit the washing cycle to complete.
At the end of the cycle, contact the
Customer Service Centre to replace the
supply tube.

The washing machine should be installed
in its final position such that the water fill
hose is not kinked or trapped. The
corrugated drain hose should be inserted
into suitable drain pipe of between 50 cm
and 85 cm height above the floor using
the curved drain hose support. If an unde
r
sink connection is used the drain hose
must be routed above the sink overfill
opening to prevent back siphoning. Care
must be taken to avoid kinking or trapping
the drain hose (fig. 6).
3
4
B
A
min 50 cm
max 85 cm
+2,6 mt
max
max 100 cm
min 4 cm
6
Hydraulic connections
Setting
9
EN
B
A
5
