2. Description of the system elements

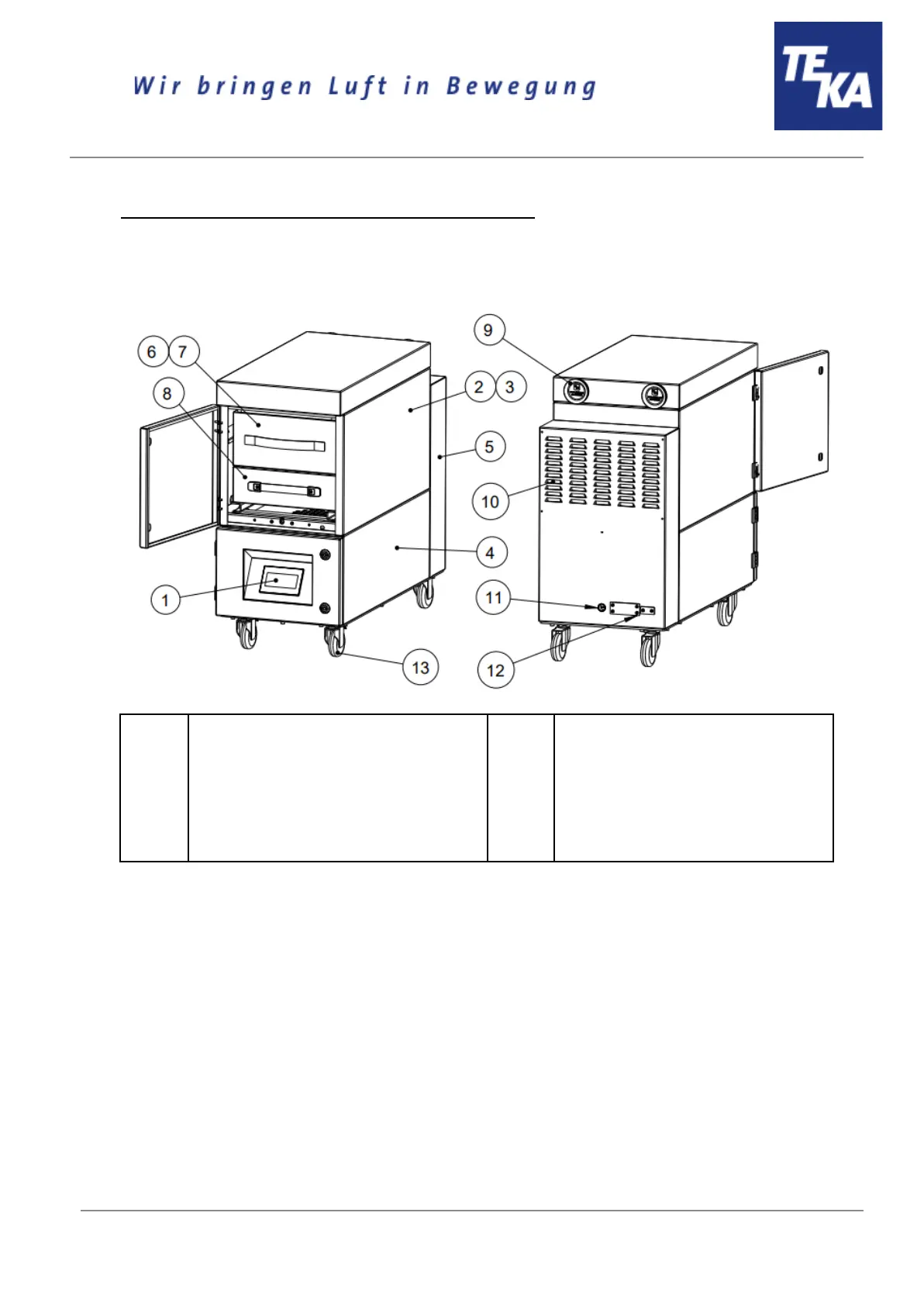

2.1. Illustration of the system elements
Installation example:
Z.Nr. 13153701
Pos.1
Pos.2
Pos.3
Pos.4
Pos.5
Pos.6
Pos.7
Operating panel of the control
Particle filter housing
Activated carbon housing
Turbine housing
Silencing housing
Particle filter
Prefilter mat (inserted into particle filter)
Pos.8
Pos.9
Pos.10
Pos.11
Pos.12
Pos.13
Activated carbon cassette
Suction nozzle
Exhaust grille
Mains cable with plug
Connection for external control unit
Swivel castor
