Teknic Amazon IPC-5 User Manual

IPC Accessory Cables Third-party Accessories

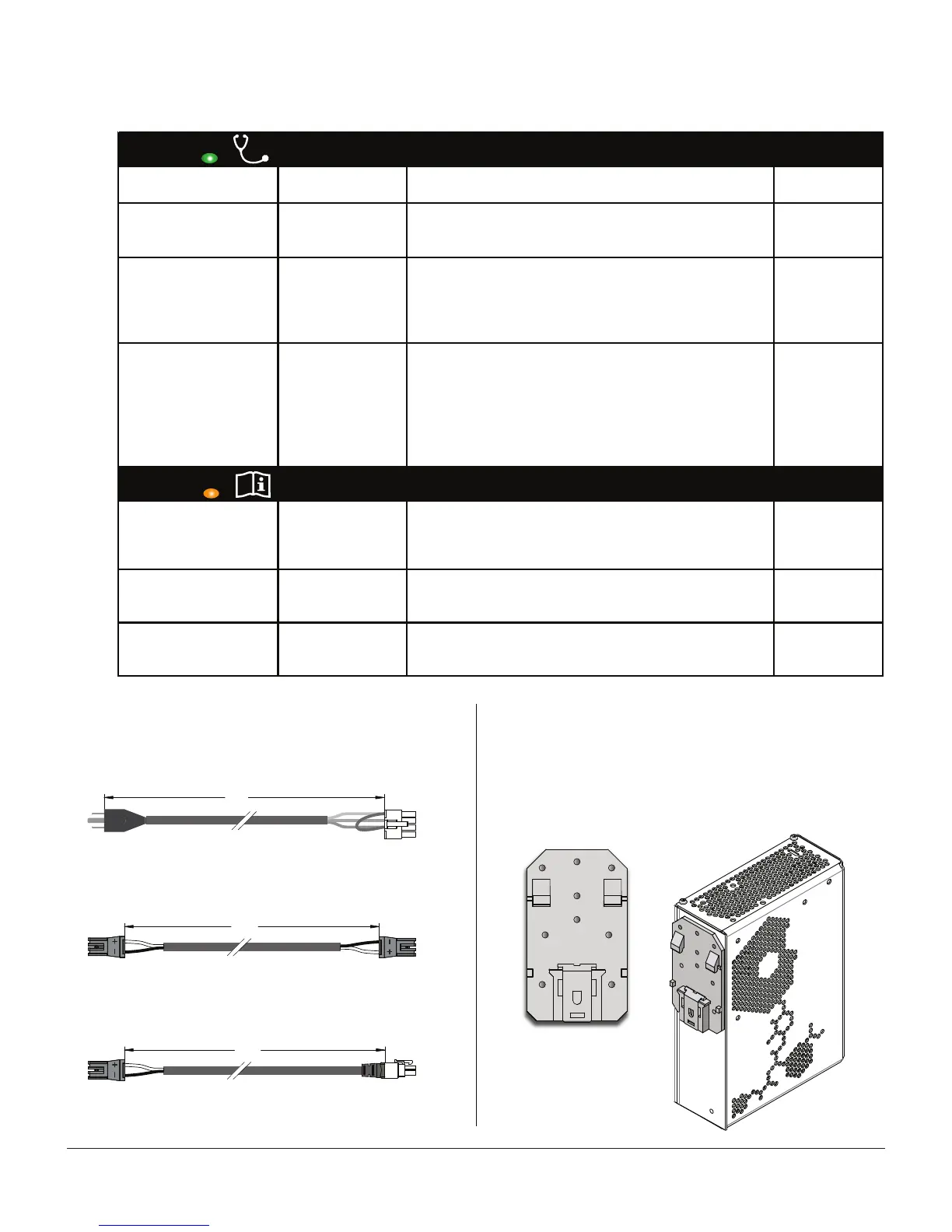

LED Codes
The accessories listed below are available at www.teknic.com.
Regen Indicator
(Green LED)
IPC State Description
Rapid Blink
(
16 blinks/second)
On (normal)
No action required.
The power supply is working properly. No
significant regen detected.
LED intermittently turns
on solid but returns to
rapid blink.
Regenerated energy
was detected.
No action required.
The power supply is working properly. LED
turns on solid when DC bus voltage rises above nominal while
staying below the Regen Control Threshold.
Blink
(3 blinks/second)
Regen control circuit
was activated.
No action required.
The power supply is working properly. This
latching signal indicates that the bus voltage has gone over the
Regen Control Threshold and activated the internal regen control
circuit.
Note: This blink code will persist until AC power is
cycled
.
Strobe
(One short blink
every two seconds)
Regen capacity was
exceeded.
Action required.
This latching signal indicates that the power
supply's ability to absorb regenerated energy was exceeded at
least once since AC power was applied. When this occurs, the
regen control circuit is automatically disabled as a protective
measure,
but the DC output is still on.
Solution: Upgrade to higher
regen capacity supply.
Note: This blink code will persist until
AC power is cycled.
Information LED
(Yellow LED)
IPC State Description
Momentarily on
Mode transition
No action required.
The power supply is working properly. The
LED will pulse on momentarily when the internal regulator changes
operating modes. This may be accompanied by an audible "click"
of the internal relay.
LED blinks intermittently
during operation
Temporary overload
occurred
A transient voltage event occurred (but was below the IPC's
shutdown threshold). Action may be required to prevent future
shutdowns.
LED on solid
Shutdown
A critical voltage or temperature overload occurred. IPC is in
protective shutdown state. Remove power until LED turns off and
unit has sufficiently cooled. Reapply power.
LED Blink
Freq. / Duty Cycle
N/A
N/A
ON SOLID
0.5 Hz
(DC = 2.5% on)
LED Blink
Freq. / Duty Cycle
16 Hz
(DC = 50% on)
INTERMITTENTLY
ON SOLID
3 Hz
(DC = 50% on)
78”
Teknic Part # IPC35-CABLE110
Phoenix Contact part # UTA-89 (aka part # 2853970)
Description: Power cable, Sabre to Sabre. From
IPC to Eclipse or Meridian 4xx/5xx series drives.
72” in length (nominal).
72”
Teknic Part # PC-SBR-72
Description: Power cable, Sabre to Molex Minifit Jr.
4-position plug. From IPC to ClearPath Motor. 120”
in length (nominal).
120”
Teknic Part # CPM-CABLE-PWR-MS120
Description: AC line cord (110V) for Amazon IPC-3
and IPC-5 power supplies. Includes NEMA 5-15P to
Minifit 8 pin connector, 78” in length (nominal).
Description: Universal DIN rail mount. Material: Die-cast zinc.
Dimensions: 89mm x 52mm. Information at Phoenix Contact:
www.phoenixcontact.com.
3
