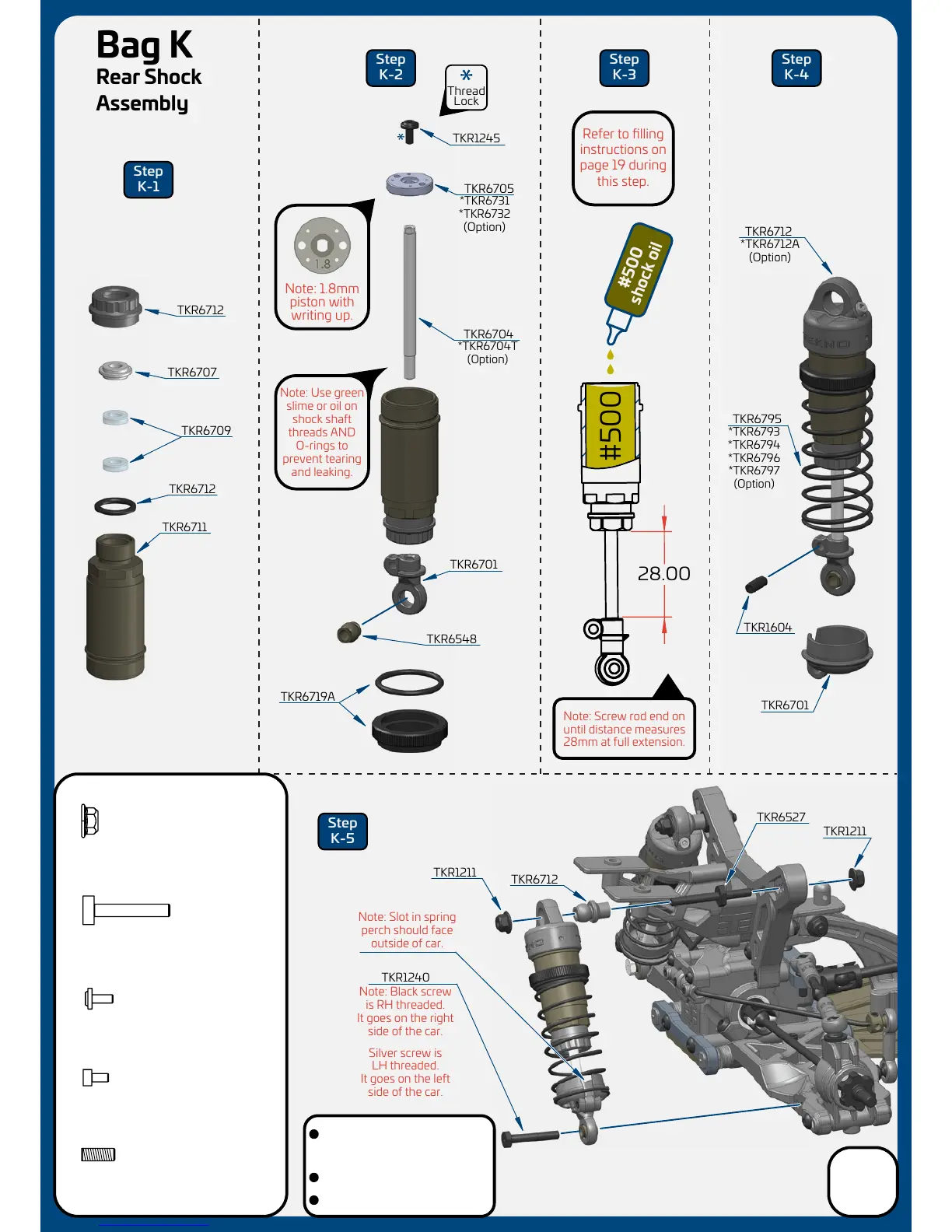

Tekno EB 410 - Bag K; Rear Shock Assembly

TKR1240
TKR1211
Note: Slot in spring
perch should face
outside of car.
TKR1211
TKR6712
TKR6527
TKR6712
TKR6709
TKR6711
TKR6707
TKR1245
TKR6701
TKR6548
TKR1604
TKR6701
TKR6795
*TKR6793
*TKR6794
*TKR6796
*TKR6797
(Option)
TKR6712
*TKR6712A
(Option)
TKR6719A
Step
K-1
Step
K-2
Step
K-3
Step
K-4
Step
K-5
TKR1240
M3x18mm Shock Mnt Screw
x2
TKR1248
M2x4mm Emulsion Screw
x2
TKR1245
M2x5mm Piston Screw
x2
TKR1211
M3 Lock Nut Flange Black
x4
TKR1604
M3x8mm Set Screw
x2
#500
shock oil
Note: Screw rod end on
until distance measures
28mm at full extension.
#500
Refer to filling
instructions on
page 19 during
this step.
28.00
TKR6712
Note: Black screw
is RH threaded.
It goes on the right
side of the car.
Silver screw is
LH threaded.
It goes on the left
side of the car.
TKR6704
*TKR6704T
(Option)
TKR6705
Thread
Lock
Note: Use green
slime or oil on
shock shaft
threads AND
O-rings to
prevent tearing
and leaking.
*TKR6731
*TKR6732
(Option)
Note: 1.8mm
piston with
writing up.
Bag K
Rear Shock
Assembly
18
Stock shock position is outside
hole on the arm and 2nd from
inside hole on the tower (2/B)
Stock rear ride height is 21mm
Shock length (droop) is 88mm
