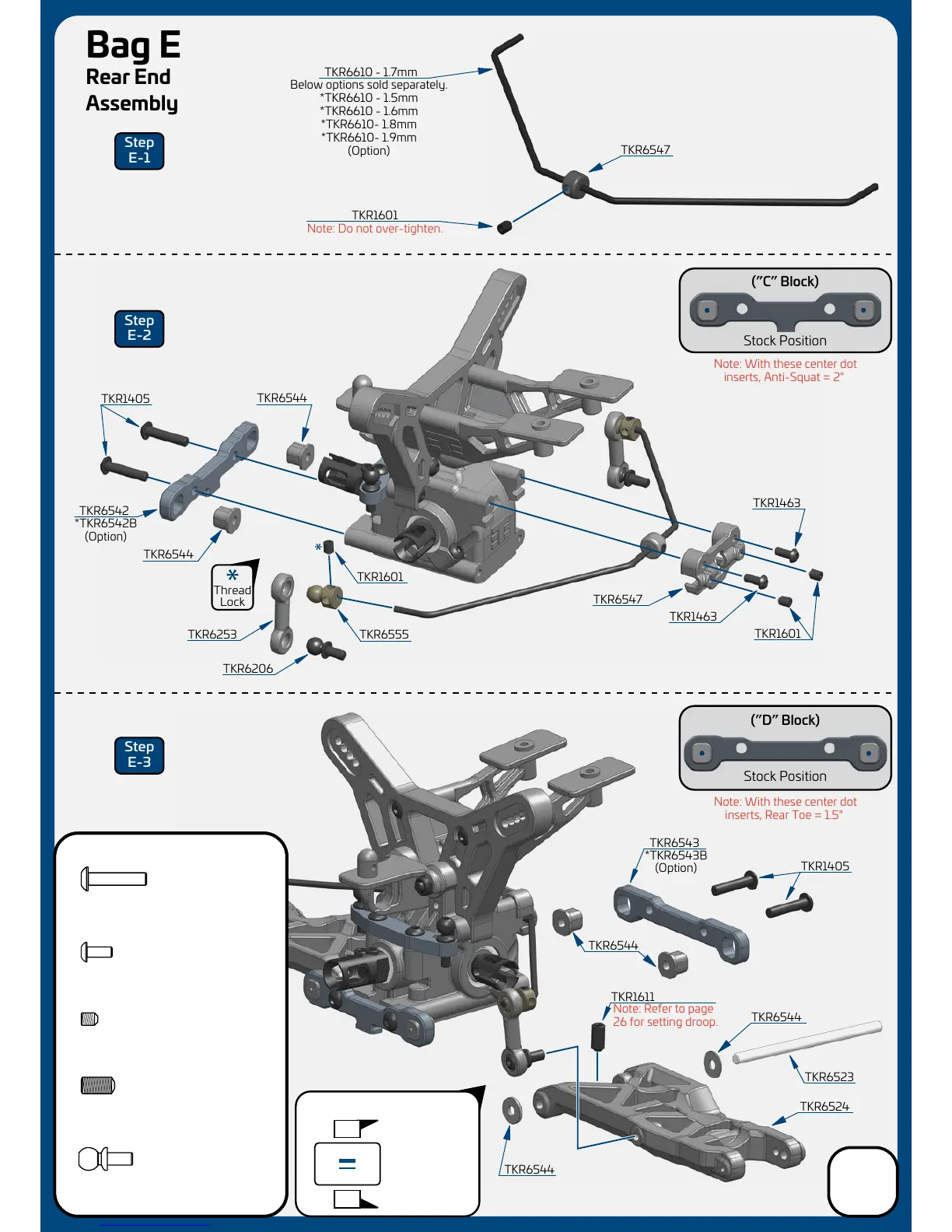

Tekno EB 410 - Bag E; Rear End Assembly

Stock Position
(”D” Block)
Stock Position
(”C” Block)
TKR1601
TKR6524
TKR6610 - 1.7mm
TKR6547
Note: With these center dot
inserts, Rear Toe = 1.5°
Note: Refer to page
26 for setting droop.
Note: With these center dot
inserts, Anti-Squat = 2°
Note: Do not over-tighten.
TKR6544
TKR6544
TKR6547
TKR6542
TKR1601
TKR6544
TKR1463
TKR6544
TKR6544
Bag E
Rear End
Assembly
Below options sold separately.
*TKR6610 - 1.5mm
*TKR6610 - 1.6mm
*TKR6610- 1.8mm
*TKR6610- 1.9mm
(Option)
*TKR6542B
(Option)
*TKR6543B
(Option)
Thread
Lock
TKR1405
TKR1405
TKR6523
TKR6543
TKR1601
TKR6555
TKR6206
TKR6253
TKR1611
x5
TKR1601
M3x4mm Set Screw
Step
E-1
Step
E-2
Step
E-3
TKR1405
M3x14mm Button Head Screw
x4
TKR1463
M2.5x6mm Button Head Screw
x2
TKR1611
M4x8mm Set Screw
x2
TKR6206
M3x6mm Ball Stud
x2
TKR1463
8
large shim
goes towards
the front
Wheelbase Shims
1
.5
large 1mm
front
rear
small .5mm
