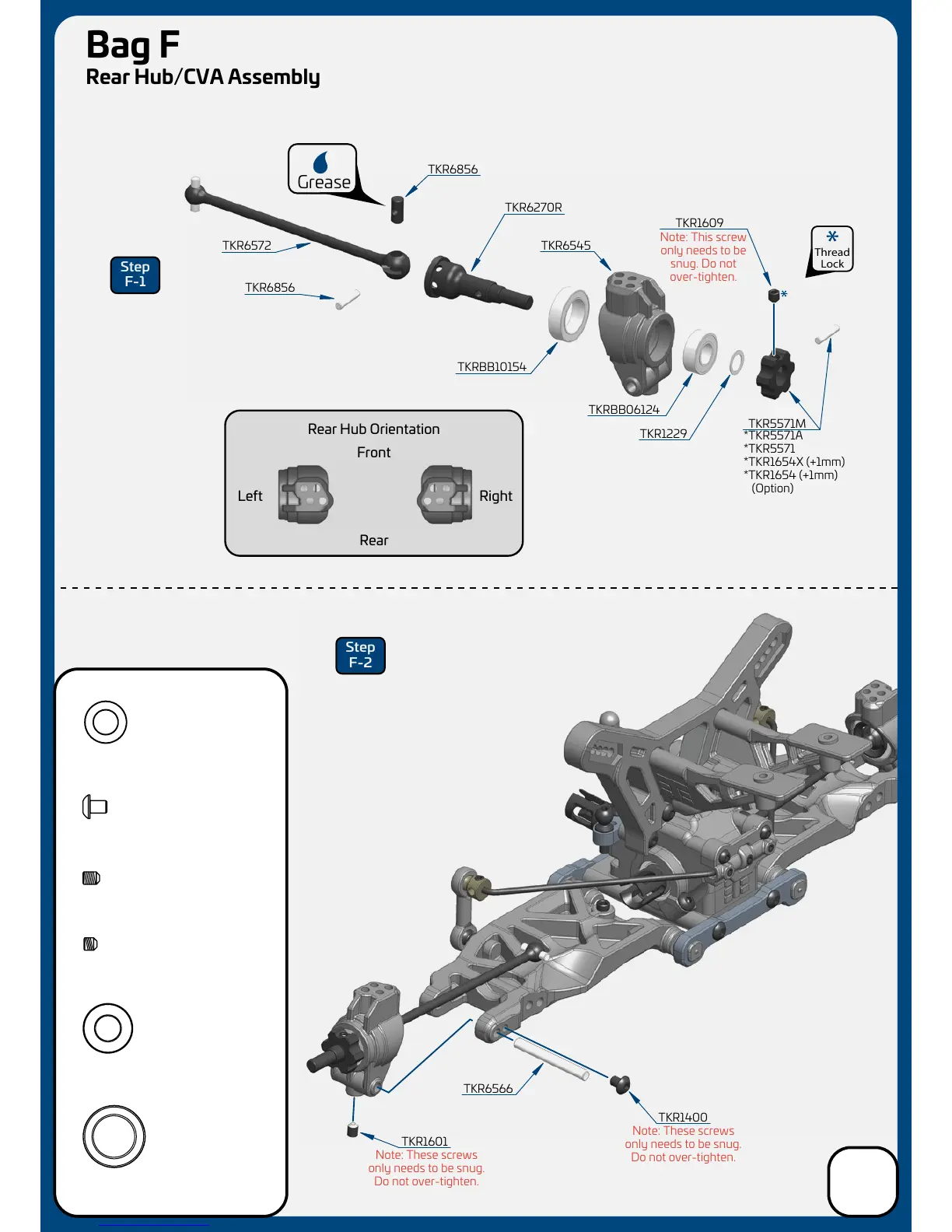

Tekno EB 410 - Bag F; Rear Hub;CVA Assembly

TKR6856
TKR6856
TKR6270R
TKR6545
TKRBB10154
TKRBB06124
TKR5571M
TKR1609
TKR1229
TKR6572
TKRBB10154
Ball Bearing (10x15x4)
x2
*TKR5571A
*TKR5571
*TKR1654X (+1mm)
*TKR1654 (+1mm)
(Option)
Note: This screw
only needs to be
snug. Do not
over-tighten.
TKR1229
6x10x0.2mm Shim
x2
x2
TKR1601
M3x4mm Set Screw
TKR1609
M3x3mm Set Screw
x2
Step
F-1
Step
F-2
TKRBB06124
Ball Bearing (6x12x4)
x2
Grease
TKR1400
M3x4mm Button Head Screw
x2
Thread
Lock
TKR1601
TKR1400
TKR6566
Note: These screws
only needs to be snug.
Do not over-tighten.
Note: These screws
only needs to be snug.
Do not over-tighten.
Rear Hub Orientation
RightLeft
Rear
Front
Bag F
Rear Hub/CVA Assembly
9
