SERVICE INSTRUMENT DIVISION
C
ACCESSORIES

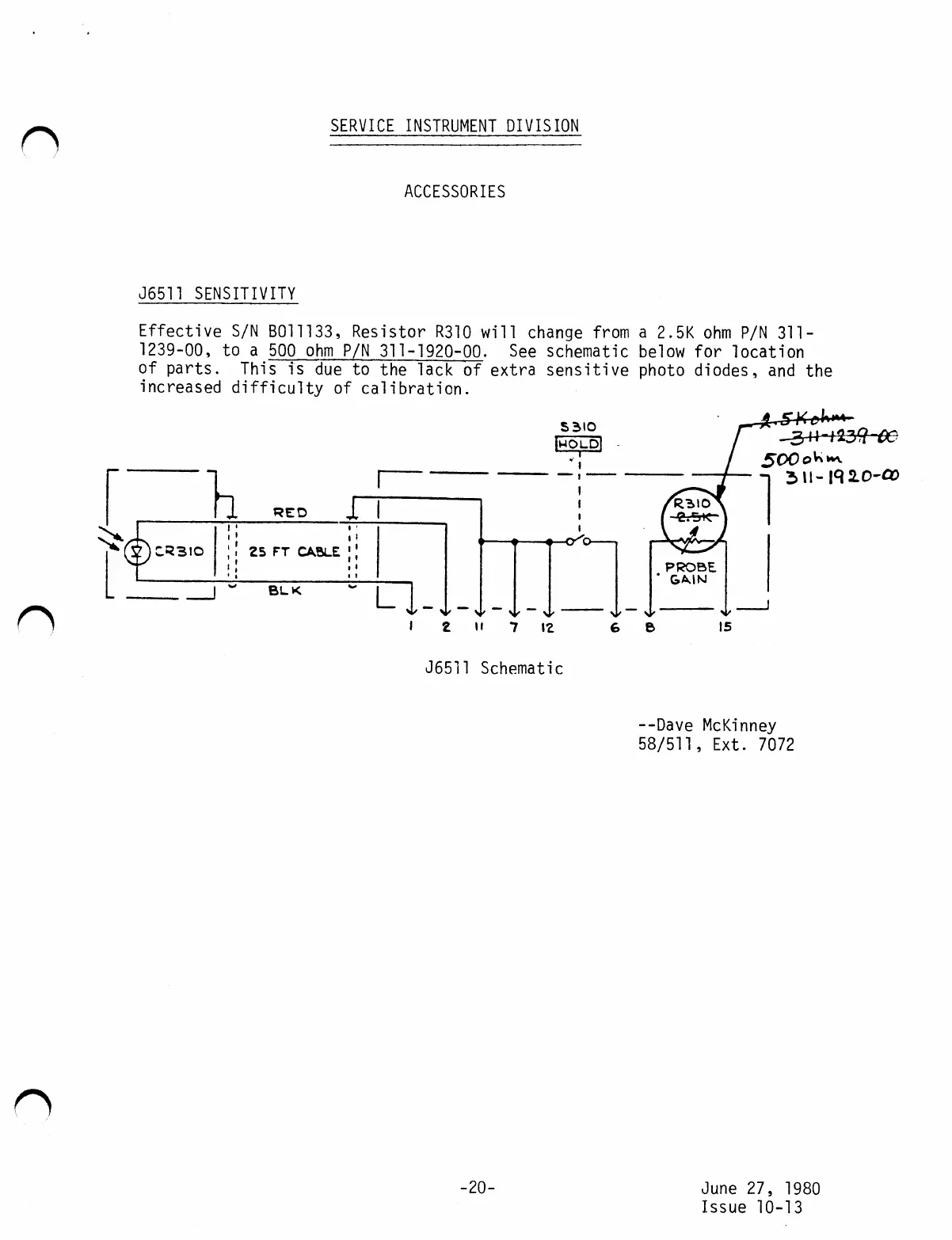

J6511 SENSITIVITY
Effective S / N
B011133
,
Resistor R310
will
change from a
2.5K ohm P / N
311
1239-00
,
to a 500
ohm P / N
311-1920-00 . See
schematic
below for
location
of
parts .
This is due
to the
lack of
extra
sensitive
diodes
,
and the
increased
difficulty
of
calibration .
S 310
L.skoha
HOLD
344239-00
500
ohm
311-1920-00
R310
RED
CR310
25 FT CABLE
PROBE
GAIN
BLK
2
7
12
6
15
J6511
Schematic
--Dave
McKinney
58/511 , Ext . 7072
C
-20
June 27 , 1980
Issue 10-13
