ACCESSORIES
Operational Accessories

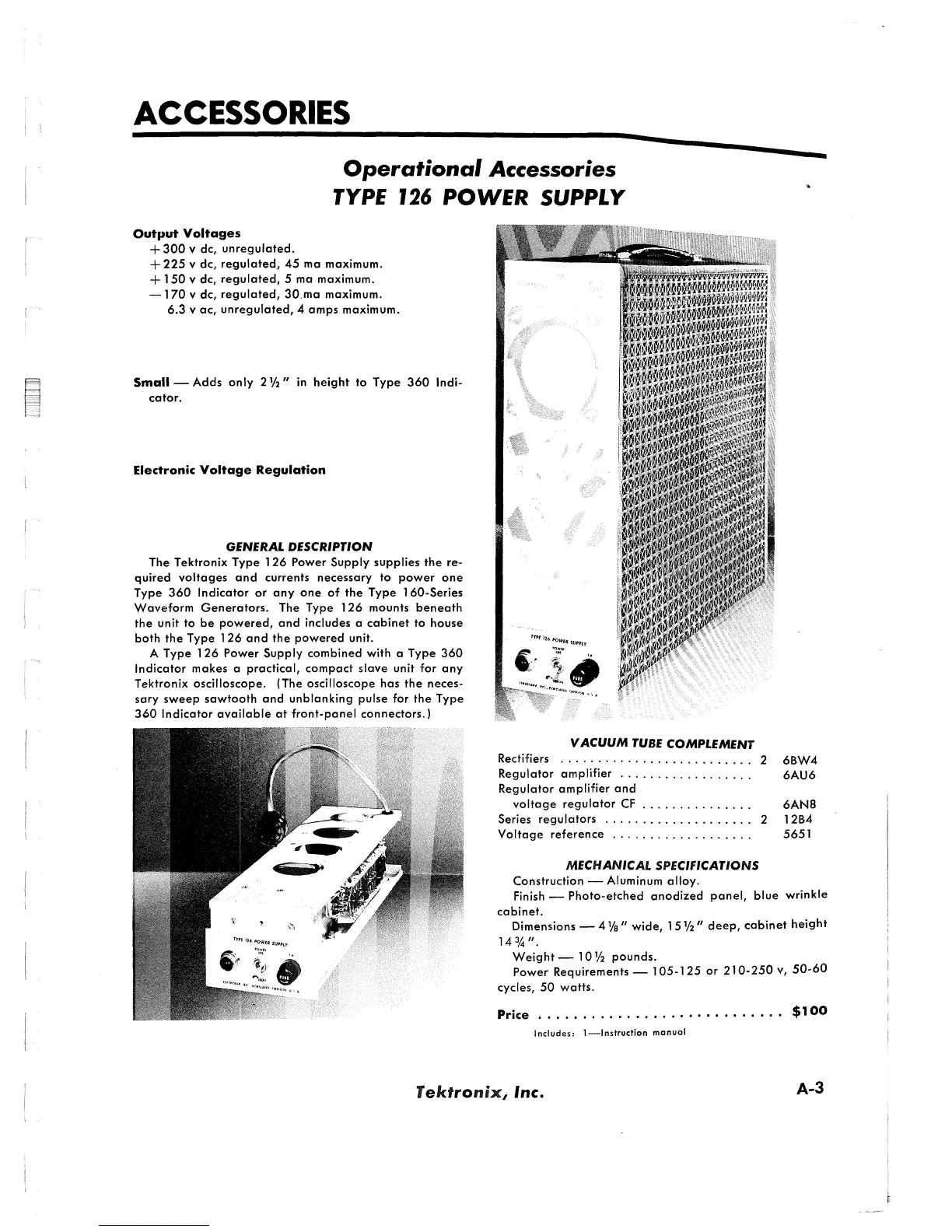

TYPE 126 POWER SUPPLY
Output Voltages
+ 3 0 0v dc, unregulated.
+ 225 v dc, regulated, 4 5 ma maximum.
+ 150 v dc, regulated, 5 ma maximum.
— 170 v dc, regulated, 30.ma maximum.
6.3 v ac, unregulated, 4 amps maximum.
Small — Adds only 2 V2 " in height to Type 360 Indi
cator.
Electronic Voltage Regulation
GENERAL DESCRIPTION
The Tektronix Type 1 26 Power Supply supplies the re
quired voltages and currents necessary to power one
Type 360 Indicator or any one of the Type 160-Series
Waveform Generators. The Type 126 mounts beneath
the unit to be powered, and includes a cabinet to house
both the Type 126 and the powered unit.
A Type 126 Power Supply combined with a Type 360
Indicator makes a practical, compact slave unit for any
Tektronix oscilloscope. (The oscilloscope has the neces
sary sweep sawtooth and unblanking pulse for the Type
360 Indicator available at front-panel connectors.)
VACUUM TUBE COMPLEMENT
Rectifiers ............................................................ 2 6BW4
Regulator am plifier......................................... 6 AU6
Regulator amplifier and
voltage regulator C F .................................. 6 A N 8
Series regulators .............................................. 2 12B4
Voltage reference
...........................................
5651
MECHANICAL SPECIFICATIONS
Construction — Aluminum alloy.
Finish — Photo-etched anodized panel, blue wrinkle
cabinet.
Dimensions — 4 Vs " wide, 1 5 V2 " deep, cabinet height
14+4".
W eight— IOV2 pounds.
Power Requirements — 1 05-1 25 or 210-250 v, 50-60
cycles, 50 watts.
P r ic e
....................................
$ 1 0 0
Includes: 1— Instruction manual
Tektronix, Inc
A-3
