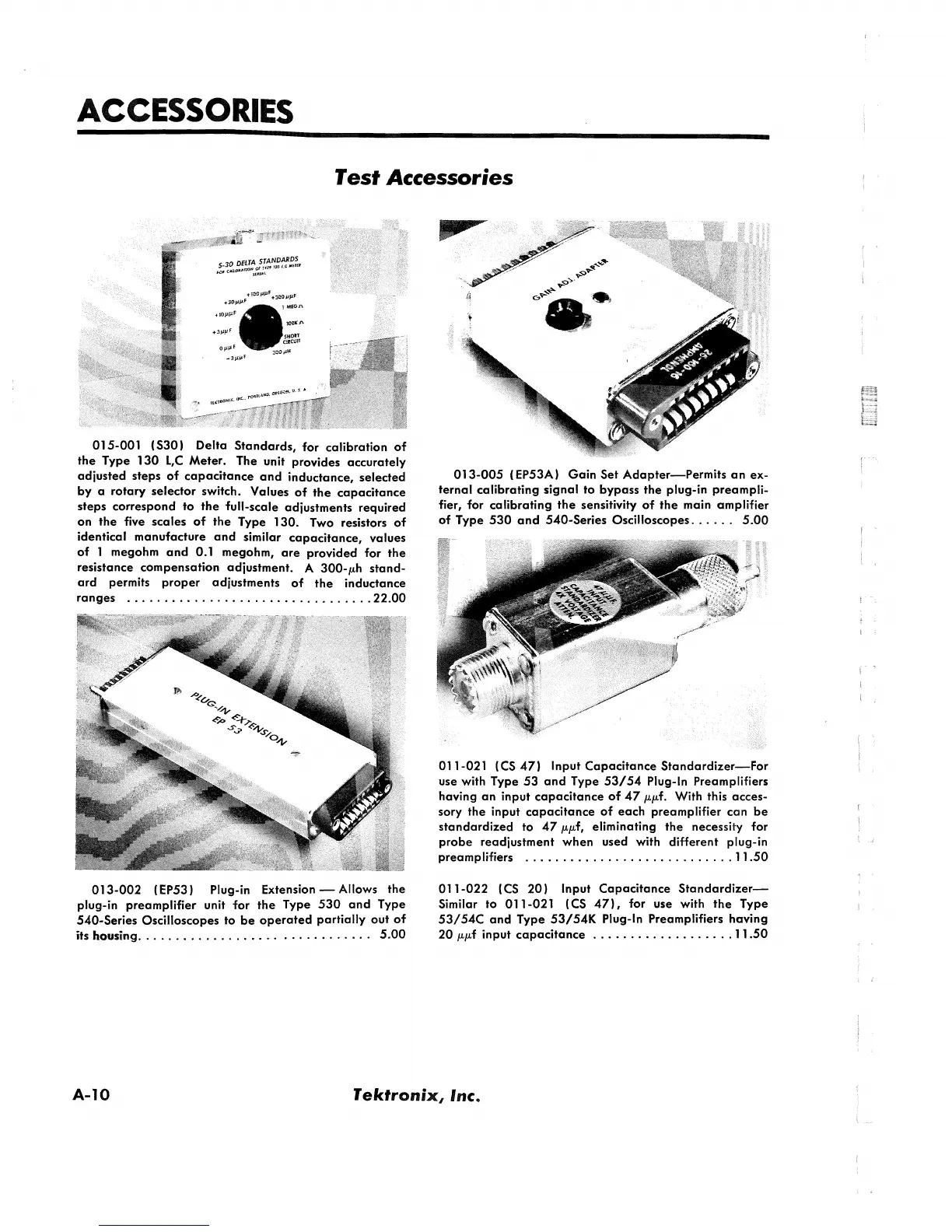

ACCESSORIES
Test Accessories
f "
P
015-001 (S30) Delta Standards, for calibration of
the Type 130 L,C Meter. The unit provides accurately
adjusted steps of capacitance and inductance, selected
by a rotary selector switch. Values of the capacitance
steps correspond to the full-scale adjustments required
on the five scales of the Type 130. Two resistors of
identical manufacture and similar capacitance, values
of 1 megohm and 0.1 megohm, are provided for the
resistance compensation adjustment. A 300-ju.h stand
ard permits proper adjustments of the inductance
ranges ..............................................................................2 2 .0 0
013-002 (EP53) Plug-in Extension — Allows the
plug-in preamplifier unit for the Type 530 and Type
540-Series Oscilloscopes to be operated partially out of
its housing......................................................................... 5.00
013-005 (EP53A) Gain Set Adapter— Permits an ex
ternal calibrating signal to bypass the plug-in preampli
fier, for calibrating the sensitivity of the main amplifier
of Type 530 and 540-Series Oscilloscopes
............
5.00
011-021 (CS 47) Input Capacitance Standardizer— For
use with Type 53 and Type 5 3 /5 4 Plug-In Preamplifiers
having an input capacitance of 47 /x/rf. With this acces
sory the input capacitance of each preamplifier can be
standardized to 47 /x/xf, eliminating the necessity for
probe readjustment when used with different plug-in
preamplifiers
..................................................................
11.50
011-022 (CS 20) Input Capacitance Standardizer—
Similar to 011 -021 (CS 47 ), for use with the Type
53/54C and Type 53/54K Plug-In Preamplifiers having
20 /x/xf input capacitance.............................................11.50
A-10
Tektronix, Inc
