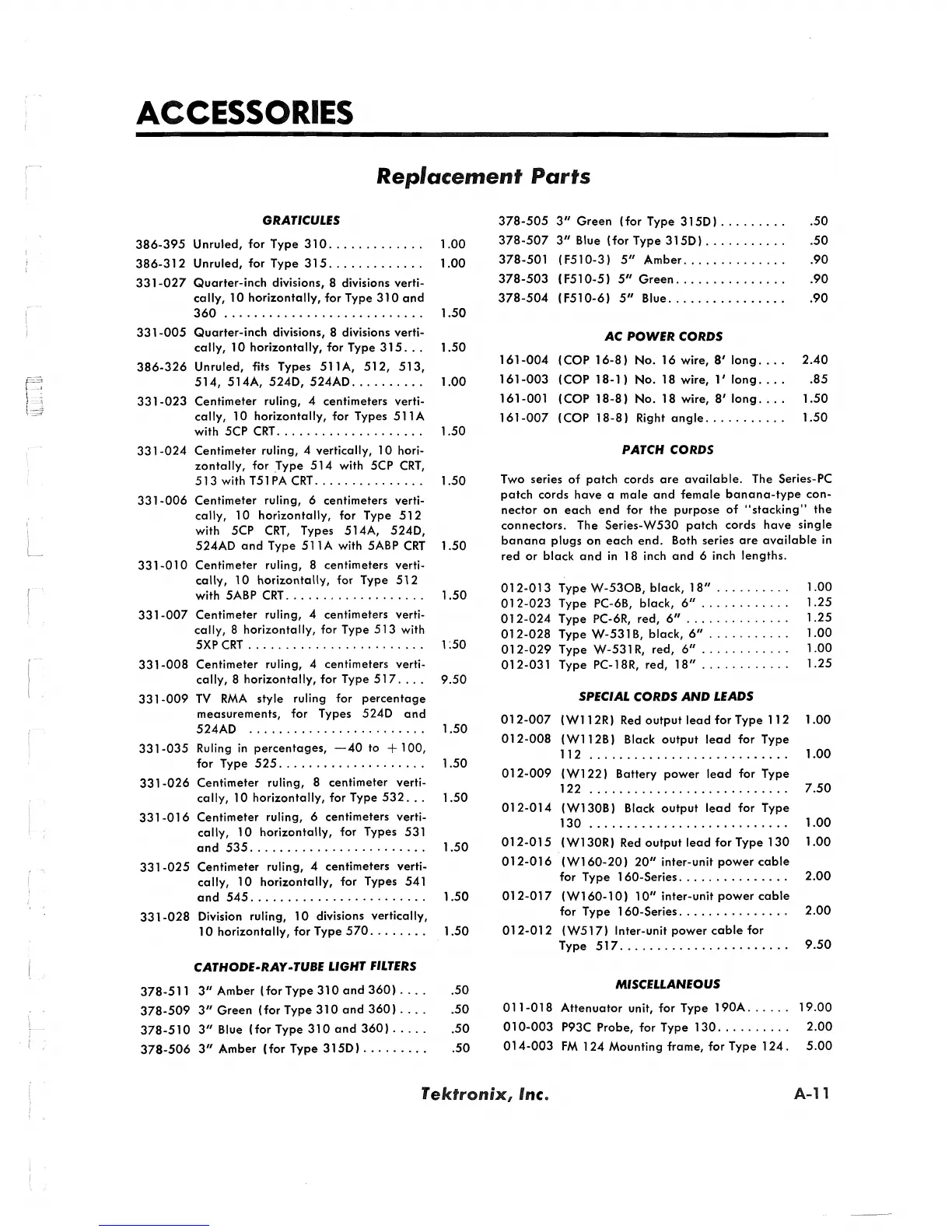

ACCESSORIES
Replacement Parts
GRATICULES
386-395 Unruled, for Type 3 10 ............................ 1.00
386-312 Unruled, for Type 3 1 5............................ 1.00
331-027 Quarter-inch divisions, 8 divisions verti
cally, 10 horizontally, for Type 310 and
360 .............................................................. 1.50
331-005 Quarter-inch divisions, 8 divisions verti
cally, 10 horizontally, for Type 315. . . 1.50
386-326 Unruled, fits Types 511A, 512, 513,
514, 514A, 524D, 524AD...................... 1.00
331-023 Centimeter ruling, 4 centimeters verti
cally, 10 horizontally, for Types 511A
with 5CP CRT.............................................. 1.50
331-024 Centimeter ruling, 4 vertically, 10 hori
zontally, for Type 514 with 5CP CRT,
513 with T51PA CRT.................................. 1.50
331-006 Centimeter ruling, 6 centimeters verti
cally, 10 horizontally, for Type 512
with 5CP CRT, Types 514A, 524D,
524AD and Type 511A with 5ABP CRT 1.50
331-010 Centimeter ruling, 8 centimeters verti
cally, 10 horizontally, for Type 512
with 5ABP CRT ........................................... 1.50
331-007 Centimeter ruling, 4 centimeters verti
cally, 8 horizontally, for Type 513 with
5XP CRT....................................................... 1.50
331-008 Centimeter ruling, 4 centimeters verti
cally, 8 horizontally, for Type 517. .. . 9.50
331-009 TV RMA style ruling for percentage
measurements, for Types 524D and
524AD ....................................................... 1.50
331-035 Ruling in percentages, — 40 to + 10 0,
for Type 5 25 .............. .. ............................ 1.50
331-026 Centimeter ruling, 8 centimeter verti
cally, 10 horizontally, for Type 532. . . 1.50
331-016 Centimeter ruling, 6 centimeters verti
cally, 10 horizontally, for Types 531
and 53 5 ....................................................... 1.50
331-025 Centimeter ruling, 4 centimeters verti
cally, 10 horizontally, for Types 541
and 54 5 ....................................................... 1.50
331-028 Division ruling, 10 divisions vertically,
10 horizontally, for Type 570 ................. 1.50
CATHODE-RAY-TUBE LIGHT FILTERS
378-511 3" Amber (for Type 310 and 3 6 0 ) ................. 50
378-509 3" Green (for Type 310 and 3 6 0 ) ................. 50
378-510 3" Blue (for Type 310 and 3 6 0 ) ................... 50
378-506 3" Amber (for Type 3 1 5 D ) ............................ 50
378-505 3 " Green (for Type 315 D ) ............................. 50
378-507 3" Blue (for Type 315 D )..................................50
378-501 (F510-3) 5" Amber.........................................90
378-503 (F510-5) 5" Green ........................................... 90
378-504 (F510-6) 5" Blue..............................................90
AC POWER CORDS
161-004 (COP 16-8) No. 16 wire, 8 ' long ____ 2.40
161-003 (COP 18-1) No. 18 wire, 1' long .................. 85
161-001 (COP 18-8) No. 18 wire, 8 # long ____ 1.50
161-007 (COP 18-8) Right angle ........................ 1.50
PATCH CORDS
Two series of patch cords are available. The Series-PC
patch cords have a male and female banana-type con
nector on each end for the purpose of “ stacking” the
connectors. The Series-W530 patch cords have single
banana plugs on each end. Both series are available in
red or black and in 18 inch and 6 inch lengths.
012-013 Type W -530B, black, 1 8 " ...................... 1.00
012-023 Type PC-6 B, black, 6 " ........................... 1.25
012-024 Type PC-6 R, red, 6 " ................................ 1.25
012-028 Type W-531B, black, 6 " ........................ 1.00
012-029 Type W-531R, red, 6 " ........................... 1.00
012-031 Type PC-18R, red, 1 8 " ........................... 1.25
SPECIAL CORDS AND LEADS
012-007 (W112R) Red output lead for Type 112 1.00
012-008 (W112B) Black output lead for Type
1 1 2 ........................................................... 1.00
012-009 (W 122) Battery power lead for Type
1 2 2 .............................................................. 7.50
012-014 (W130B) Black output lead for Type
1 3 0 .............................................................. 1.00
012-015 (W130R) Red output lead for Type 130 1.00
012-016 (W 160-20) 2 0 " inter-unit power cable
for Type 160-Series.................................. 2.00
012-017 (W 160-10) 1 0 " inter-unit power cable
for Type 160-Series.................................. 2.00
012-012 (W 517) Inter-unit power cable for
Type 517 ..................................................... 9.50
MISCELLANEOUS
011-018 Attenuator unit, for Type 190A.............. 19.00
010-003 P93C Probe, for Type 130 ...................... 2.00
014-003 FM 1 24 Mounting frame, for Type 124 . 5.00
