Operating Instructions — Type 585
Sweep Triggers
On + Slope
Trigger Slope
Waveforms Obtained
With The Triggering
Level Control Set In
The - Region
Sweep Triggers
On — Slope
Trigger Slope
+
On — Slope
+

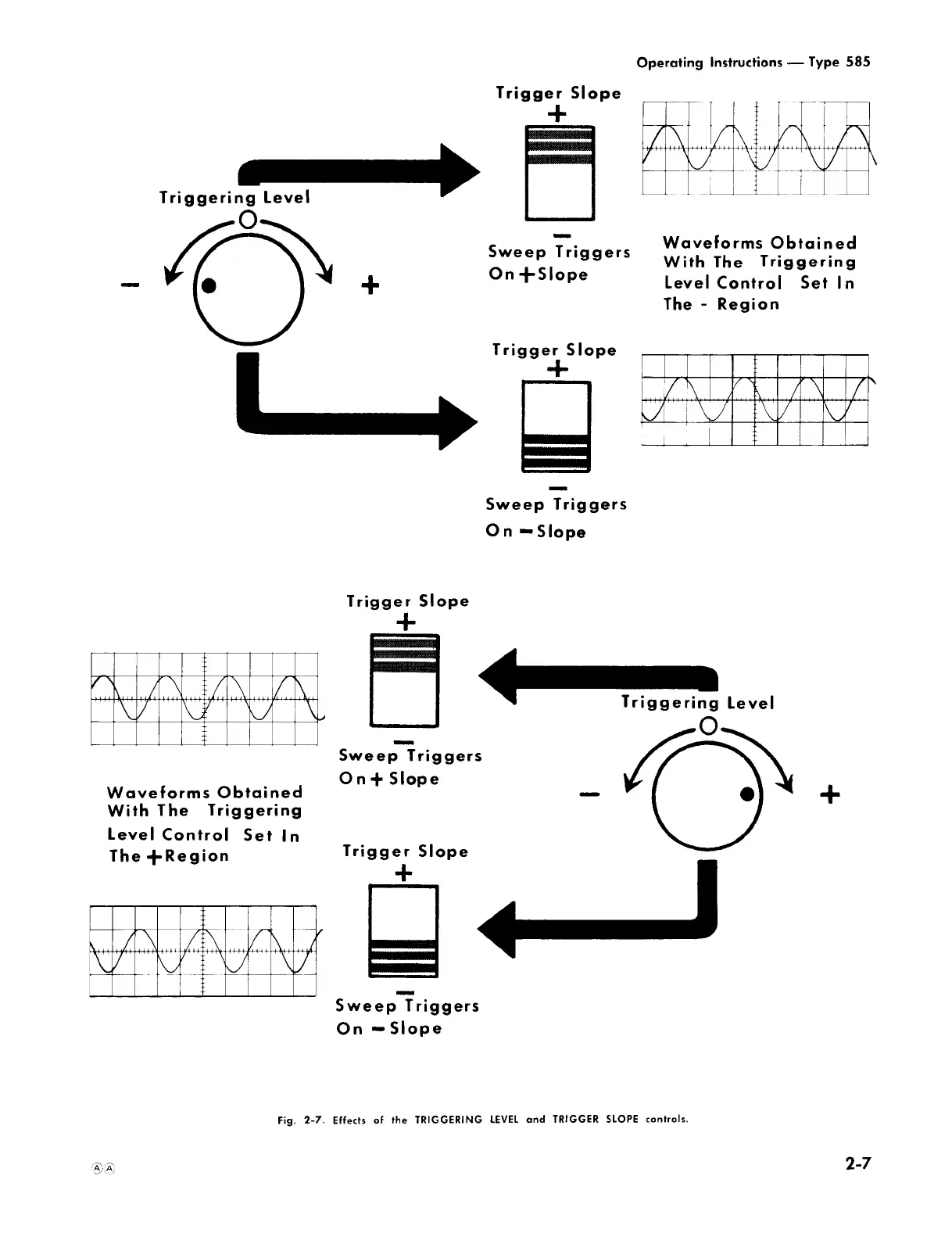

Fig. 2-7. Effects of the TRIGGERING LEVEL and TRIGGER SLOPE controls.
2-7
