Specifications
Table 7: Signal output characteristics (cont.)
Characteristics Description
Harmonic distortion
Output path
DC High BW (See Table 9 on page 11.)
DC High Voltage (See Table 9 on page 11.)
AC Direct (See Table 10 on page 12.)
AC Amplified
(Option AC)
(See Table 11 on page 13.)

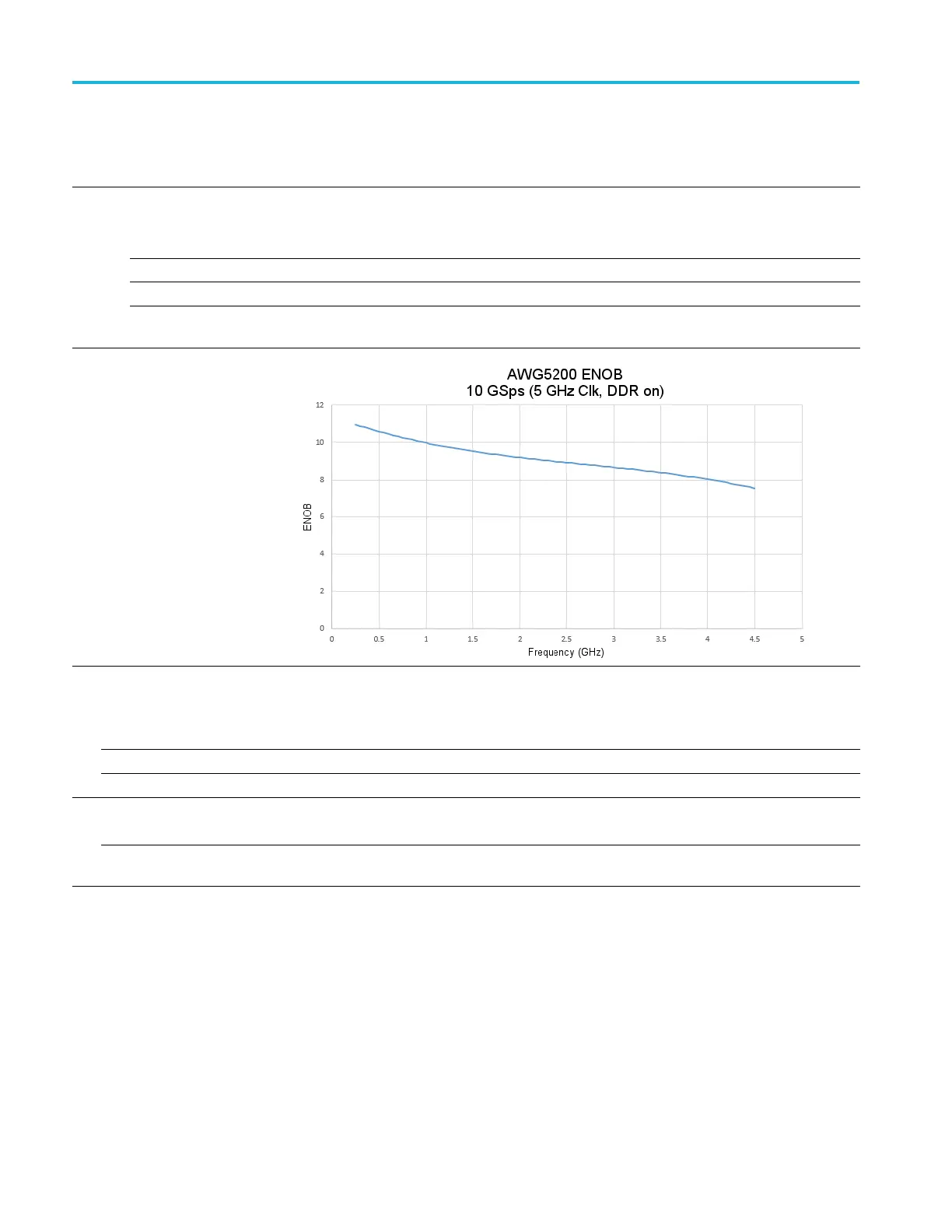

ENOB
SFDR SFDR is the difference in dB between a CW carrier signal and the largest spur, excluding
harmonics, within a defined frequency r ange around the carrier. Measured with a balun and
wi
th output amplitude set to 500 mV.
Op
erating at 2.5 GS/s
(S
ee Table 14 on page 14.)
O
perating at 5 GS/s
O
perating at 10 GS/s
Phase noise
Operating at 2.5 GS/s (See Table 18 on page 15.)
Operating at 5 GS/s or
10 GS/s with DDR enabled
(See Table 19 on page 15.)
10 AWG5200 Series Technical Reference
