Brief procedures
6. From the Wavefo
rm List window, assign the waveform PV_Square.wfmx
to Channel 1.

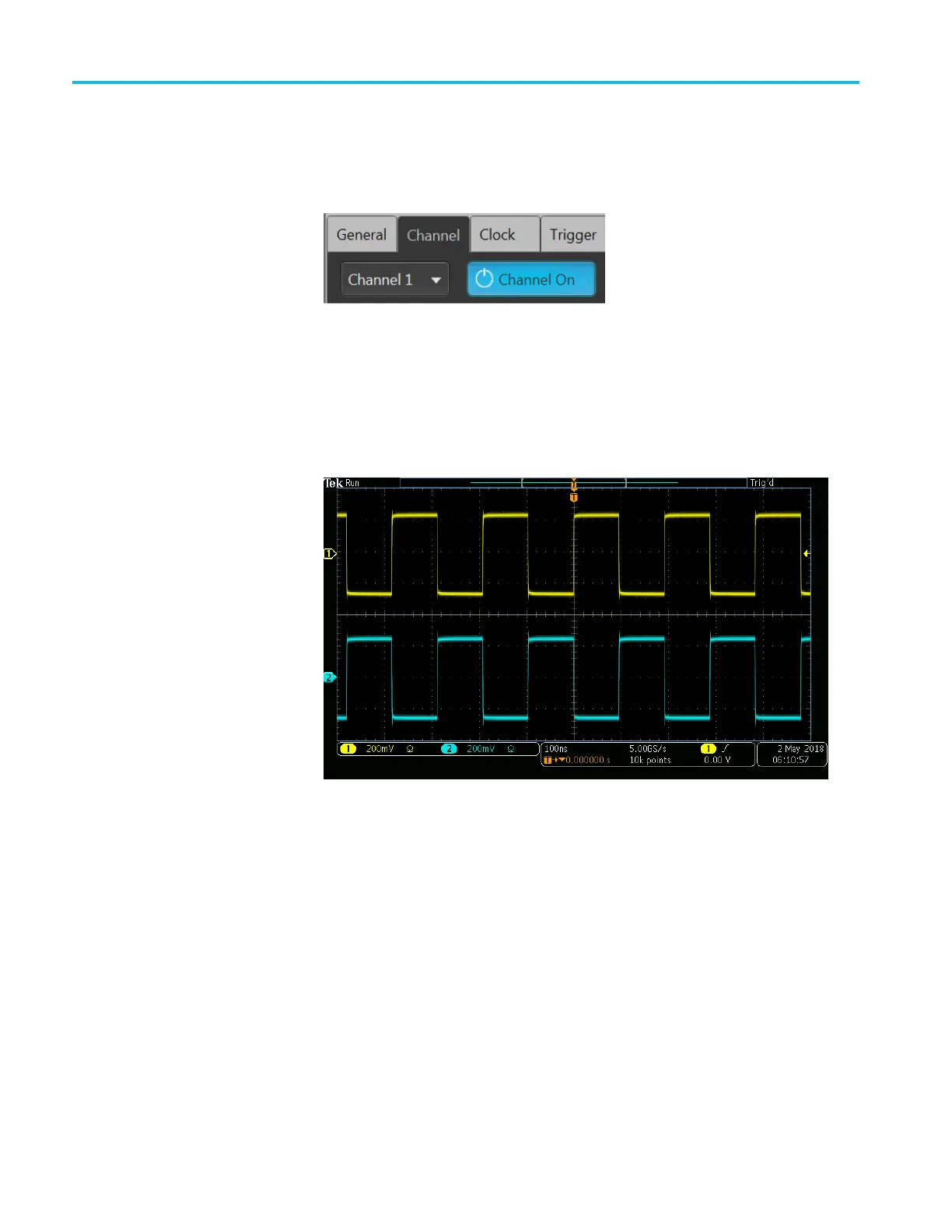

7. Click the Setu
p -> Channel tab and enable Channel 1.
8. Press the AWG front panel All Outputs Off button (or click All Outputs Off
on the Home
screen) to enable the outputs (front panel light off).
9. Click the Play button on-screen or press the button on the front panel of the
AWG.
10. Check that the channel’s waveform is properly displayed on the test
oscillo
scope screen.
11. Press AWG the front panel All Outputs Off button (or click All Outputs Off
on t
he Home screen) to disable the outputs (front panel light on).
12. Repeat steps 3 through 11 until all channels are checked, modifying the
in
structions with the channel number under test.
13. Disconnect the test setup.
32 AWG5200 Series Technical Reference
