Giving Demos of Advanced Oscilloscope Features
7. If you do not want to hold the pan knob
while looking through t he waveform,
use the play/pause feature. Pressing
the play/pause button will cause the
oscilloscope to scroll the waveform
automatically for you.

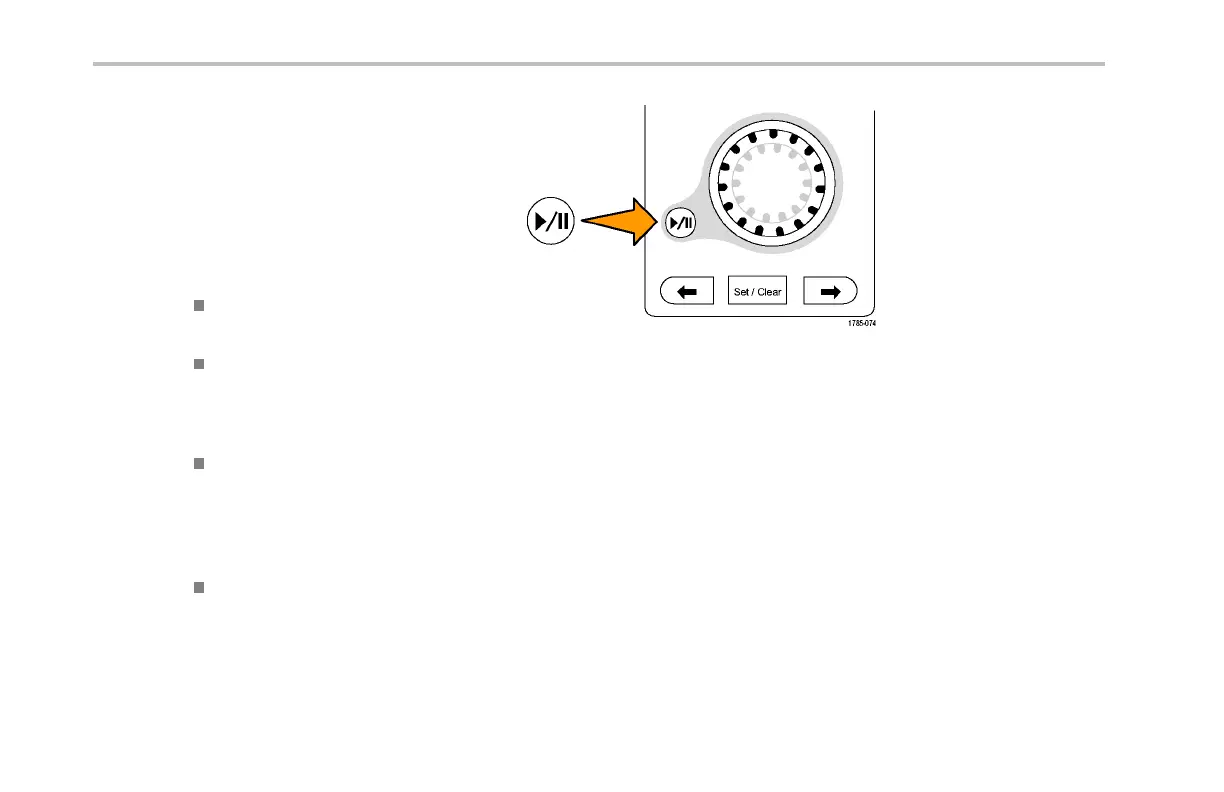

To show this, push the play/pause button.
The waveform should start scrolling.
Play speed is adjusted by turning the
pan knob.
To pan in the other direction, just turn
the pan knob the other wa y to slow the
zoom box down and have it ch ange
direction.
To quickly jump to another portion of
the record and resume playing when
done, turn the pan knob all the way in
that direction. This is pan on top of
play/pause.
Push the play/pause button again
to stop when there is something
(anything) of interest on the screen.
34 Demo 2 Board Instruction Manual
