Giving Demos of A dvanced Oscillosco pe Features

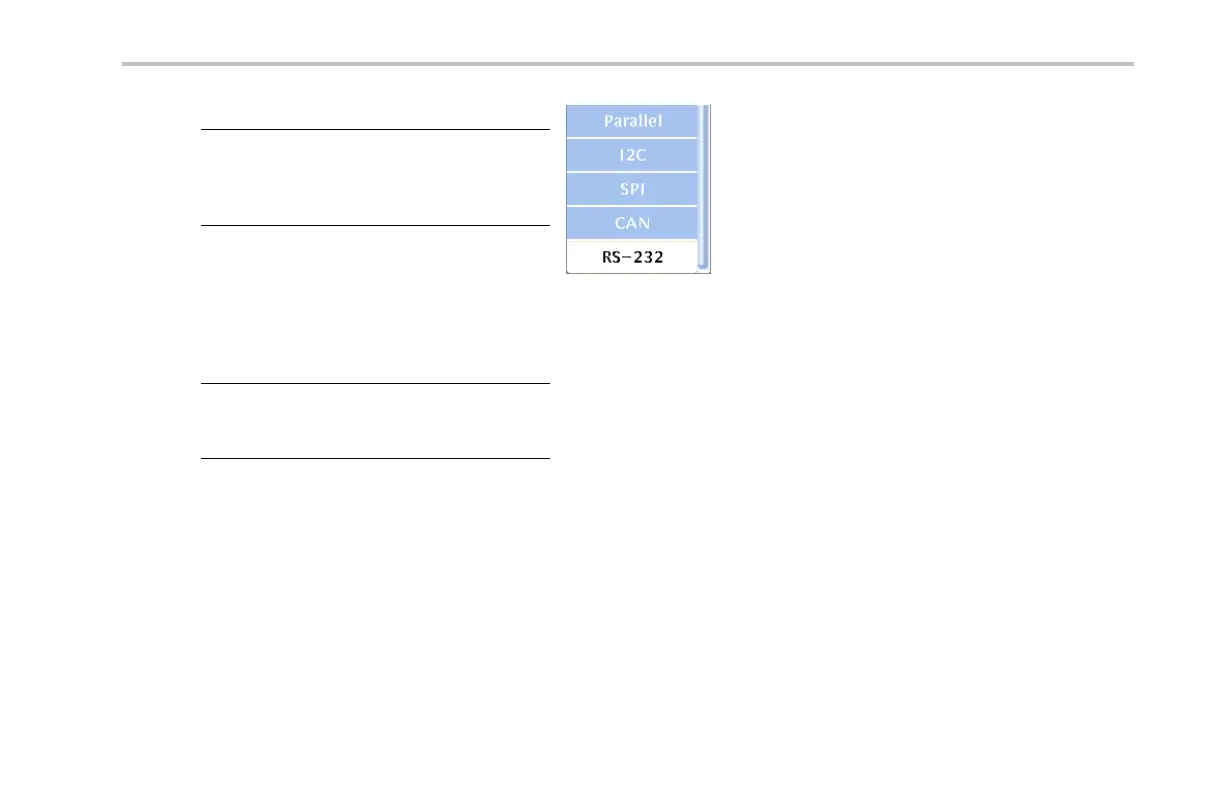

9. Turn mu ltipurpose knob a to select RS-232.
NOTE. If you do not see the RS-232 choice, check
that you have a properly installed the appropriate
DPO2COMP, DPO3COMP, or DPO4COMP
application module in your oscilloscope.
10. Push the lower-bezel Define Inputs button.
Look at the side menu and confirm that
channel 1 is set to Tx Inpu t. If not, set it there
with multipurpose knob a.
NOTE. With MSO oscilloscopes, you can select
both analog and digital channels to m easure TX
and RX signals.
11. Confirm on the lower-bezel Configure button
that the bit rate is set to 96 00. This is the
default value.
12. Push the lower-bezel Bus Display button and
the side-bezel ASCII button.
Demo 2 Board Instruction Manua l 63
