Giving Demos of Advanced Oscilloscope Features

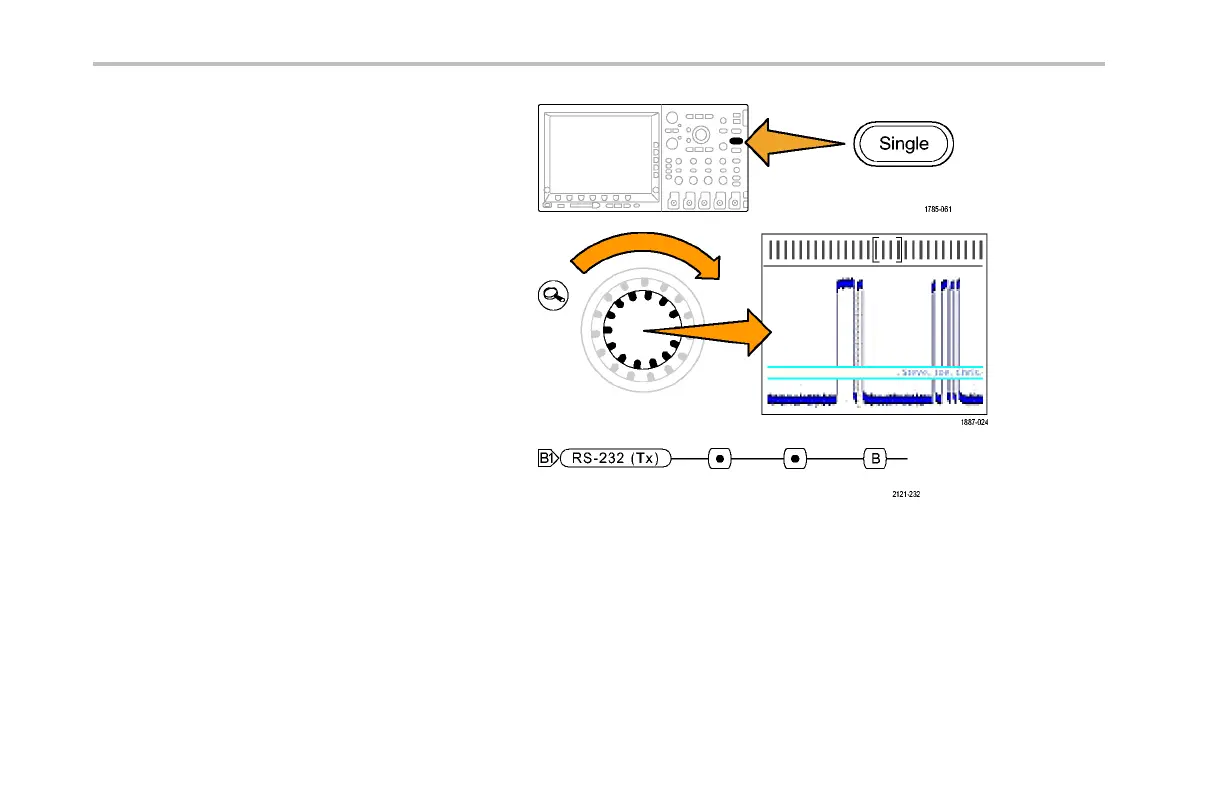

13. Push Single.
14. Turn the zoom (inner) knob of the Wave
Inspector to zoom in o n the decoded bus
display until you can read the ASCII characters
(e.g. 10 X).
Notice th at each box contains a character.
64 Demo 2 Board Instruction Manual
