Giving Demos of MSO4000 Features

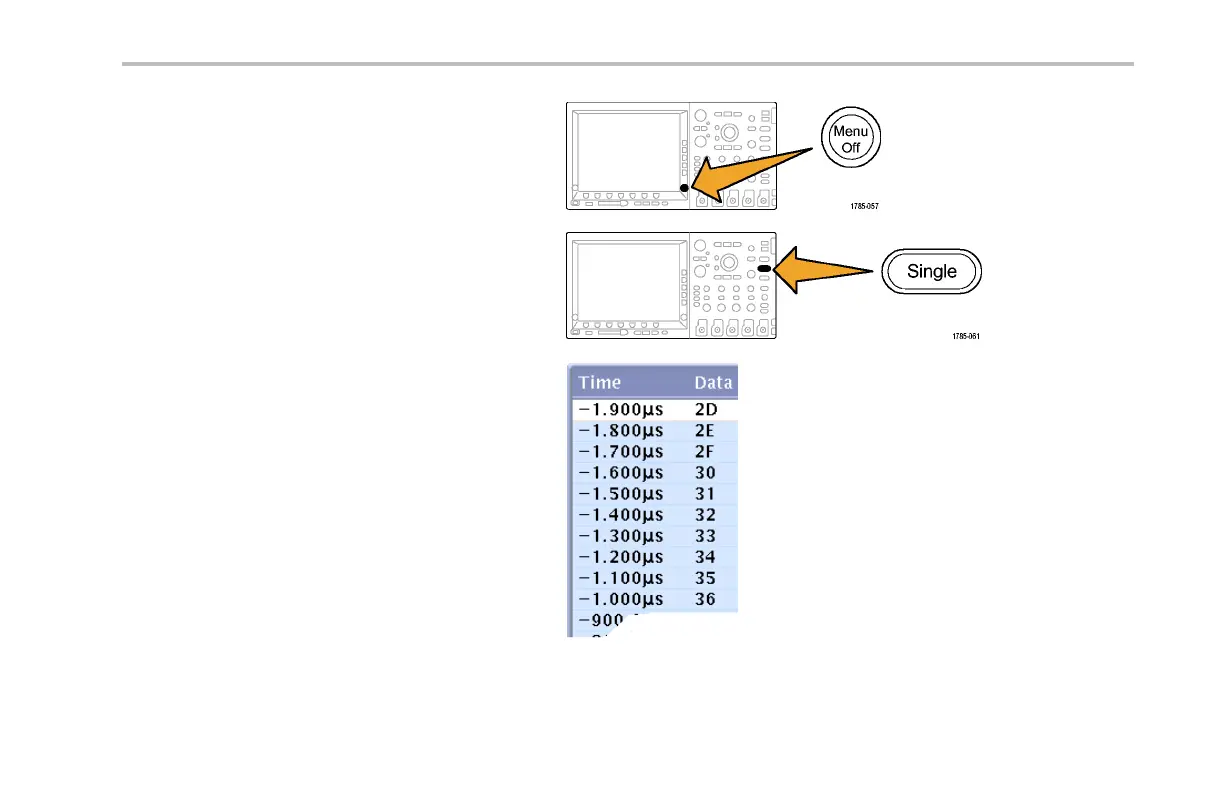

13. Push Menu Off to the lower-right of the display
to remove the side menu.
14. Take another acquisition by pressing the
Single button.
Notice that the oscilloscope decodes the bus
every time it sees a rising clock edge.
15. Push the lower-bezel Event Table button.
Push the side-bezel Event Table button select
On.
Notice that each data value in the table is
displayed with its associated time stamp. The
MSO4000 can export these values to a CSV
file.
16. Push Event Table to Off.
Tektronix 4000 Oscilloscope Demo In struction Manual 83
