Locating Signals

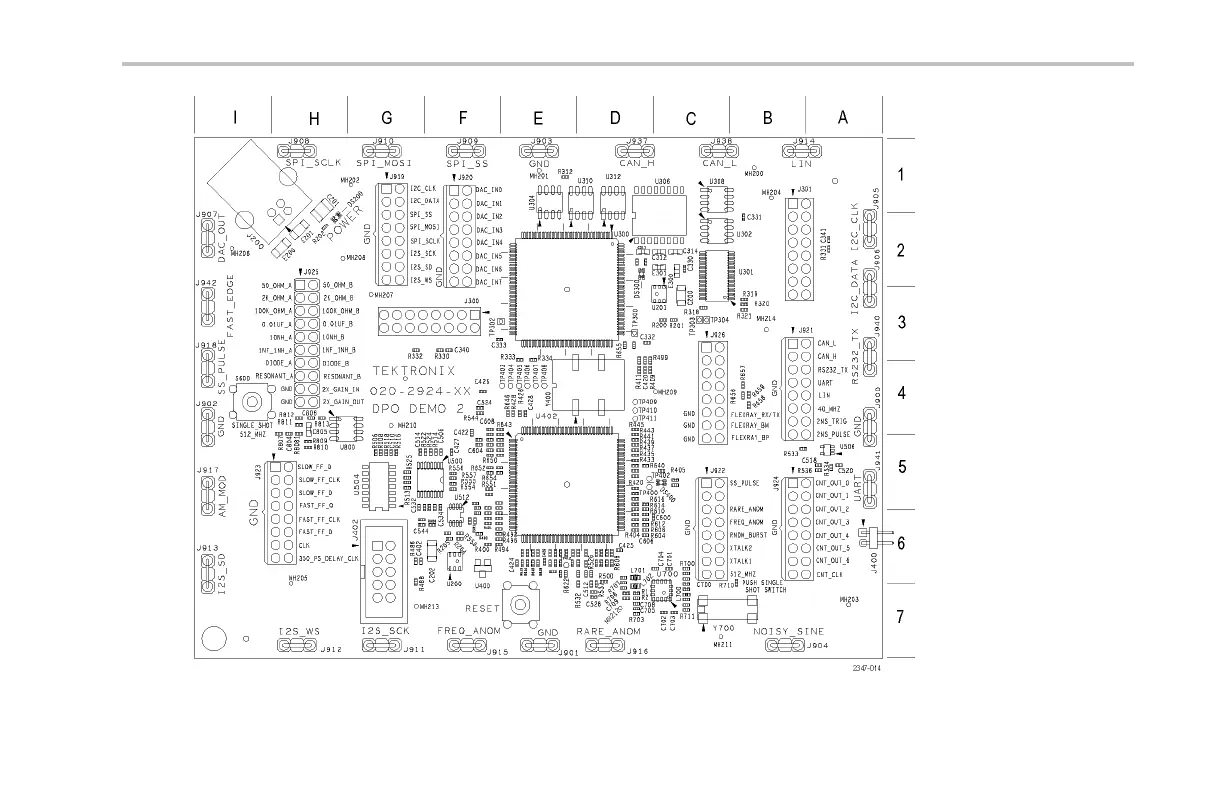

Figure 1: Tektron ix Demo 2 board and lo cator grid
Demo 2 Board Instruction Manua l 113
