Tektronix DPO4034 Demo Instruction Manual

Giving Demos of MSO4000 Features
3. Turn multipurpose kno b a to select Bus.
4. Push the lower-bezel Data menu button.

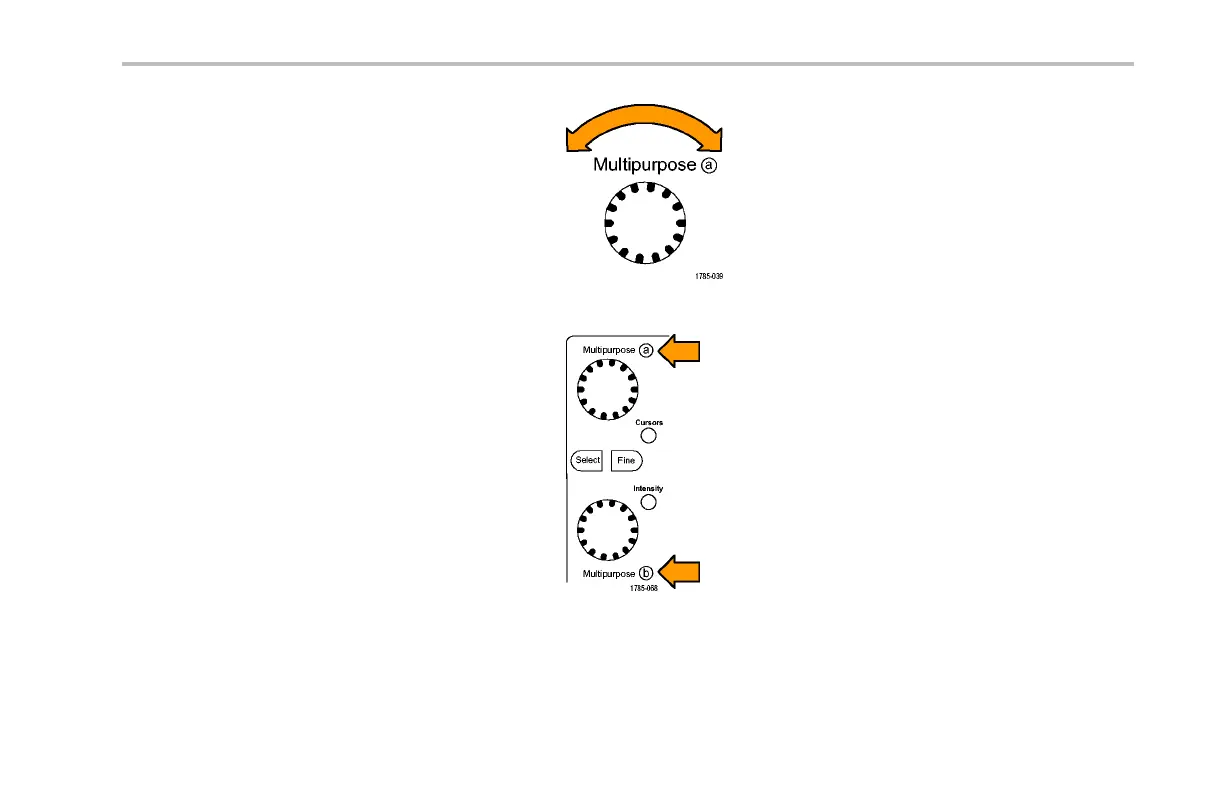

5. Turn multipurpose knobs a and b to enter a
value of all 7F in Hex (all 1’s in Binary). You
are mea suring a counter. The oscilloscope
will trigger when the counter reaches a stat e
where all channels reach the 1 state (green).
Tektronix 4000 Oscilloscope Demo In struction Manual 85
