Tektronix DPO4054 User Manual

Analyze Waveform Data

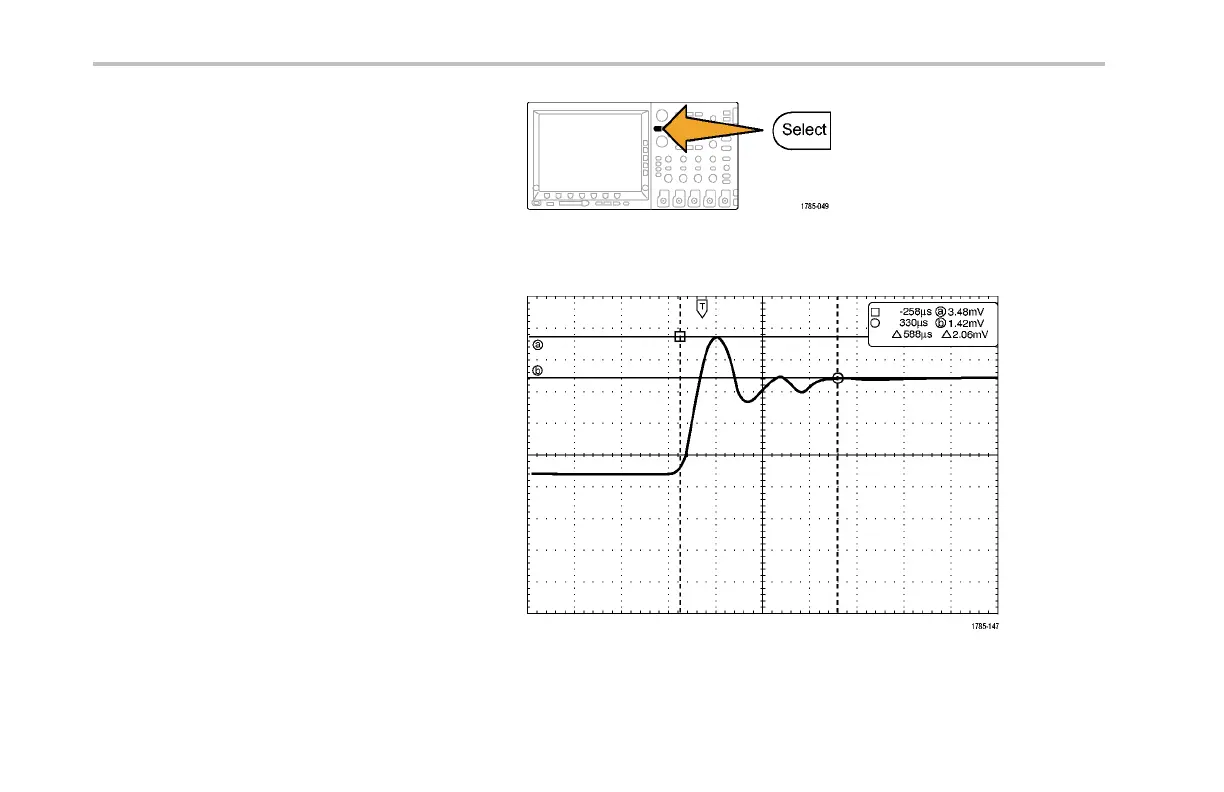

7. Push Select.
This makes the vertical cursors active and
the horizontal ones inactive. Now, as you
turn the multipurpose knobs, the vertical
cursors will move.
Push Select again to make the horizontal
cursors active again.
8. View the cursor an d the cursor re adout.
You can take timing measu rement s
with cursors on digital channels, but not
amplitude measurements.
210 MSO4000 and DPO4000 Series Oscilloscopes User Manual
