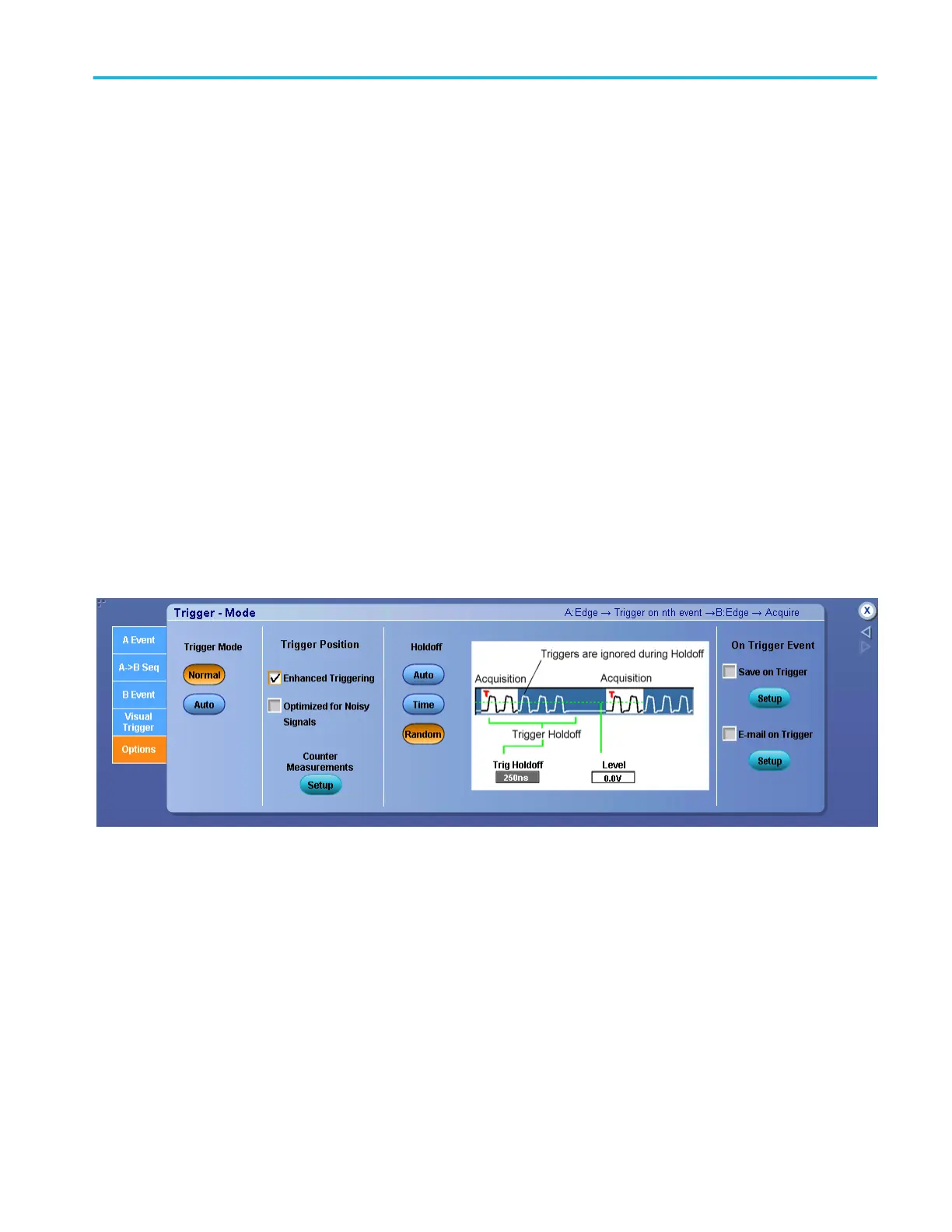

Overview. Use the controls in this window to set up the trigger mode.
For information on the controls, click the buttons.
■
Trigger Summary
■
Normal Trigger
■
Auto Trigger
■
Trigger Position
■
Auto Holdoff
■
Timed Holdoff
■
Random Holdoff
■
Trig Holdoff
■
Level
■
Save on Trigger
■
E-mail on Trigger
■
E-mail Setup
■
Counter Measurements
To use.
■
To set the Trigger Mode, click either Auto or Normal.
■
To enhance trigger positioning, click in the option boxes.
■
To set the Trigger Holdoff time manually, click Time, and then use the multipurpose knob to set the holdoff time. The Holdoff
range is 250 ns (minimum holdoff available) to 100 s (maximum holdoff available).
■
To enable Save on Trigger, click the check box.
■
To enable E-mail on Trigger, click check box.
■
To set up the e-mail on event parameters, click Setup. Set the A Event trigger level using the A Trig Level control and the
multipurpose knob.
