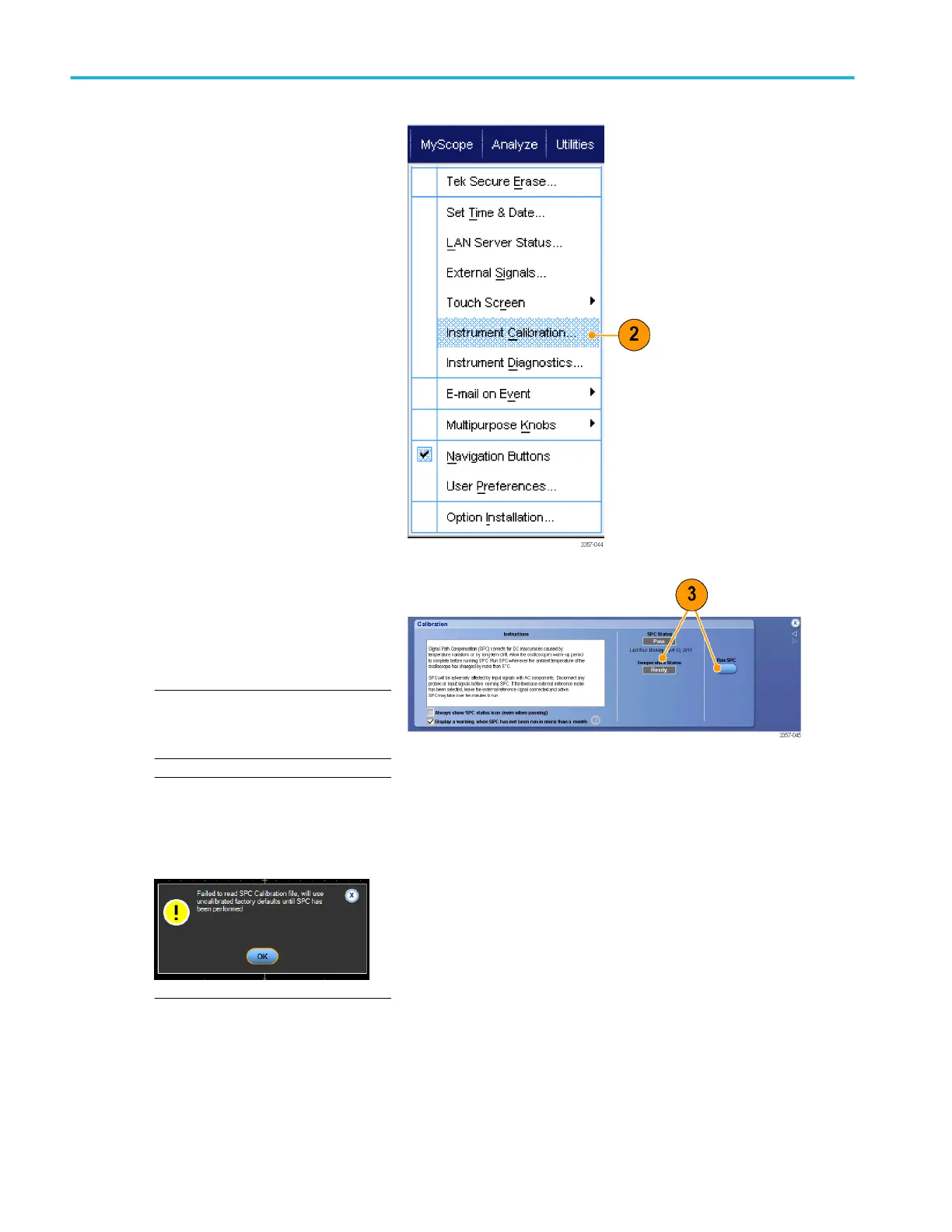

2. Select Instrument Calibration.

Utility menu on DPO70000SX

instruments

3. When the Temperature Status changes

to Ready, click Run SPC to start the

calibration. Calibration may take 10 to

15 minutes.

NOTE. Before running the SPC

calibration, remove all channel input

signals.

NOTE. If you use a drive that has not had

SPC run while in the current instrument,

you will see a no prior SPC warning

message. If you see this warning, run

SPC.

Calibration menu on DPO70000SX instruments

Vertical setups
