Install your ins

trument

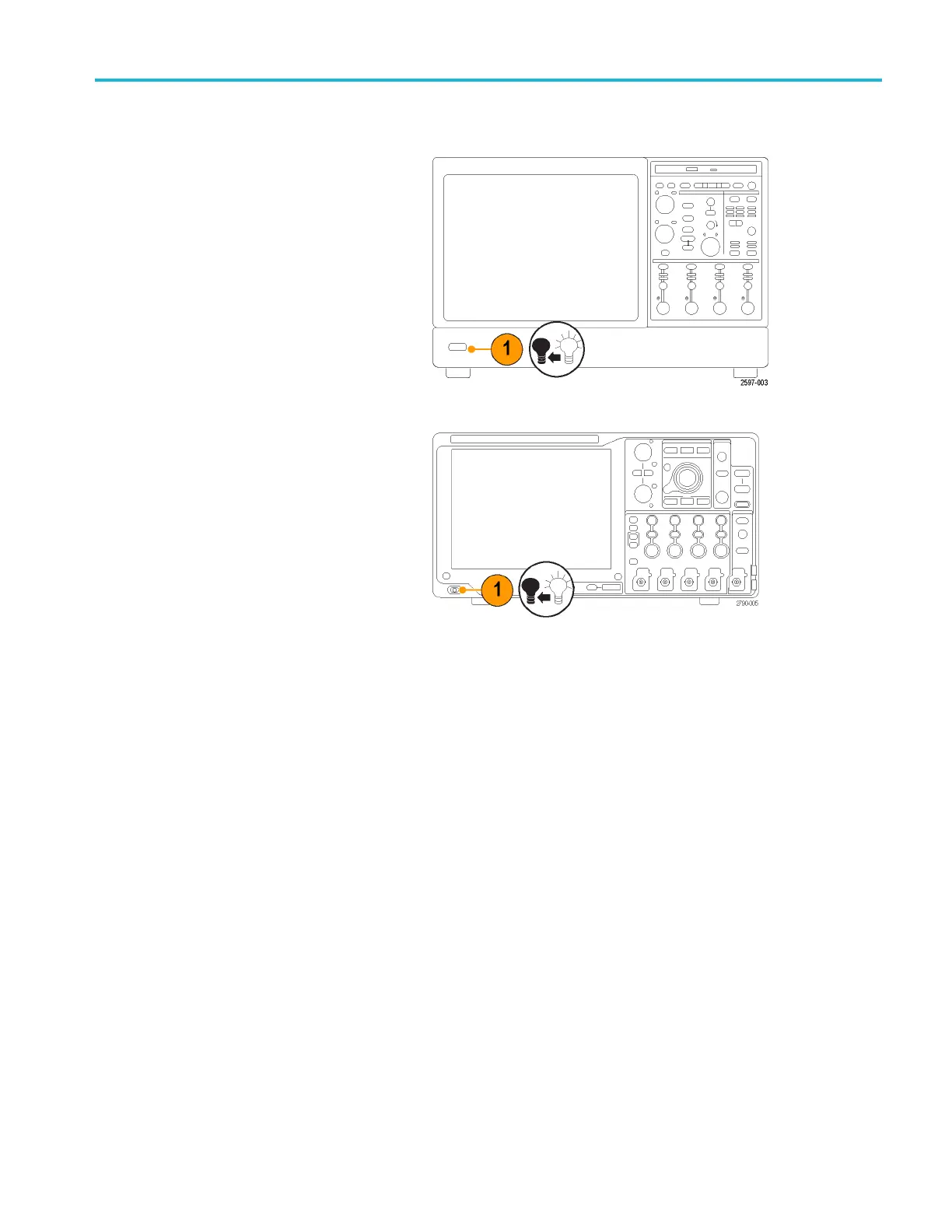

Powering off the instrument

MSO/DPO70000DX, M SO/DPO70000C, and DPO7000C Series

MSO5000B and DPO5000B Series

MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 9
