Getting acquain

tedwithyourinstrument

Getting acqua

inted with your instrument

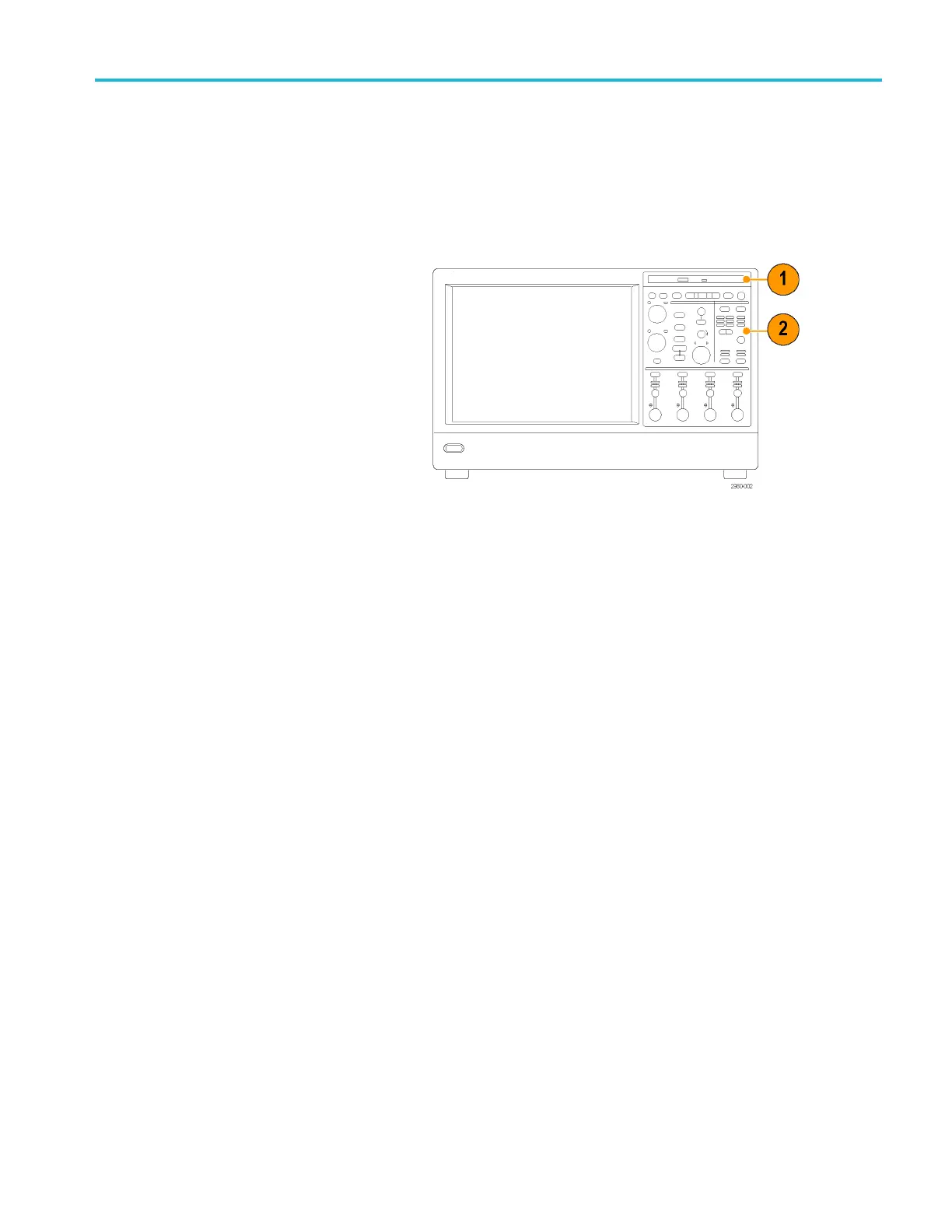

Front p anel

MSO/DPO70000DX, MSO/DPO70000C, and DPO7000C

1. DVD/CD-RW drive

2. Front panel controls

MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 17
