Tektronix DPO5104 User Manual

Display a Wavefo
rm

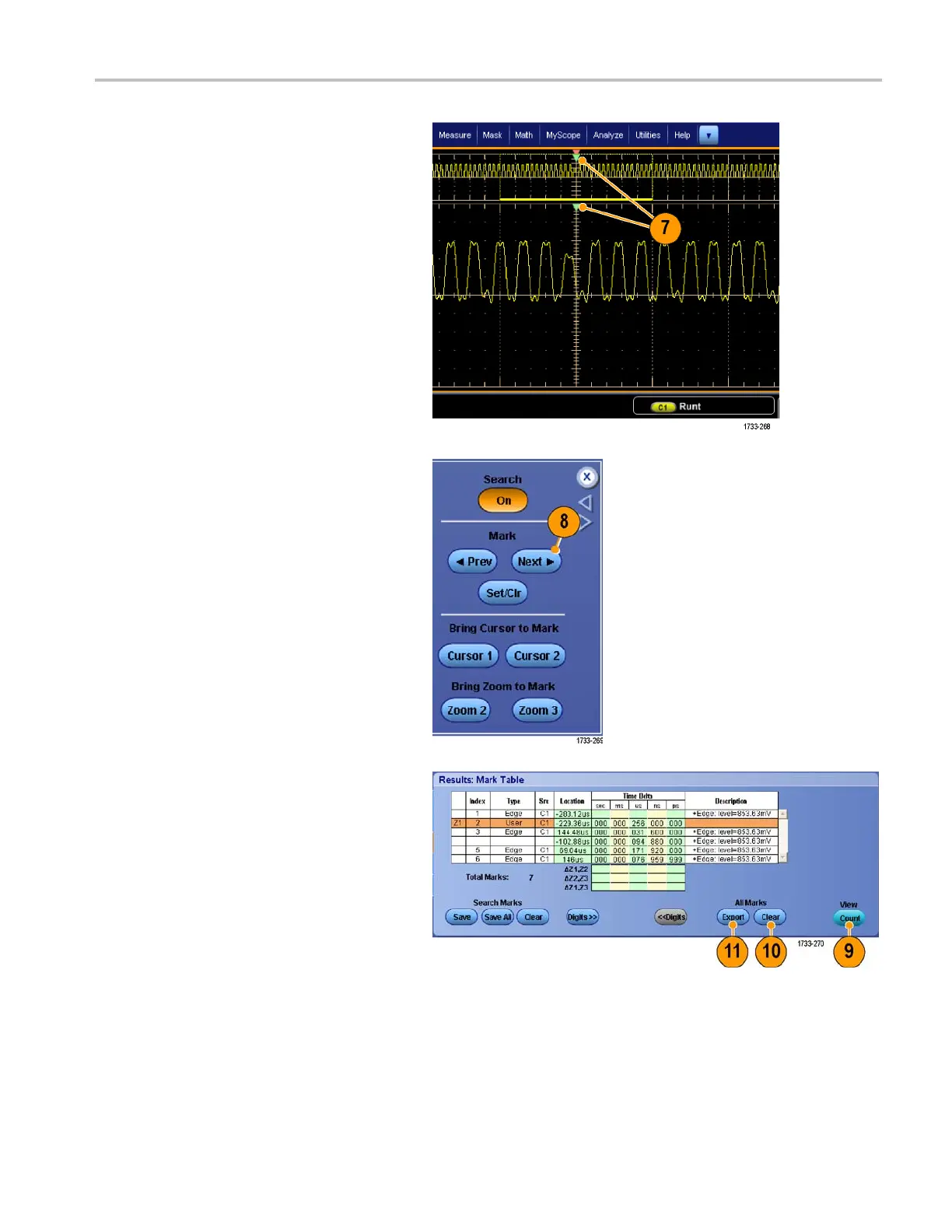

7. O n the screen, triangles show the
location of automatic marks and triangles
with a white ou
tline show the custom
(user-defined) locations. These appear
on both normal and zoomed waveform
views.
8. Q uickly investigate y our waveform by
moving from mark to mark with the Next
( →)orPrev(←) arrow button. No other
adjustments are needed.
9. To toggle between the display of search
event
s counts or Marks time, select the
Results tab and press View Count.
10. To clear all marks from the table, press
All Marks Clear.
11. To export the Mark Table to a file, p ress
All M
arks Export.
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 109
