Start Link Training
To start Link Training do the following steps:

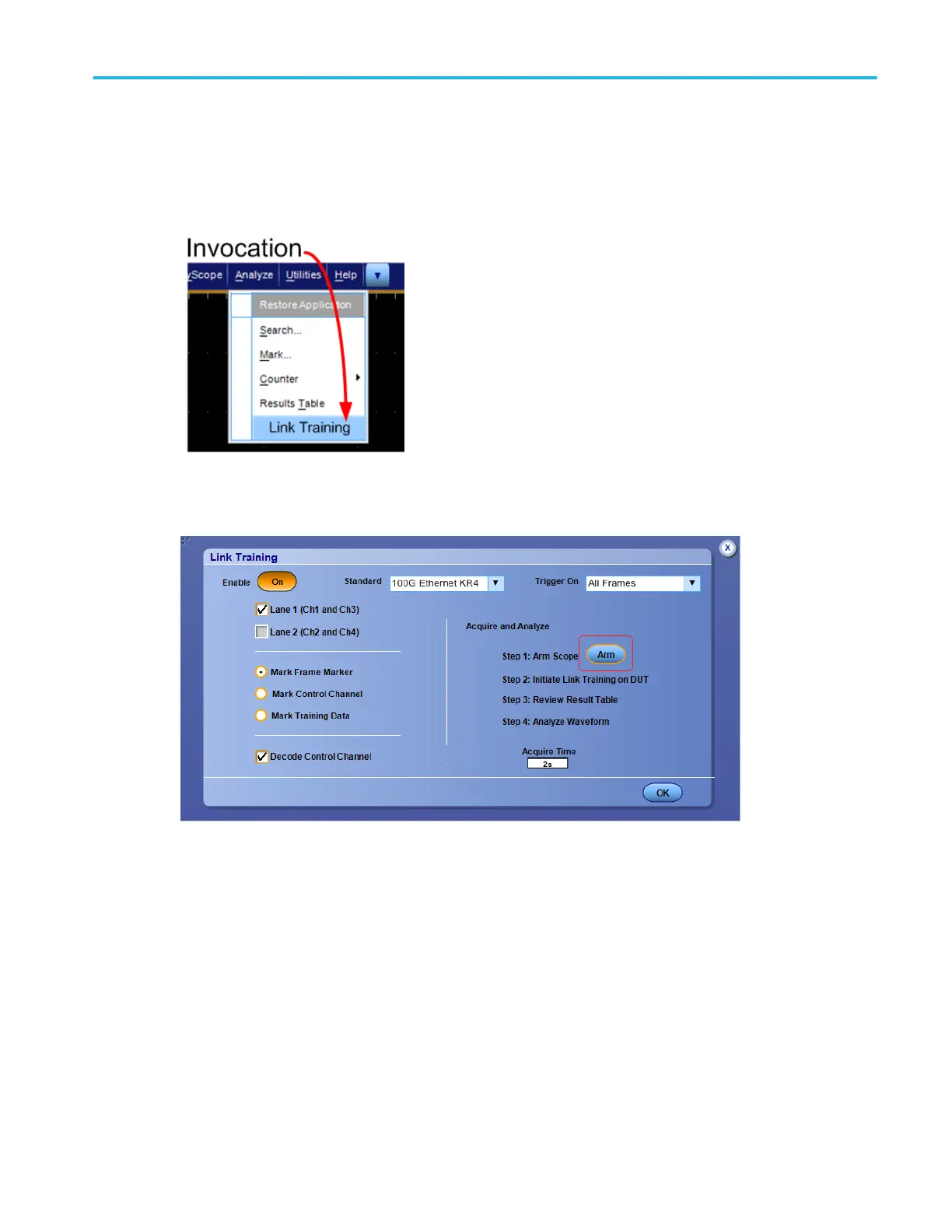

1. From the Menu Bar select Analyze > Link Training.
2. Press the Arm button.
3. Start Link Training on the device under test (DUT).
Starting Link Training on the DUT is DUT-specific, but is typically done from a command line console program.
LinkTraining
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 213
