Export a mark table

From the Analyze menu, select Search; then open the Results tab.

Overview

Use these controls to export the Mark Table to a file.

To use

■

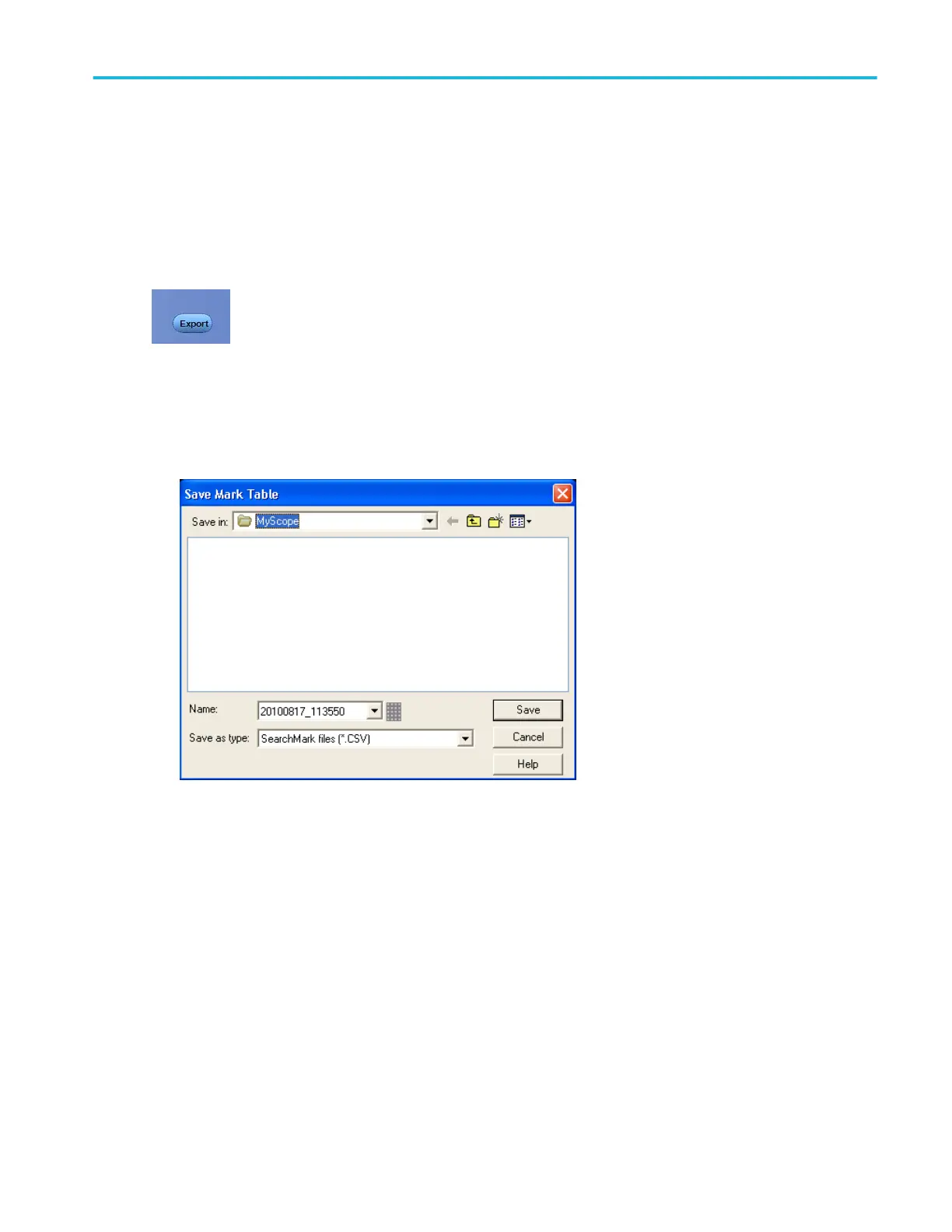

Export. Click this button to open the Save Marks Table dialog box and export the table to a file in CSV format.
