To use. Fixed License

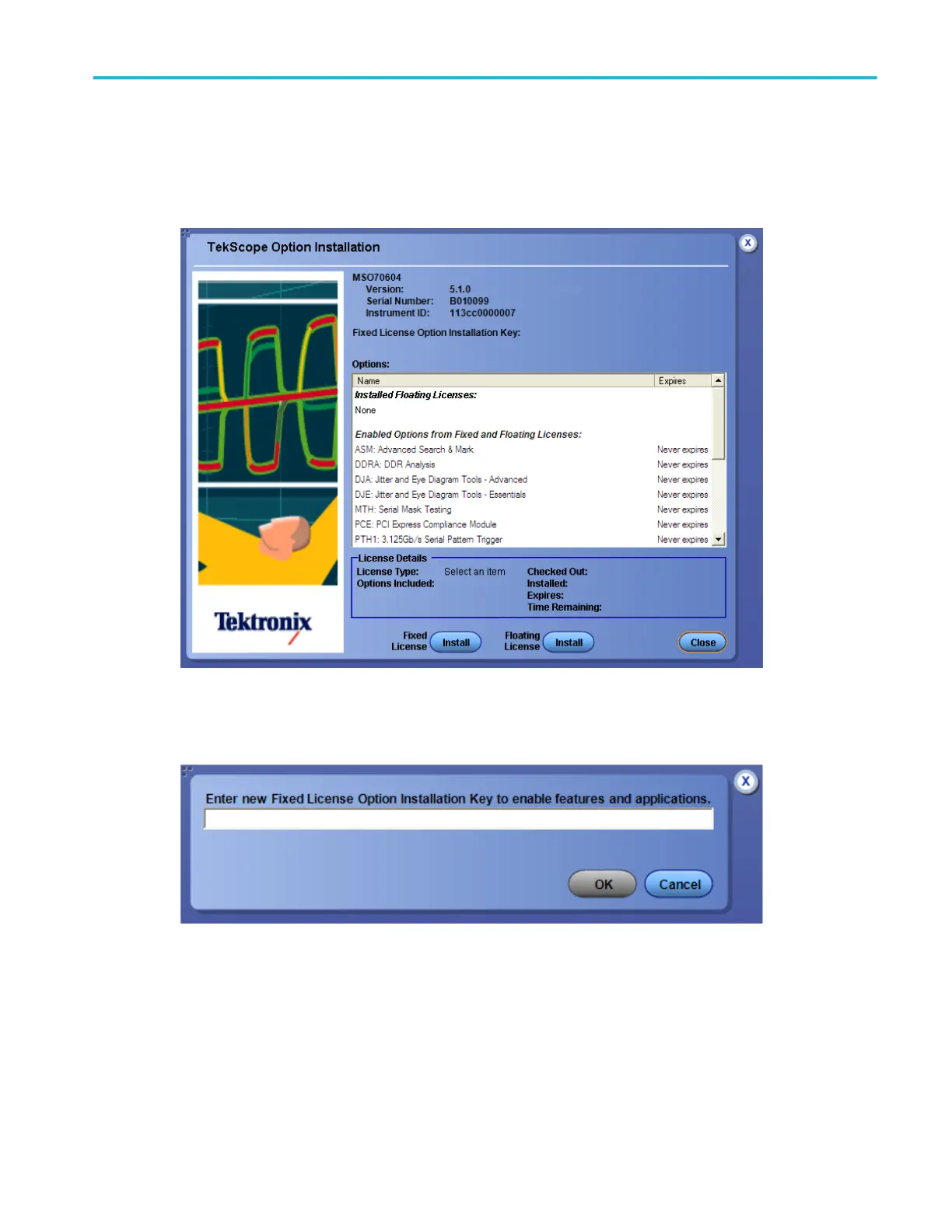

1. Click the Install button next to Fixed License.

2. Enter the option installation key (provided by Tektronix) in the Options dialog box.

3. Click OK. On successful installation a dialog box appears. Reboot the instrument for the changes to take effect.
