Acquisition

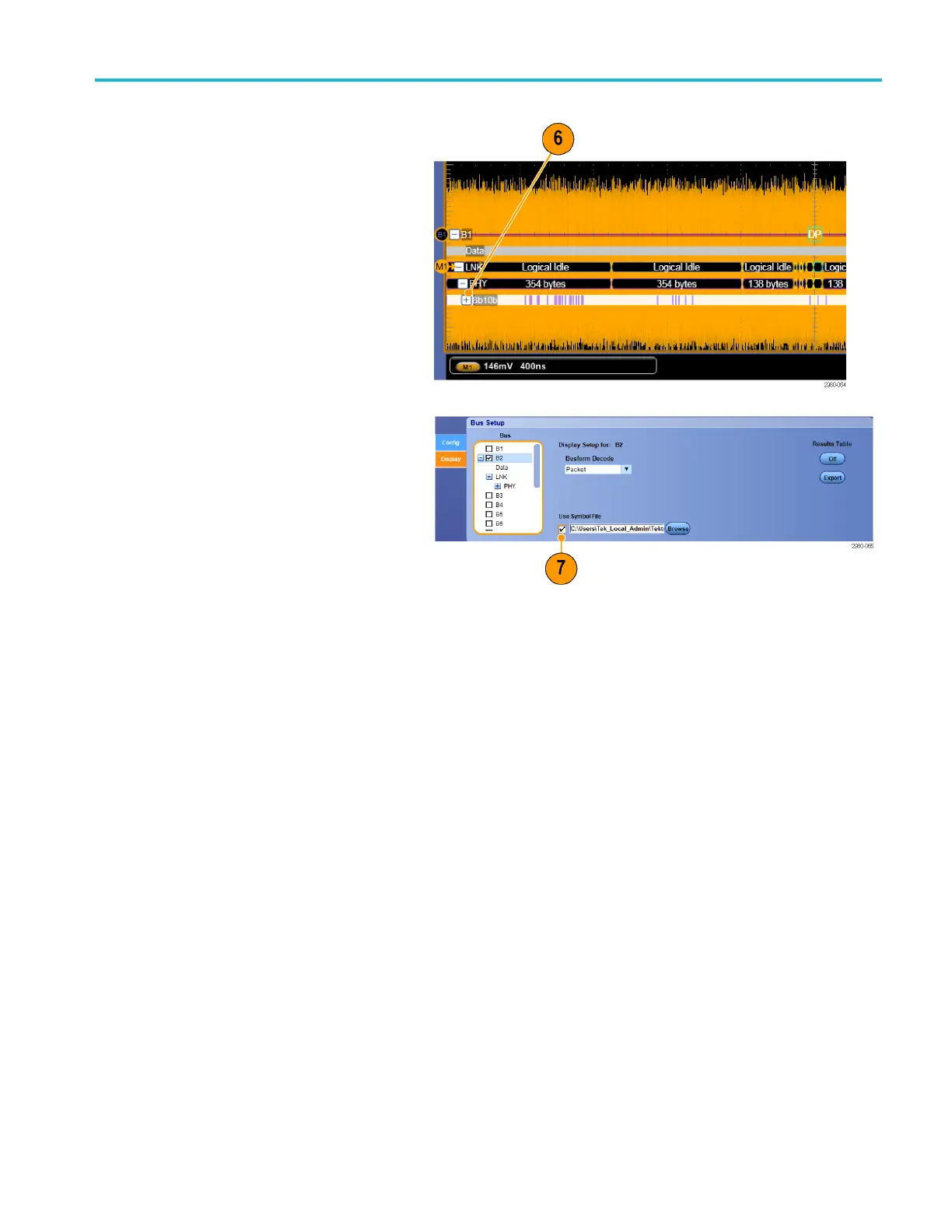

6. Bus views may al

so be added or removed

from the display by clicking on the + box

or - box in the display. Available views

may include Tr

ansaction/transport,

link/framing/packets,

physical/bytes/symbols, and bit

level.

7. If using a symbol table, check Use

Symbol File.ClickBrowse and browse

to the sym

bol table ﬁle.

For some buses other settings are

available. Set the other settings as

appropri

ate for your bus.

See the online help for additional help

setting up a bus.

MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 59
