Tektronix DPO70000 Series Quick Start User Manual

Application Exa
mples

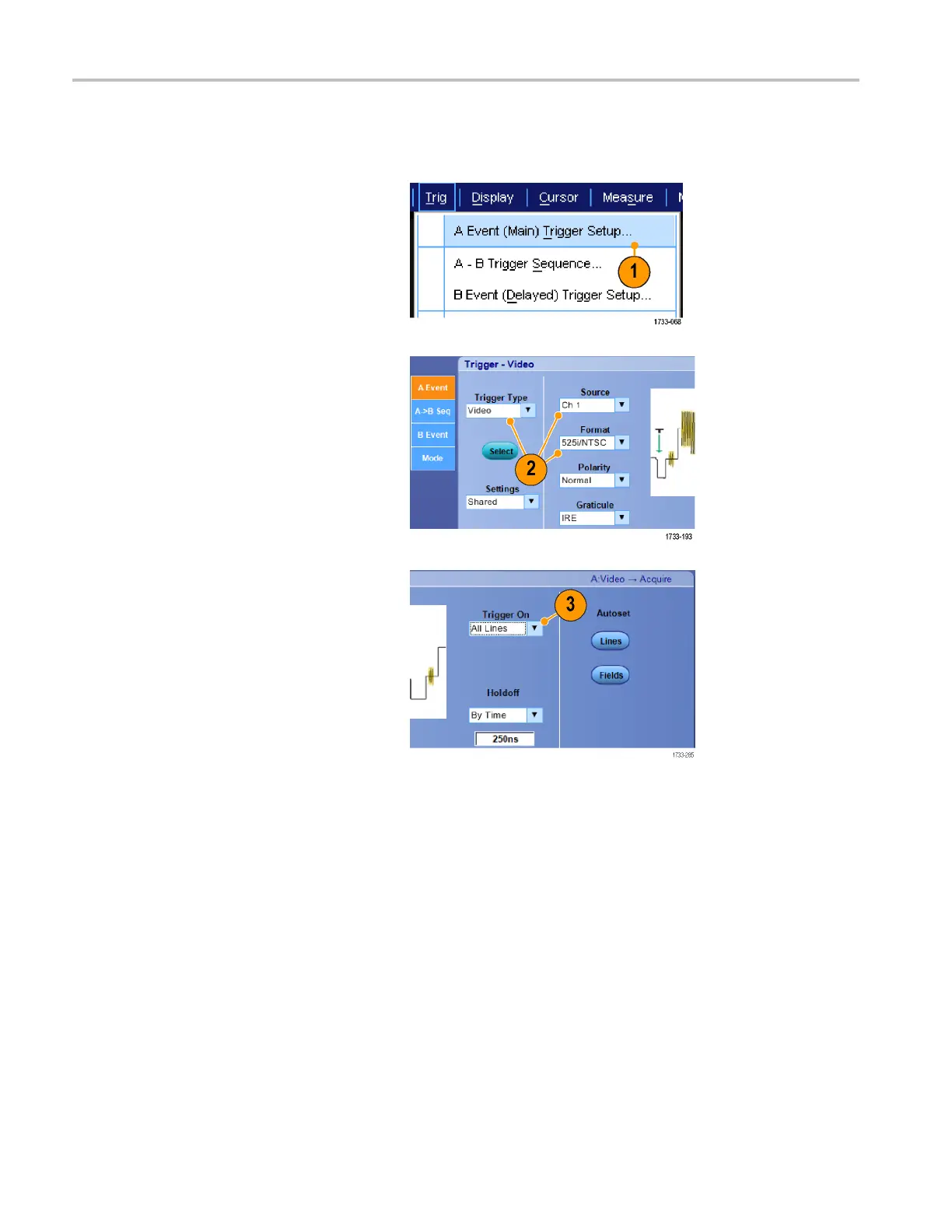

Triggering on Lines
To look at the video lines in the field:
1. Select Trig > A Event (Main) Trigger
Setup....
2. Set the A trigger type and source in the
AEventtab
.
Select Format > 525i/NTSC.
3. Select Tr igger On > All L ines.
130 DPO7000 Series and DPO /DS A70000/B Series Quick Start User Manual
