Multi-instrument power on. During the start-up process the instrument checks to see if instruments are connected in a Multi-
instrument configuration. If instruments are not connected, the instrument powers up in stand-alone mode. If instruments are
connected, the configuration is validated. If the configuration is not valid, guidance is provided to help you create a valid
configuration.
NOTE. After successful power on of your multi-instrument system, wait for the warm-up time to complete, and then run Signal
Path Compensation.

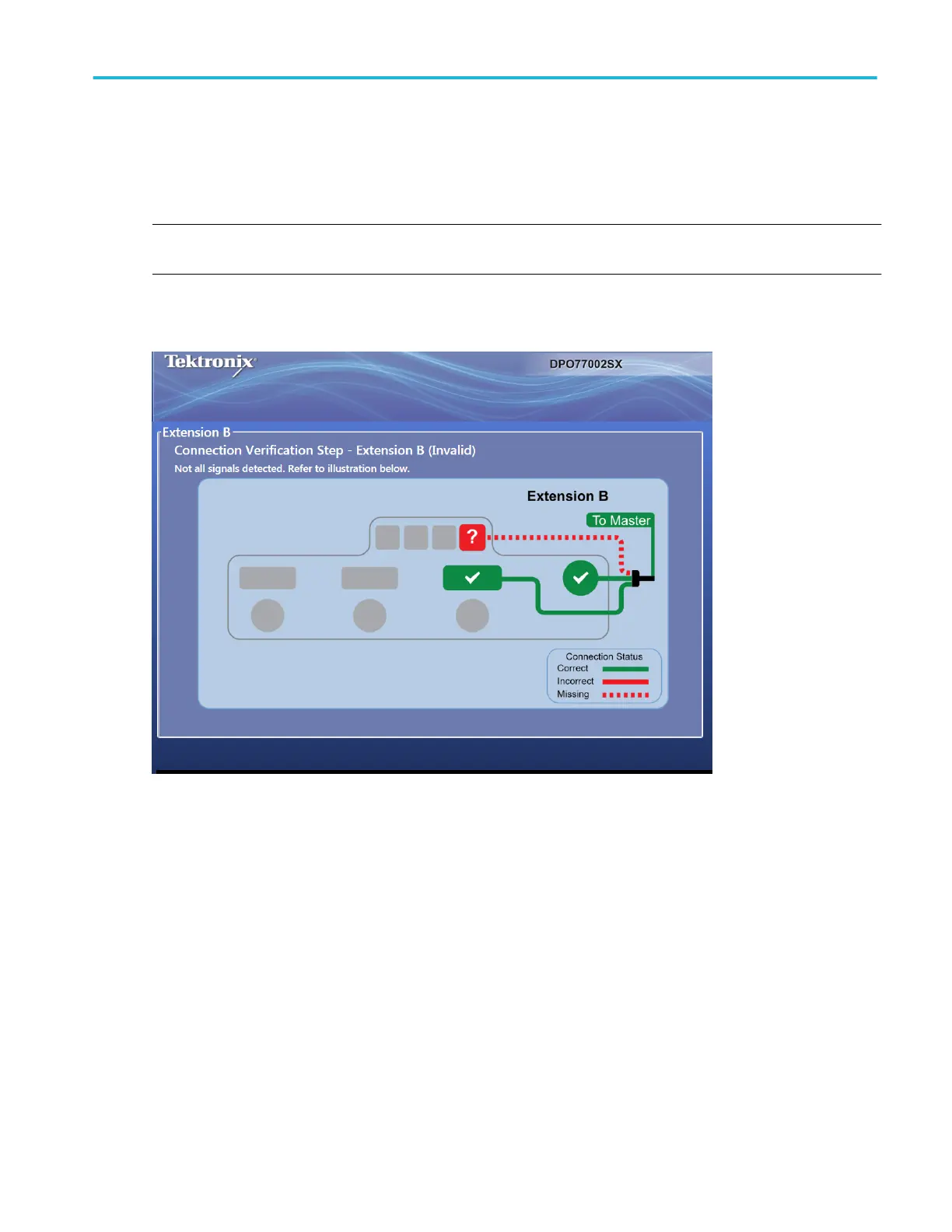

The following image shows an extension with a connection that is invalid and provides guidance to correct the connection
(provide the missing connection to the master).
The following image shows a master connected incorrectly and provides guidance to fix the problem (provide the missing
connection to the extension).
About Tektronix oscilloscopes
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 53
