Pinpoint trigge

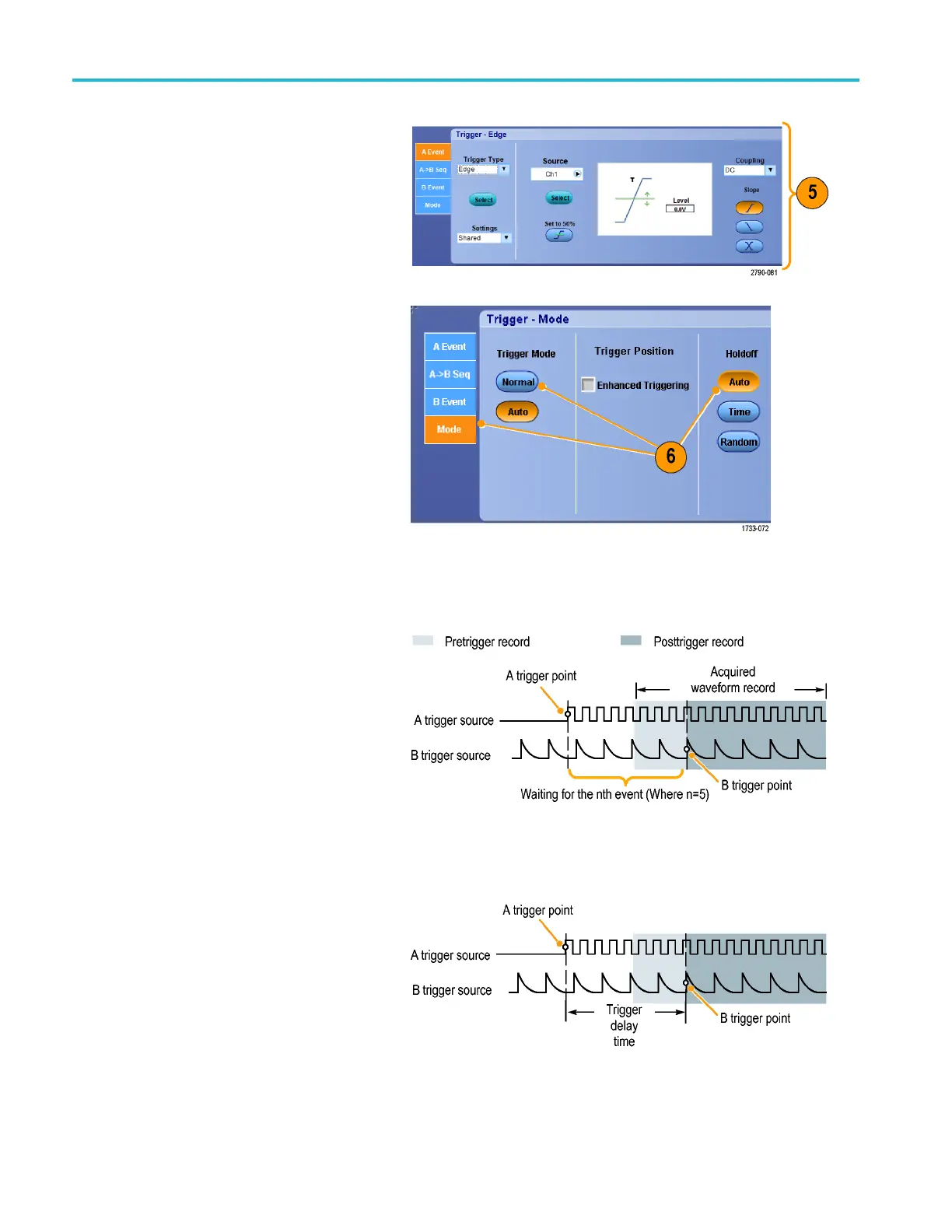

5. Set the B trigger characteristics in the B

Event (Delayed) tab.

6. Select Normal Trigger Mode and Auto

Holdoff in t

he Mode tab.

Trigger on B Event

The A trigger arms the instrument.

Posttrigger acquisition starts on the nth B

event.

B Trigger After Delay Time

The A trigger arms the instrument.

Posttrigger acquisition starts on the ﬁrst B

edge after the trigger delay time.

76 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
