Tektronix DSA70804B User Manual

Pinpoint Trigge
rs
Triggering on a Parallel Bus
Locate problems by triggering on a parallel bus. M SO instruments can use digital channels as components of a parallel bus.
But MSO5000, DPO5000, and MSO70000 instruments can use a parallel bus .

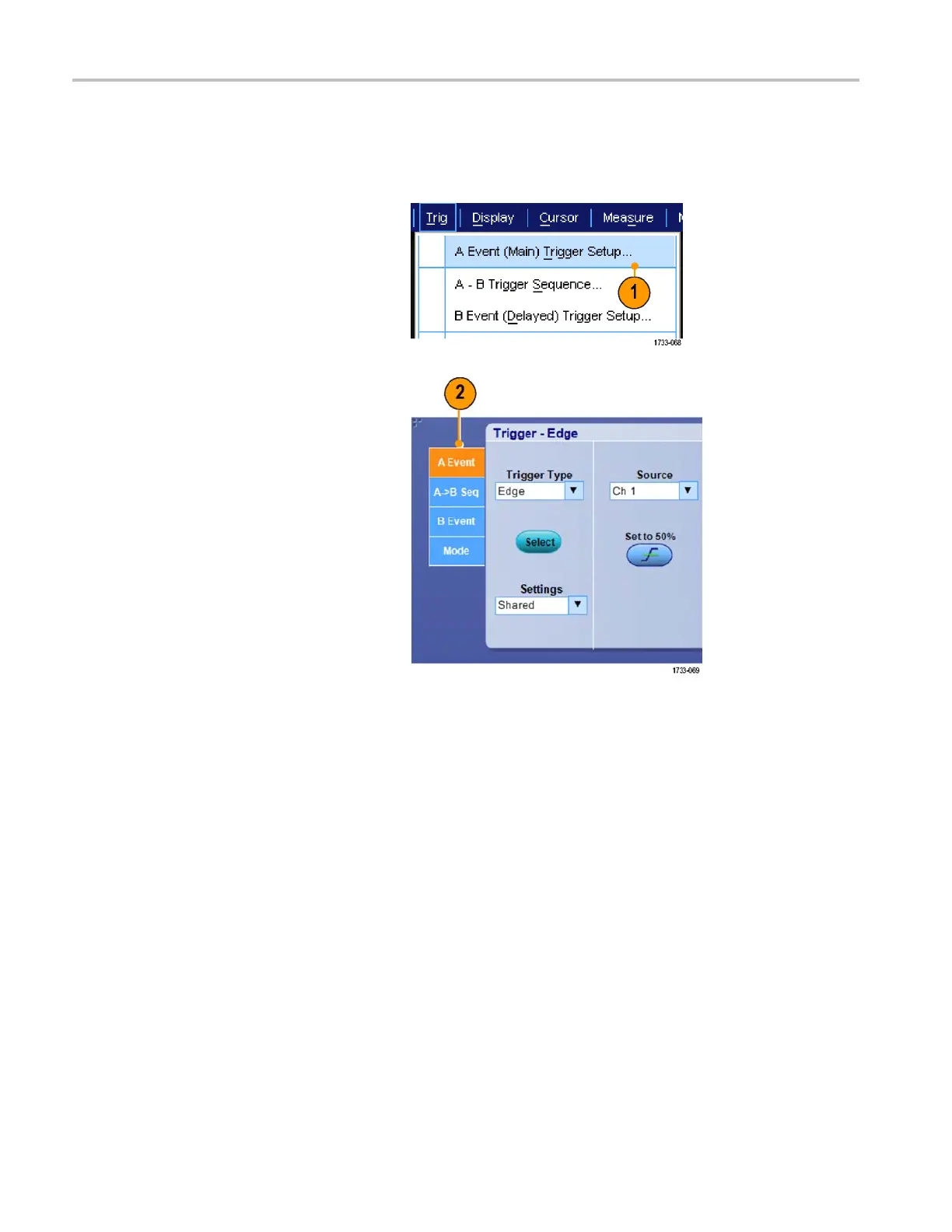

1. Set up a parallel bus. (See page 50,
Setting Up a Bus.) Select Trig > A Event
(Main) Trigger Setup....

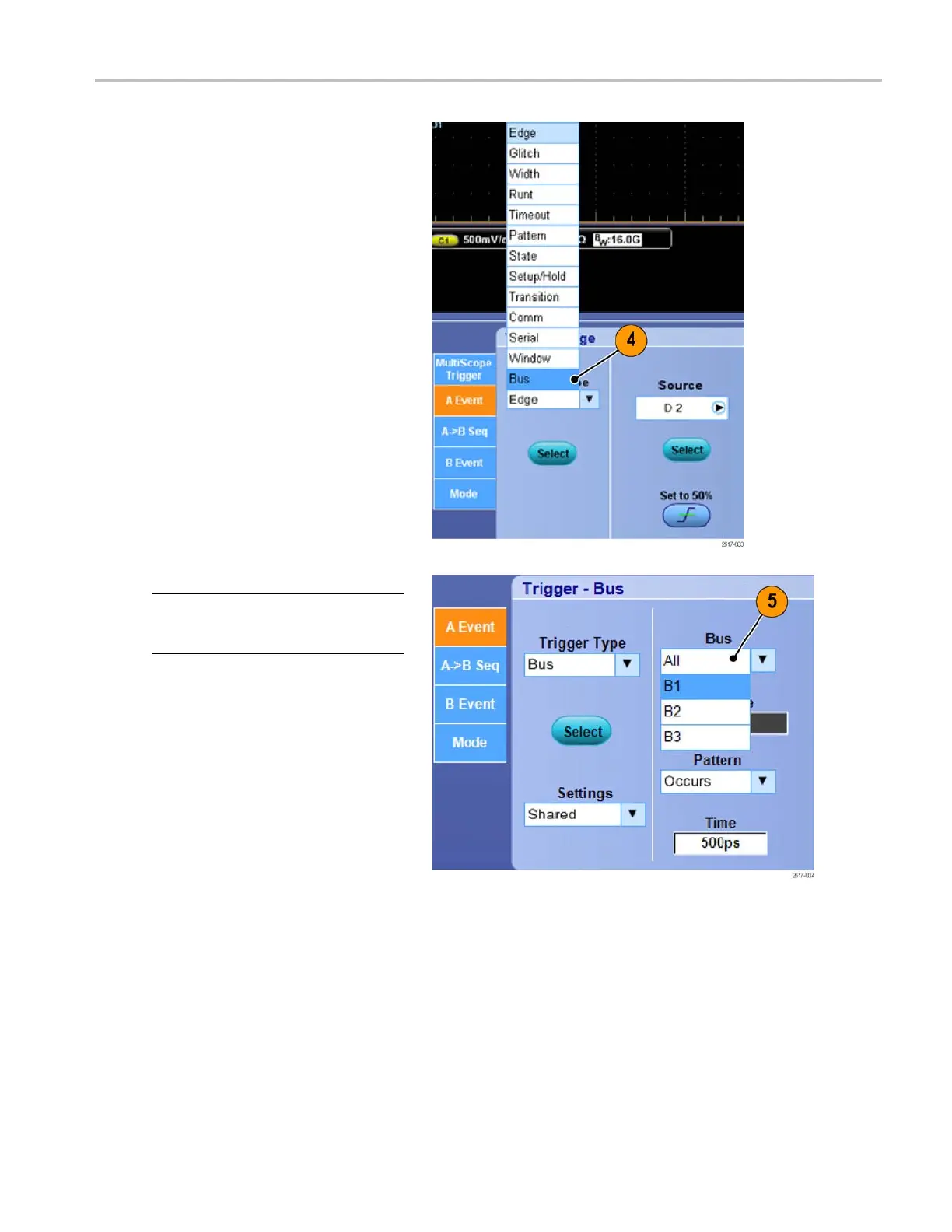

2. Select the A E vent tab.
80 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual
