Tektronix DSA70804B User Manual

Analyzing Wavef
orms
2. Select the math w aveform that you want
to define.

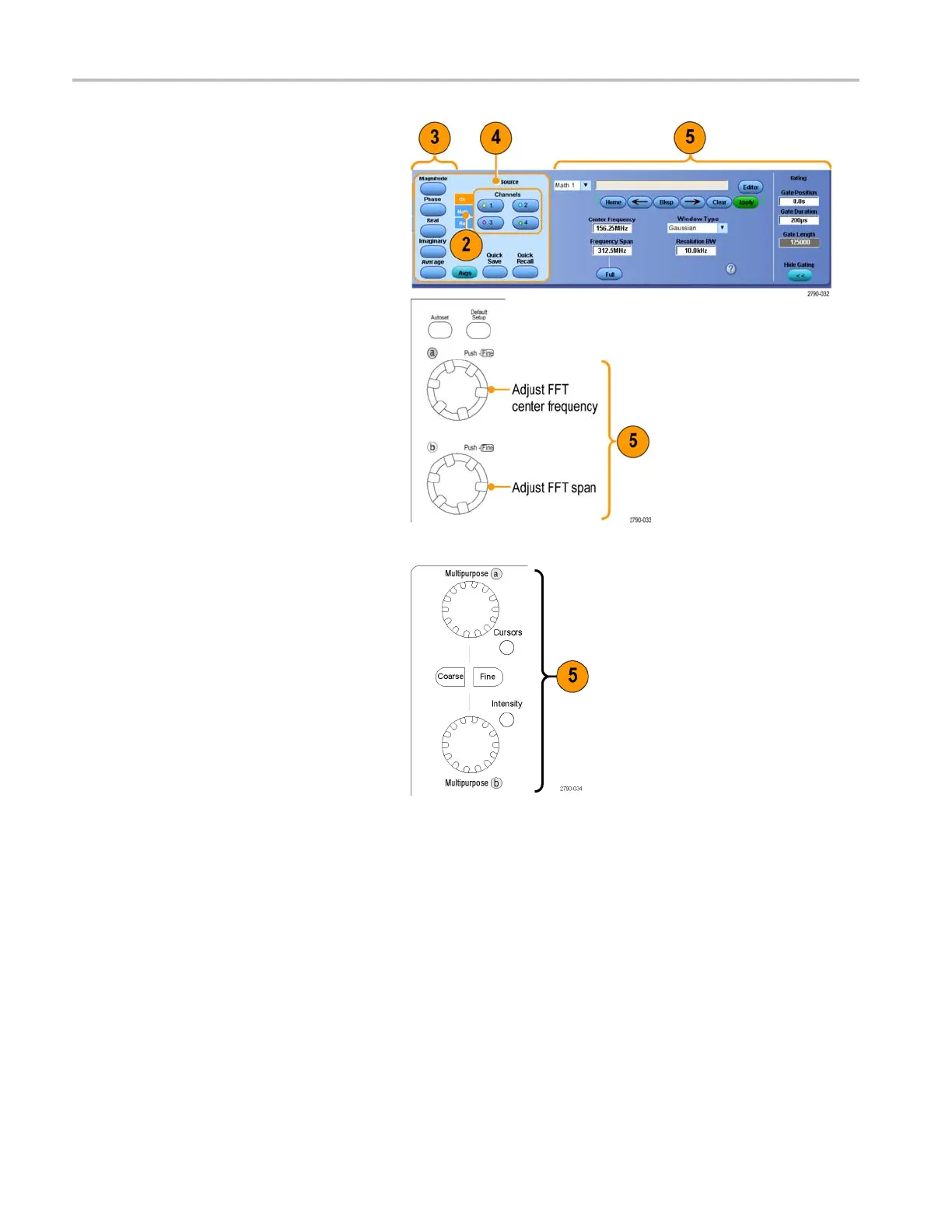

3. Click the type of spectral waveform
that you want t
o create. To redefine a
waveform, click Clear.
4. Select the source waveform.
5. Adjust the spectral waveform, using the
controls in the Spectral Setup control
window and u
se the multipurpose knobs.
MSO70000/C, DSA70000B/C , DPO70000B/C, and DPO7000 Series
MSO5000 and DPO5000 Series
130 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual
