Install Your Ins
trument

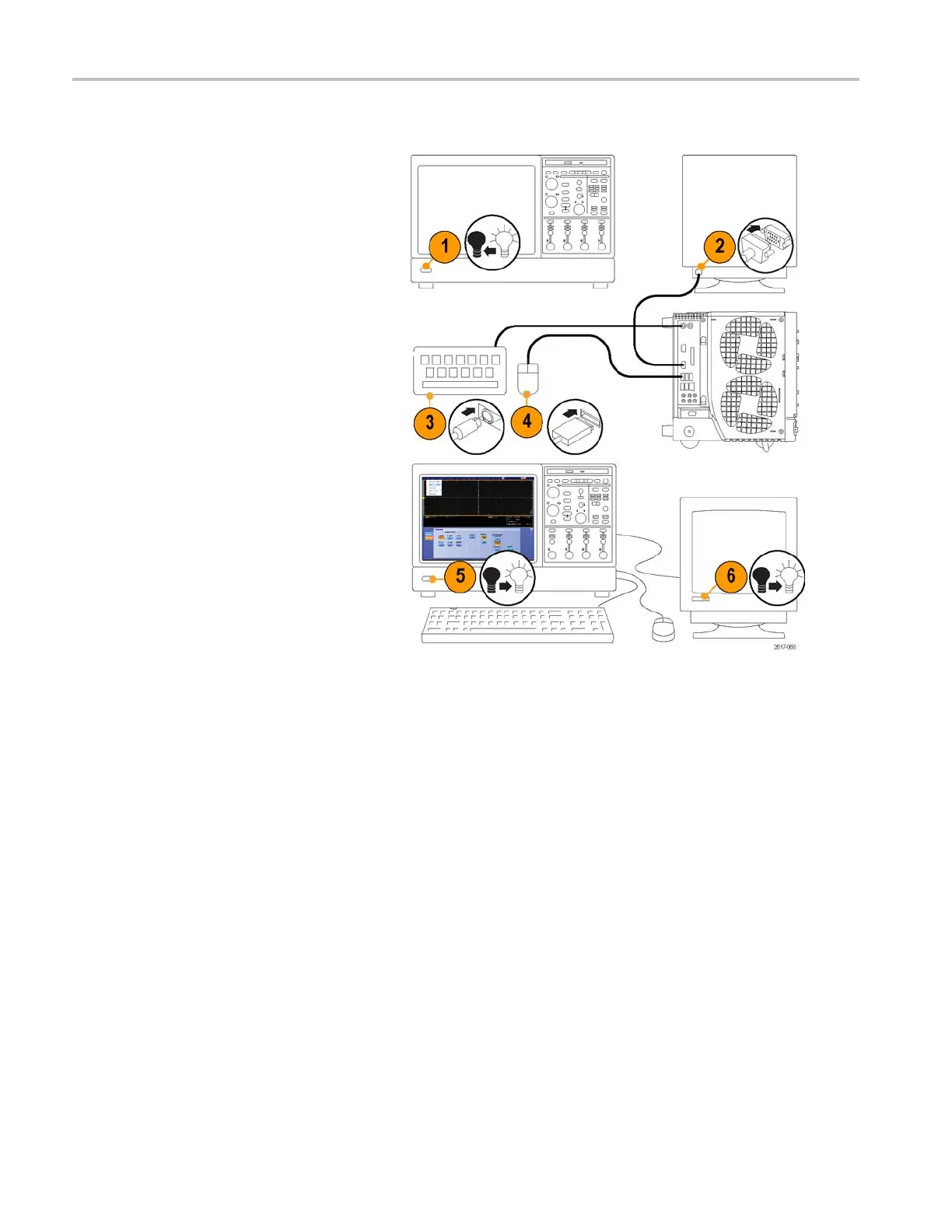

DPO7000 Models
1. Turn off power
.
2. Connect secon
d monitor.
3. Connect key
board.
4. Connect mou
se.
5. Turn on in
strument power.
6. Turn on mo
nitor power.

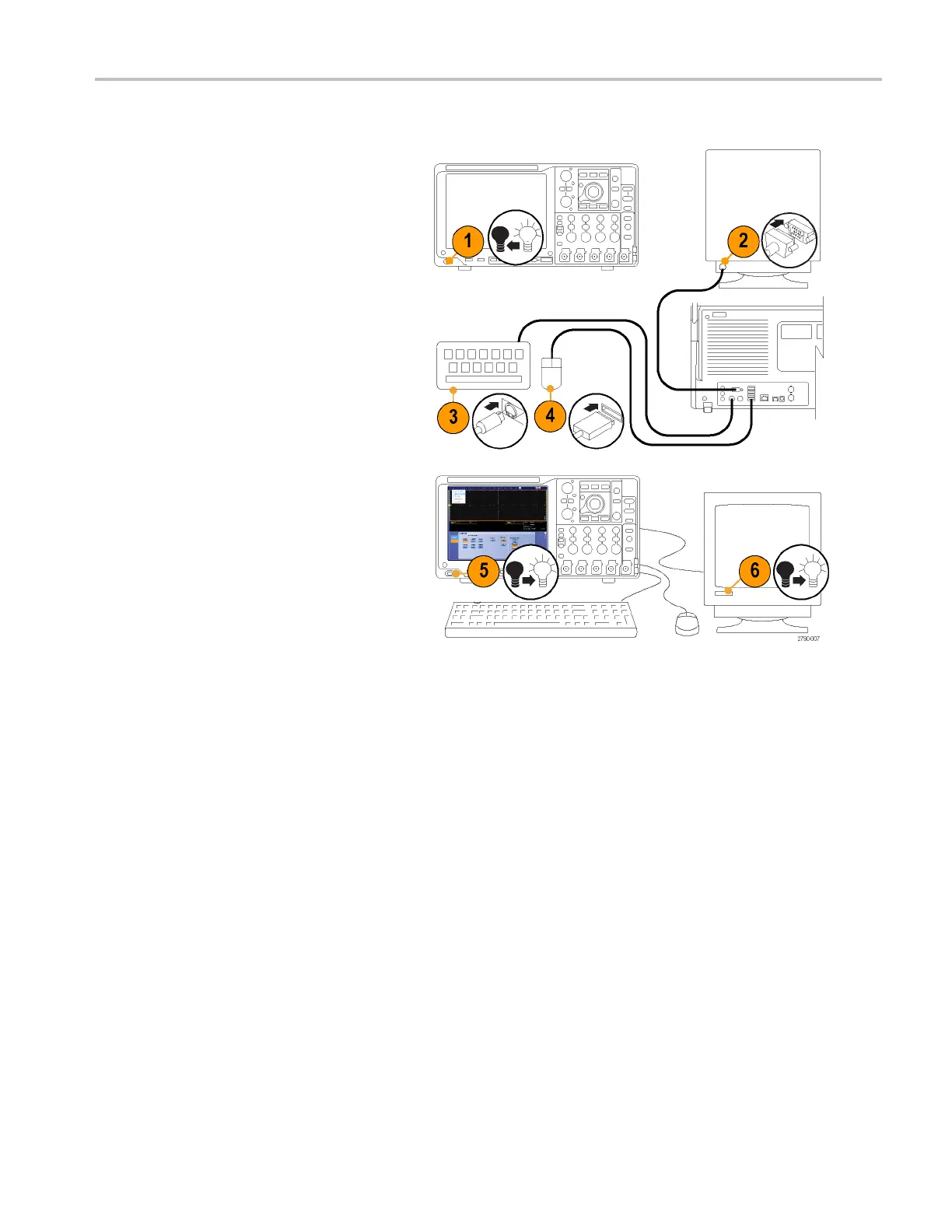

DPO7000 Series
12 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual
