Acquisition

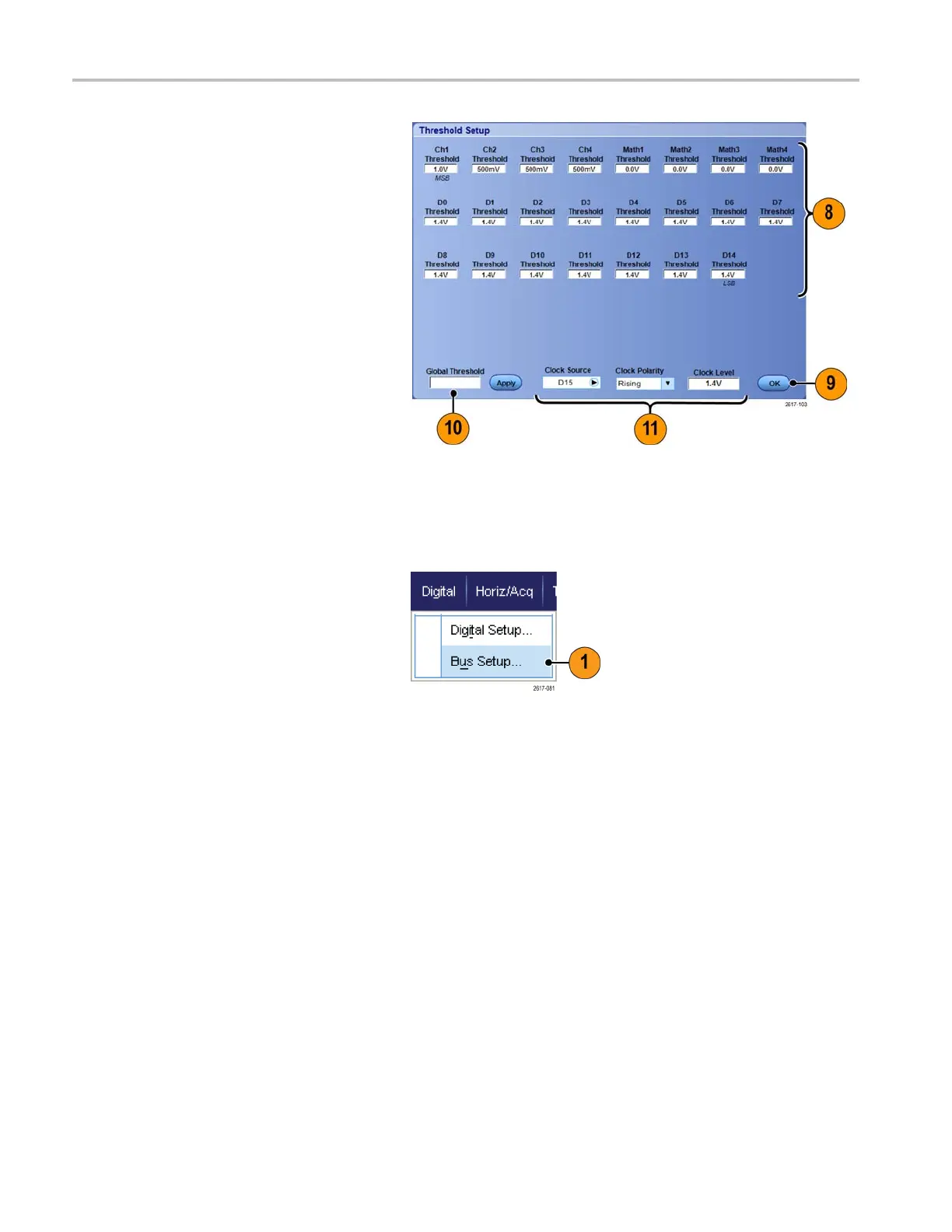

8. For each thresh
old you want to set,
double click the channel Threshold, and
enter the threshold using the keypad or
multipurpose
knobs.
9. When the desir
ed thresholds have been
set, click the OK button.
10. To set all channels to the same threshold,
double click Global Threshold and use
the keypad to
enter a threshold. Then
click Apply.
11. On MSO 70000/C instruments, to set the
clock source and polarity, double click the
item and sel
ect from the displayed list.
To set the clock level, double click the
Clock Level, and enter the level using the
keypad or m
ultipurpose knobs.
Set Up Bus Display

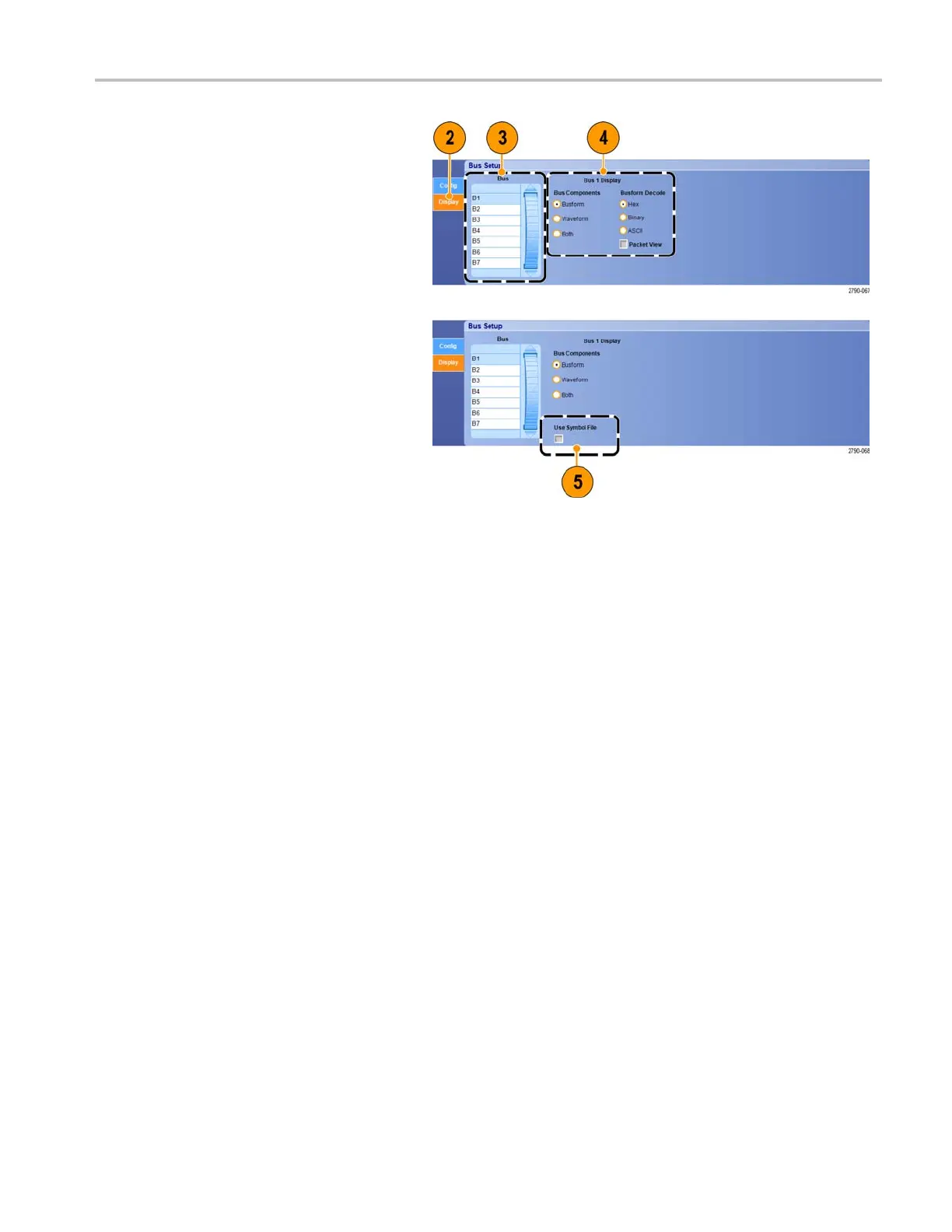

You can set the bus style and decoding. You can use digital channels in bus de finitions on MSO Series instruments only.
1. Select Digital > Bus Setup.
