Tektronix FG 504

F inish
C haracteristics

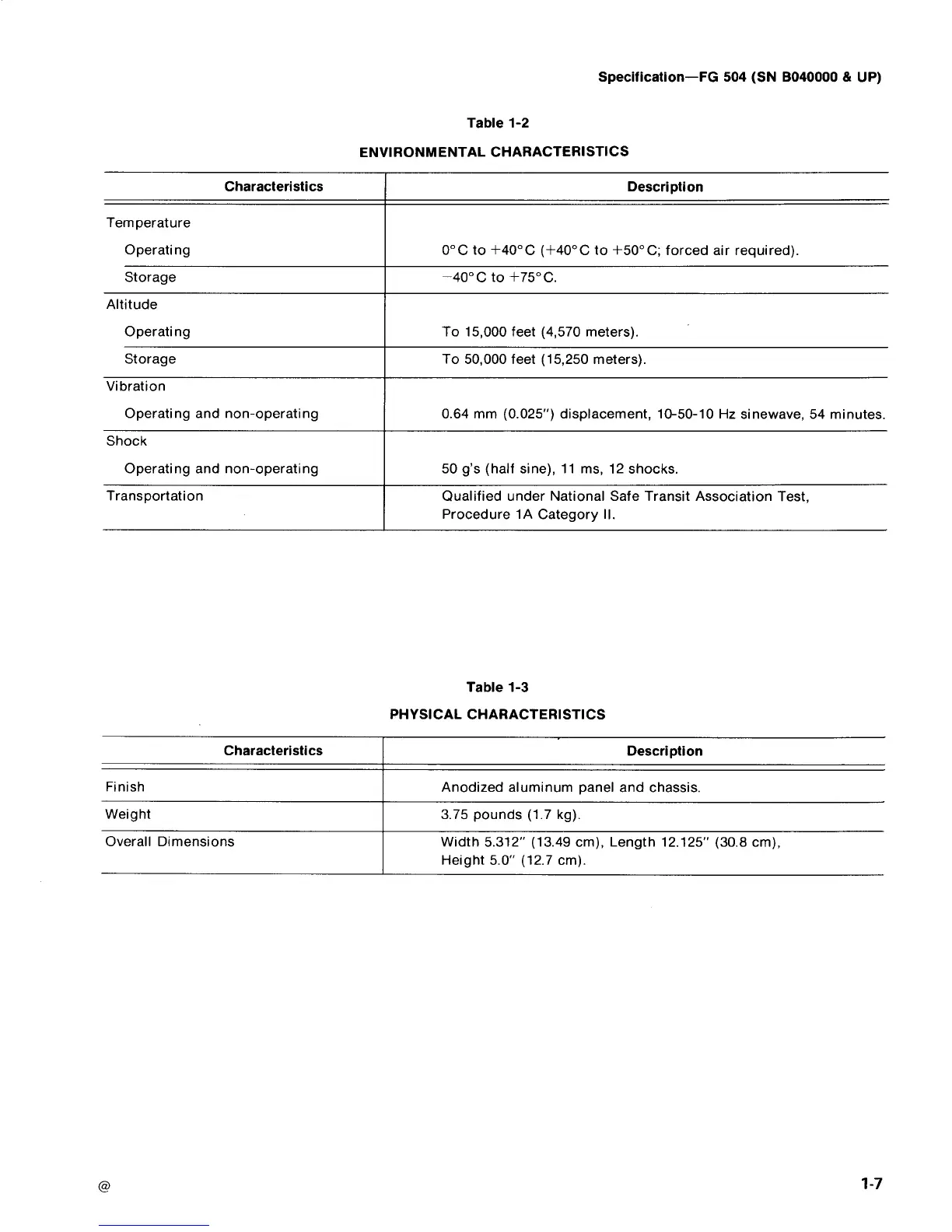

Table 1-2
ENVIRONMENTAL C HARACTERISTICS
W eight
Overall
Dimensions
Table 1-3
PHYSICAL C HARACTERISTICS
A nodized aluminum panel and chassis .
3 .75 pounds (1 .7 kg) .
S pecification-FG 504 (SN Β 040000 & UP)
Description
W idth 5 .312" (13 .49 cm), L ength 12 .125" (30 .8 cm),
H eight
5 .0" (12 .7 cm) .
C haracteristics Description
Temperature
Operating 0°C to +40°C (+40°C to +50°C ; forced air required) .
Storage -40 1
C to +75 0 C .
Altitu de
Operating To
15,000 feet
(4,570
meters) .
Storage To 50,000 feet (15,250 meters) .
V ibration
Operating an d non-operating 0 .64 mm (0.025") d isplacement,
10-50-10
H
z sinewave, 54 minutes .
Shock
O perating and non-operating 50 g's (half sine), 11 ms, 12 shocks .
Transportation Qualified under N ational Safe Transit
Association Test,
P rocedure 1 Α Category ΙΙ .
