Getting Started
Travel Case
The travel case is a recommended accessory for the TCPA300/400 Amplifiers.
The travel case includes room to store one amplifier and two TCP300A/400 Series
Current Prob
es, one of each size. (For example, you can store a TCP305A and
a TCP303 probe.) A compartment is included to store associated cables and
terminations. (See Figure 4.)

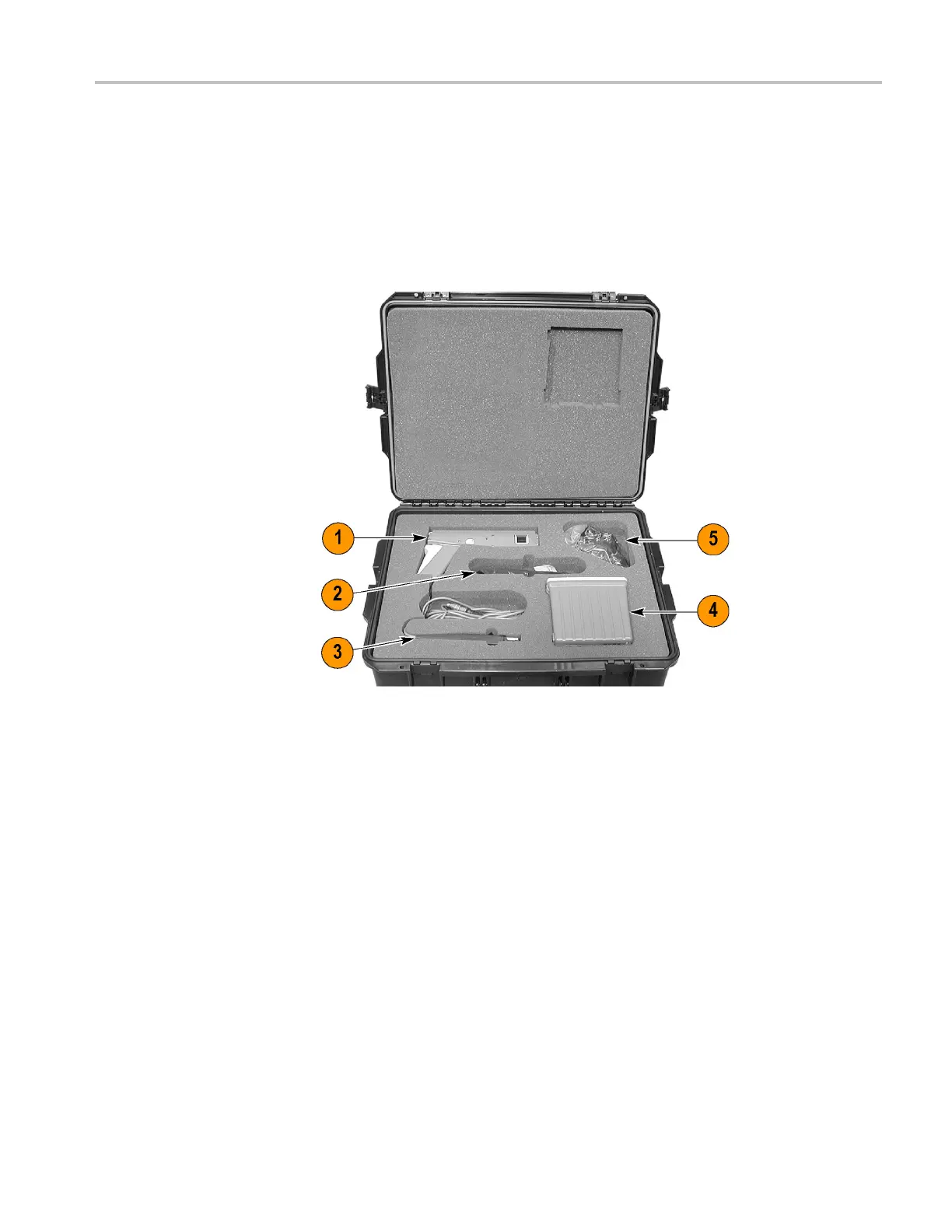

Figu
re 4: Equipment locations in the travel case
1. Larg
e current probe
2. Probe holders
3. Small current probe
4. Amplifier
5. Cables and terminations
TCPA300/400 Amplifiers and TCP300A/400 Series Current Probes User Manual 7
