Performance Tests
1–86
TDS 500D, TDS 600C, TDS 700D & TDS 714L Performance Verification and Specifications
PAL signal
source
Oscilloscope
75 W cable
75 W terminator
Output

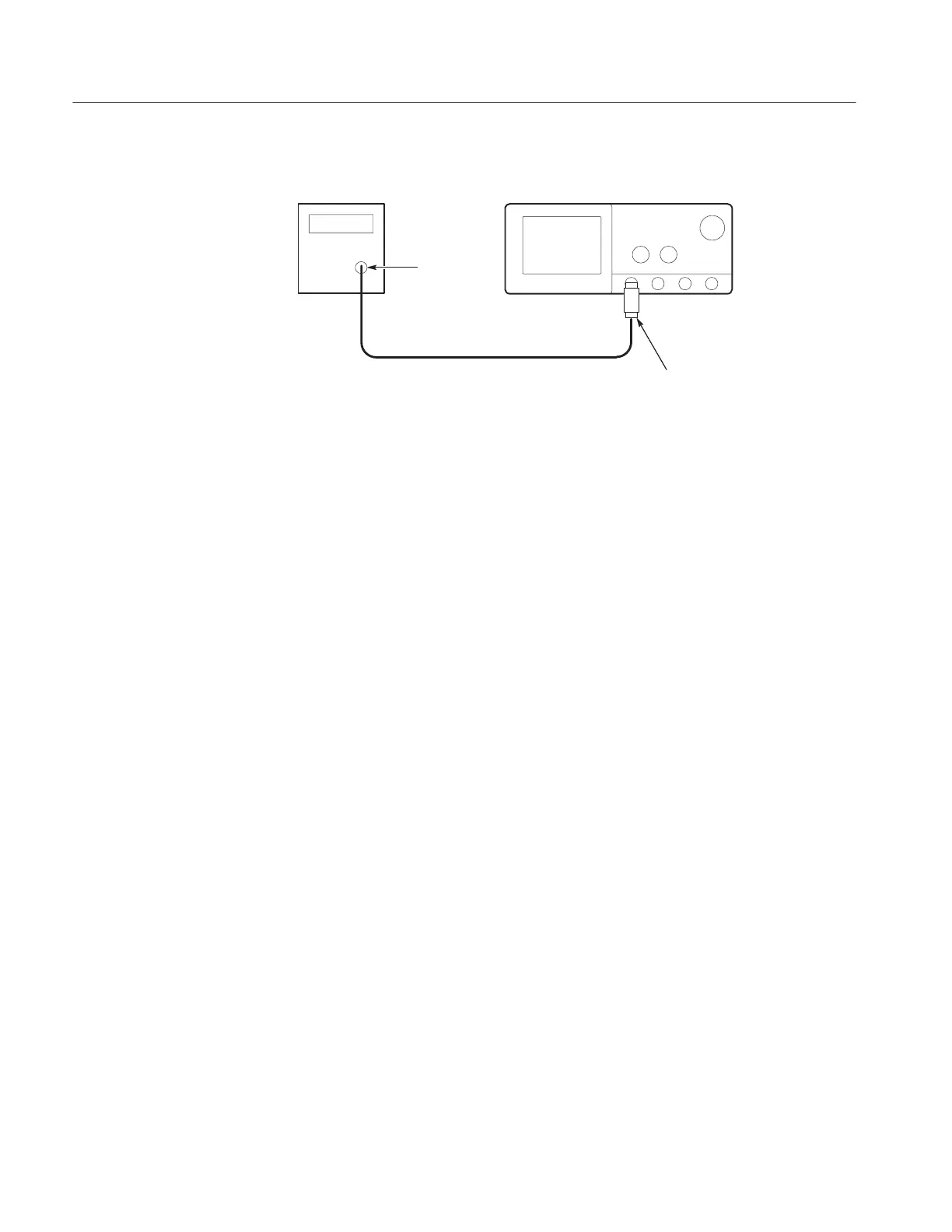

Figure 1–34: Line count accuracy test hookup
H Press the main-menu Trigger Position.
H Press the side-menu to Set to 50%.
H Press the main-menu to Horiz Pos.
H Press the side-menu to Set to 50%.
H Use the HORIZONTAL POSITION knob to move the falling edge
of the sync pulse to two divisions to the left of center screen. See
Figure 1–35.
